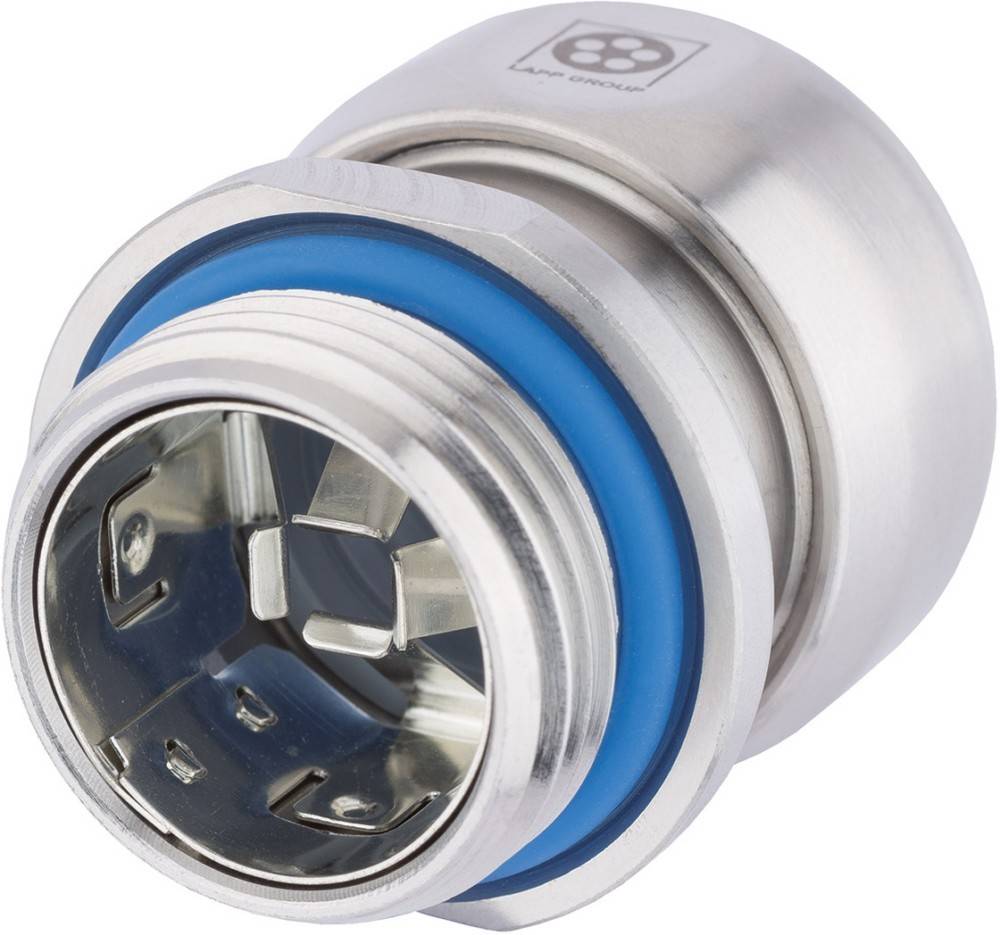

LAPP 53806724 Cable gland M20 Stainless steel Stainless steel 5 pc(s)
EAN:
Part number:
Item no:
Product type
Cable gland
External thread
M20
Material
Stainless steel
Clamp Ø
7 mm
Terminal Ø (max.)
12.5 mm
Datasheet (PDF)
Number (Package size 5 pc(s))
Total (€ 29.41 / piece)
€ 147.05
plus VAT.
14-day return policy included
Highlights & Details
SKINTOP ® INOX screwed cable gland
- Corrosion-resistant
- Corrosion-resistant
- Smooth surfaces
Technical specifications
- Product type
Cable gland
- Factory colour
Stainless steel
- External thread
M20
- Material
Stainless steel
- Clamp Ø
7 mm
- Terminal Ø (max.)
12.5 mm
- Thread length
8 mm
- Min. temperature
-40 °C
- Max. temperature
+100 °C
IP68 (up to 10 bar)
- Spanner size
24 mm
- Certification marks
DIN EN ISO 14159; DIN EN 1672 - 2; ECOLAB
- Halogen-free
No
- Content
5 pc(s)
- RoHS-compliant
Yes
- Manufacturer part #
53806724
- Type
SKINTOP® INOX SC M 20
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1500863 LAPP 53806724 Cable gland M20 Stainless steel Stainless steel 5 pc(s)
User & Safety Instructions
User & Safety Instructions 1500863 LAPP 53806724 Cable gland M20 Stainless steel Stainless steel 5 pc(s)
Description
For use in the spray zone in food production.
