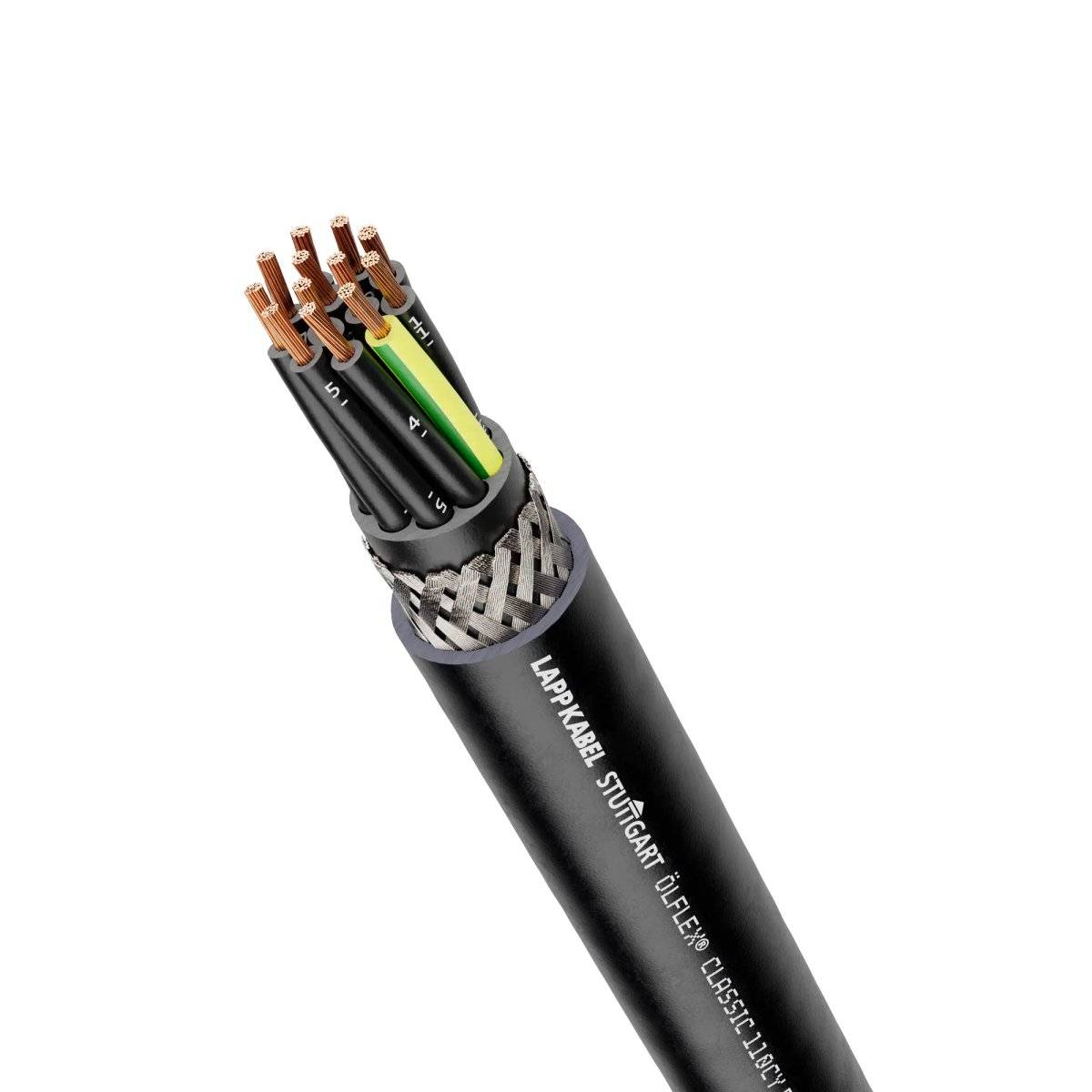

Black cable with the marking 'LAPP CABLE ÖLFLEX CLASSIC 110 CY 5G1.0 (0.61 IN)' and CE marking.

Black cable with the marking 'LAPP CABLE ÖLFLEX CLASSIC 110 CY 5G1.0 (0.61 IN)' and CE marking.

Image similar

LAPP

Product type

Control lead

No. of leads

4 x

Cross section (each core)

0.75 mm²

Cable type

ÖLFLEX® CLASSIC 110 CY BLACK

Outside Ø

11.40 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri 13 Nov

16 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Set(s)

Total (1 m = € 3.38)

€ 1,689.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Ölflex ® CLASSIC 110 CY BLACK 0.6/1kV PVC control cable

EMC-conforming
Number coded
Can also be used in the open

Technical specifications

Product type: Control lead

No. of leads: 4 x

Content: 500 m

Cross section (each core): 0.75 mm²

Cable features: Shielded
UV-resistant

Cable type: ÖLFLEX® CLASSIC 110 CY BLACK

Outside Ø: 11.40 mm

Packaged: Yes

Bend radius (no. of ODs for fixed installation): 6

Bend radius (no. of ODs for flexible installation): 20

Manufacturer part #: 1121236/500

Factory colour: Black

Insulation material: PVC

Insulation: PVC

Core layout: Finely stranded according to VDE 0295, Class 5/IEC 60228 Cl.5

Material (details): PVC

Sold per metre: No

Nominal voltage: 1000 V

Nominal voltage U0: 600 V

Certification marks: In accordance with VDE 0250-1 and HD627 S1

Test voltage: 4000 V

Cross section: 4 x 0.75 mm²

Max. temperature range (flexible installation): +70 °C

Min. temperature range (flexible installation): -5 °C

Max. temperature range (fixed installation): +80 °C

Min. temperature range (fixed installation): -40 °C

Type: 1121236/500

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 1544012 LAPP ÖLFLEX® CLASSIC 110 CY BLACK Control lead 4 x 0.75 mm² Black 1121236/500 500 m

User & Safety Instructions

User & Safety Instructions 1544012 LAPP ÖLFLEX® CLASSIC 110 CY BLACK Control lead 4 x 0.75 mm² Black 1121236/500 500 m

Description

Application in plant engineering, machine engineering, heating and air-conditioning technology, as well as power plant technology. Also in EMC-critical surroundings (Electromagnetic compatibility). For fixed laying as well as also for flexible applications with free, not constantly recurring movement without tensile stress. Used also in the open under consideration of the temperature range, suitable for laying directly in the ground.. High electrical safety through 4 kV test voltage. Flame-resistant according to IEC 60332. UV and weather-resistant.

This text is machine translated.

Description

Application in plant engineering, machine engineering, heating and air-conditioning technology, as well as power plant technology. Also in EMC-critical surroundings (Electromagnetic compatibility). For fixed laying as well as also for flexible applications with free, not constantly recurring movement without tensile stress. Used also in the open under consideration of the temperature range, suitable for laying directly in the ground.. High electrical safety through 4 kV test voltage. Flame-resistant according to IEC 60332. UV and weather-resistant.

This text is machine translated.
