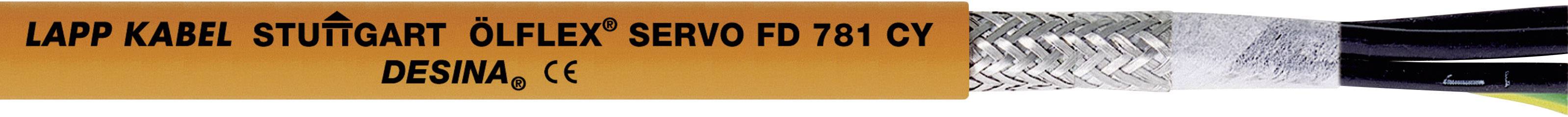

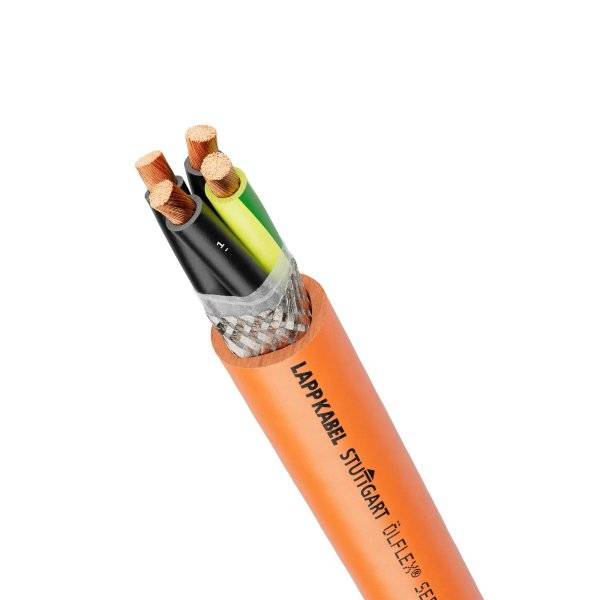

LAPP ÖLFLEX® SERVO FD 781 CY Servo lead 4 G 4 mm² Orange 0036322/50 50 m
EAN:
Part number:
Item no:
Product type
Servo lead
No. of leads
4 G
Cross section (each core)
4 mm²
Cable type
ÖLFLEX® SERVO FD 781 CY
Outside Ø
13.50 mm
Datasheet (PDF)
Highlights & Details
Ölflex ® SERVO FD 781 CY
Technical specifications
- Product type
Servo lead
- No. of leads
4 G
- Content
50 m
- Cross section (each core)
4 mm²
- Cable features
Oil-resistant
Shielded
- Cable type
ÖLFLEX® SERVO FD 781 CY
- Outside Ø
13.50 mm
- Packaged
Yes
- Wire ID code
Black with white numbers according to VDE 0293-1
- Bend radius (no. of ODs for fixed installation)
4
- Bend radius (no. of ODs for flexible installation)
7
- Manufacturer part #
0036322/50
- Factory colour
Orange
- Insulation material
PVC
- Insulation
PVC
- Core layout
Extra-fine strands according to VDE 0295, Class 6/IEC 60228. 6
- Material (details)
PVC
- Sold per metre
No
- Nominal voltage
1000 V
- Nominal voltage U0
600 V
- Test voltage
4000 V
- Cross section
4 G 4 mm²
- Max. temperature range (flexible installation)
+70 °C
- Min. temperature range (flexible installation)
-5 °C
- Max. temperature range (fixed installation)
+80 °C
- Min. temperature range (fixed installation)
-40 °C
- Type
0036322/50
Documents & Downloads
Datasheet
Datasheet 1549942 LAPP ÖLFLEX® SERVO FD 781 CY Servo lead 4 G 4 mm² Orange 0036322/50 50 m
User & Safety Instructions
User & Safety Instructions 1549942 LAPP ÖLFLEX® SERVO FD 781 CY Servo lead 4 G 4 mm² Orange 0036322/50 50 m
Description
Connecting wire between frequency converter and motor. For power circuits within the machine wiring. In dry, damp or wet rooms at normal mechanical load In the open air without UV protection and only in accordance with the temperature range.
