Buy Laserliner ARCOMASTER 60 075.131A Digital goniometer 600 mm 220 °

Digital angle gauge with screen display and spirit level. Shows 28.5 degrees. Casing made of silver metal and black plastic.

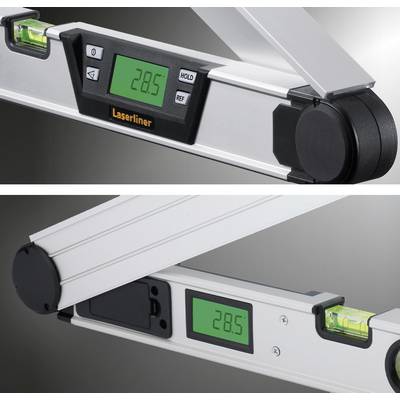

Digital protractor with a green display showing '28.5' degrees. The tool has a spirit level and is placed on a grey surface.

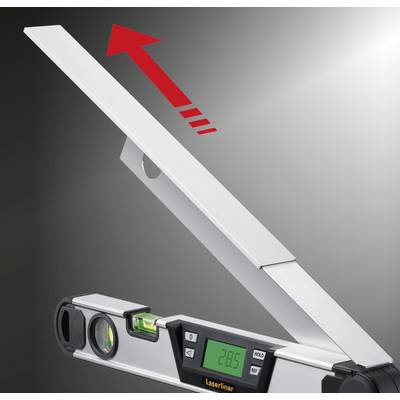

Electronic angle measure with digital display and spirit level, showing an upward angle. Red arrow indicates rising angle.

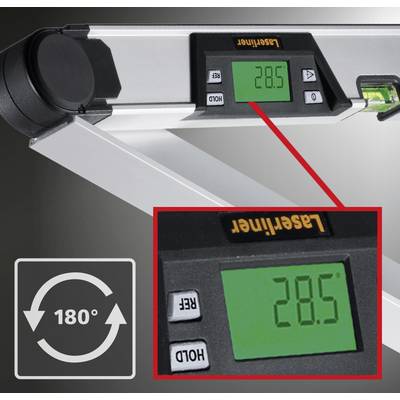

Protractor with digital display shows 28.5 degrees. Symbol at bottom left indicates '180°', green spirit level on top right.

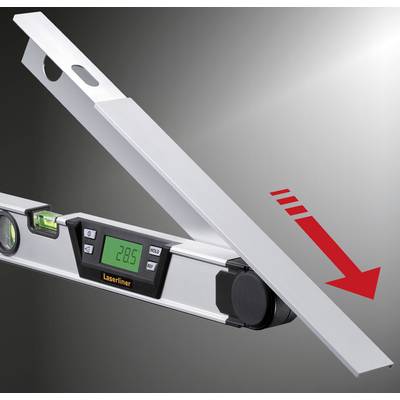

Digital inclinometer measures the angle of a metal beam, display shows '28.5', red arrow indicates slope.

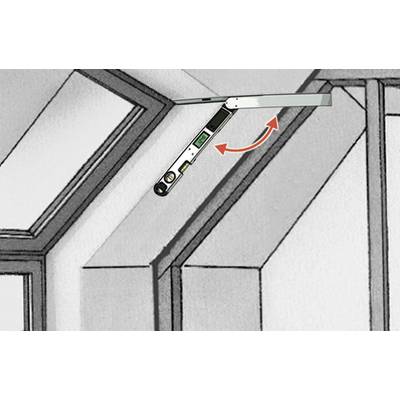

A digital protractor measures the angle between two walls in a building. A red arrow indicates the rotation function.

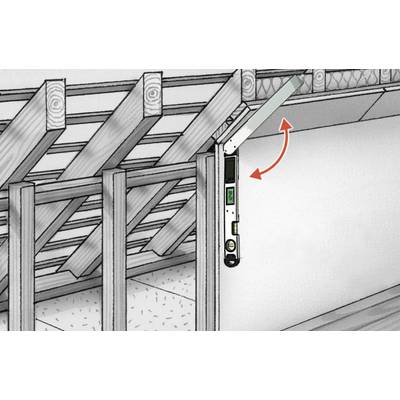

Digital spirit level measures the angle of inclination of a roof joist in a half-finished loft.

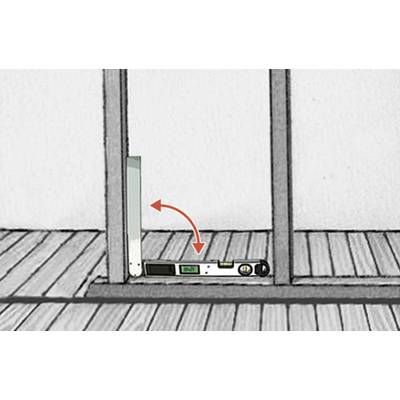

'Illustration of a digital inclinometer on a frame showing vertical and horizontal alignment.'

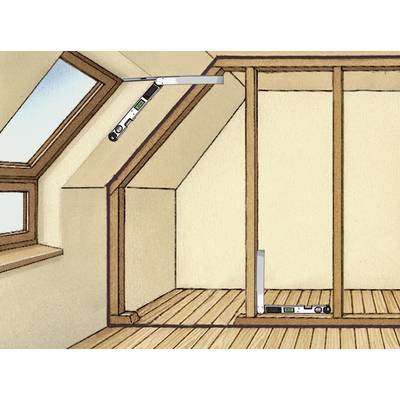

'Illustration of an attic with wooden beams and a digital measuring device for checking the inclination of the beam structure.'

1/10

Fast track dispatch on Mon, 14 Sep

8 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 163.86 / piece)

€ 163.86

plus VAT.

Only 8 Piece(s) available

Report legal concerns

Technical specifications

Display accuracy: 0.1 °
IP54 Water and dust protection

Product type: Digital goniometer

Side A: 600 mm

Angle setting (max.): 220°

Accuracy: ± 0.2°

Material: Aluminium

Length: 650 mm

Width: 40 mm

Height: 57 mm

Dim: (L x W x H) 650 x 40 x 57 mm

Weight: 1005 g

: Manufacturer's standards (no certificate)

Type: ARCOMASTER 60

Power supply (details): 2 x 1.5 V AA batteries type AA

Reading range: 0 - 220°

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 821491 Laserliner ARCOMASTER 60 075.131A Digital goniometer 600 mm 220 °

Information

Information 821491 Laserliner ARCOMASTER 60 075.131A Digital goniometer 600 mm 220 °

Warranty Terms

Warranty Terms 821491 Laserliner ARCOMASTER 60 075.131A Digital goniometer 600 mm 220 °

Description

Digital electronic protractor with an additional integrated detachable bevel for measuring angles at places difficult to access. Two large illuminated LC- displays, the front diagonal and hence can also be read from above, a second display on the rear side for two-sided working. Both the displays can be rotated by pressing a button (flip-display). By means of other function keys the last angle measured can be retrieved. It can be used at all places where inner and outer angles of 0 - 220° need to be determined exactly. Whether measuring roof slopes, fitting furniture or windows at corners and edges.
