LD Systems LDXS400 PA amplifier RMS power per channel (at 4 Ohm): 200 W
EAN:
Part number:
Item no:
Number
Total (€ 284.87 / piece)
€ 284.87
plus VAT.
Only 4 Piece(s) available
LD sys. XS400 PA-end stage
Highlights & Details
- Power RMS/Max 2 x 100/200 W.
Technical specifications
- Power per channel (4Ω)
200 W
- Power per channel (8Ω)
100 W
- Max. frequency
20000 Hz
- Min. frequency
20 Hz
- Interfaces
XLR in
6.3 mm jack out
Audio CD in
Screw terminals
SPK type socket
- Weight
3.4 kg
- Width
48.3 cm
- Height
4.4 cm
- Product type
PA amplifier
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1077787 LD Systems LDXS400 PA amplifier RMS power per channel (at 4 Ohm): 200 W
Description
Our Class D power amplifier technology enables high performance to be implemented efficiently in a confined space without developing excessive loss energy. The XS400 is designed with only 1 U and 3.4 kg weight for all professional applications, where easy transport or parking space are important, whether mobile or in fixed installations.
This text is machine translated.
This text is machine translated.
Features
- Protective circuits: Soft start, short circuit, DC current, overheating, overvoltage

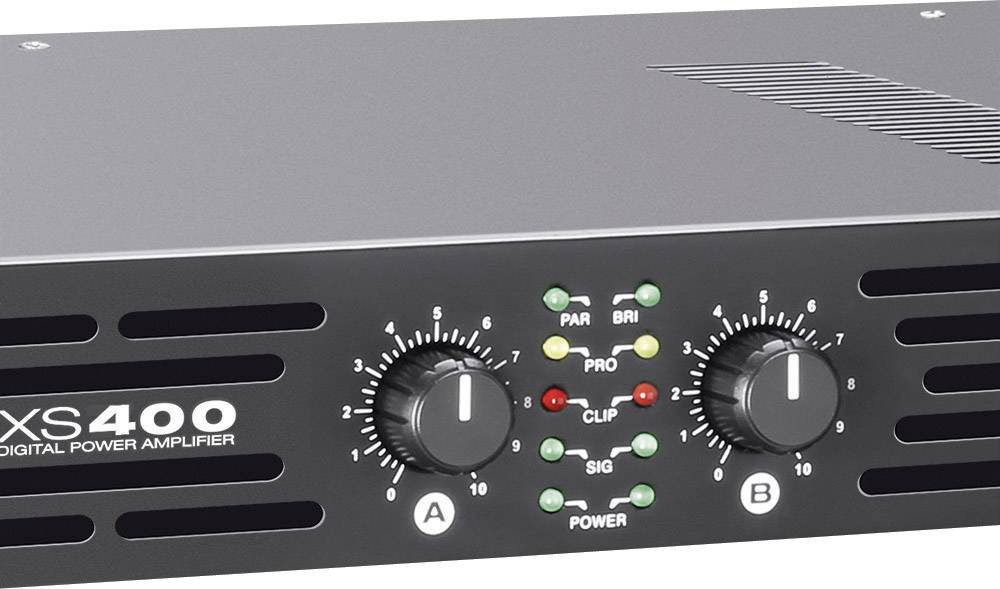

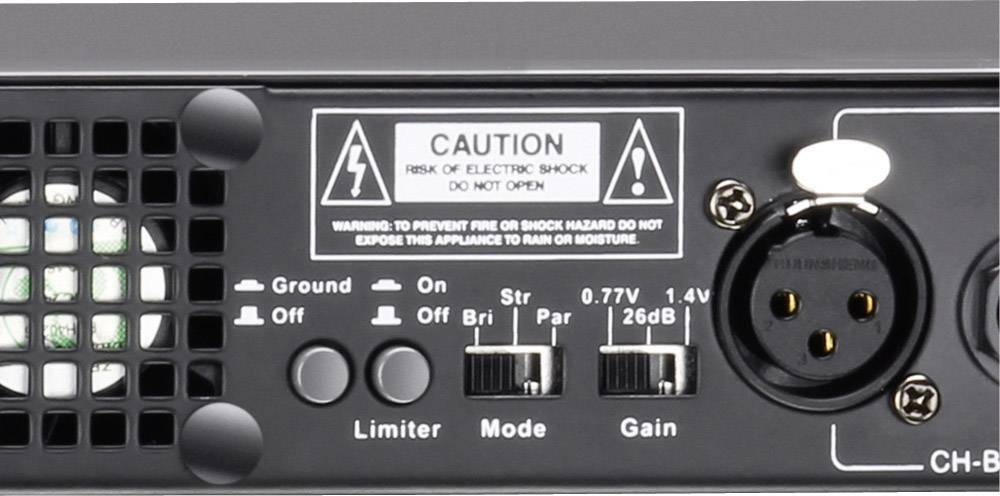

- Controls: On/Off, Volume, Mode (bridged/parallel/stereo), Ground Lift, Limiter, Gain
- Display elements: Power, signal, clip, protect, mode (bridged/parallel)

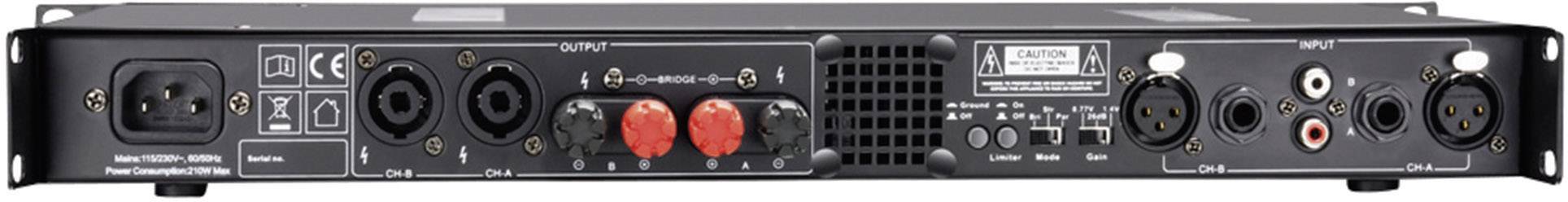

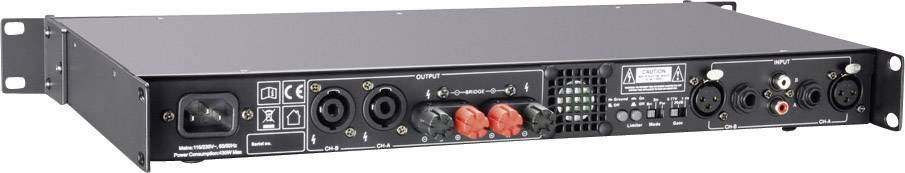

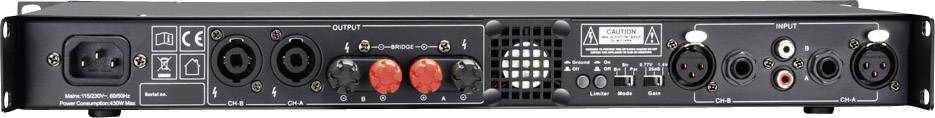

- Line-input connections: 2 x XLR, 2 x 6.3 mm jack, cinch
- Loudspeaker output connections: 2 x SPK, 2 x polar terminal
- Cooling: Low-noise fan.
