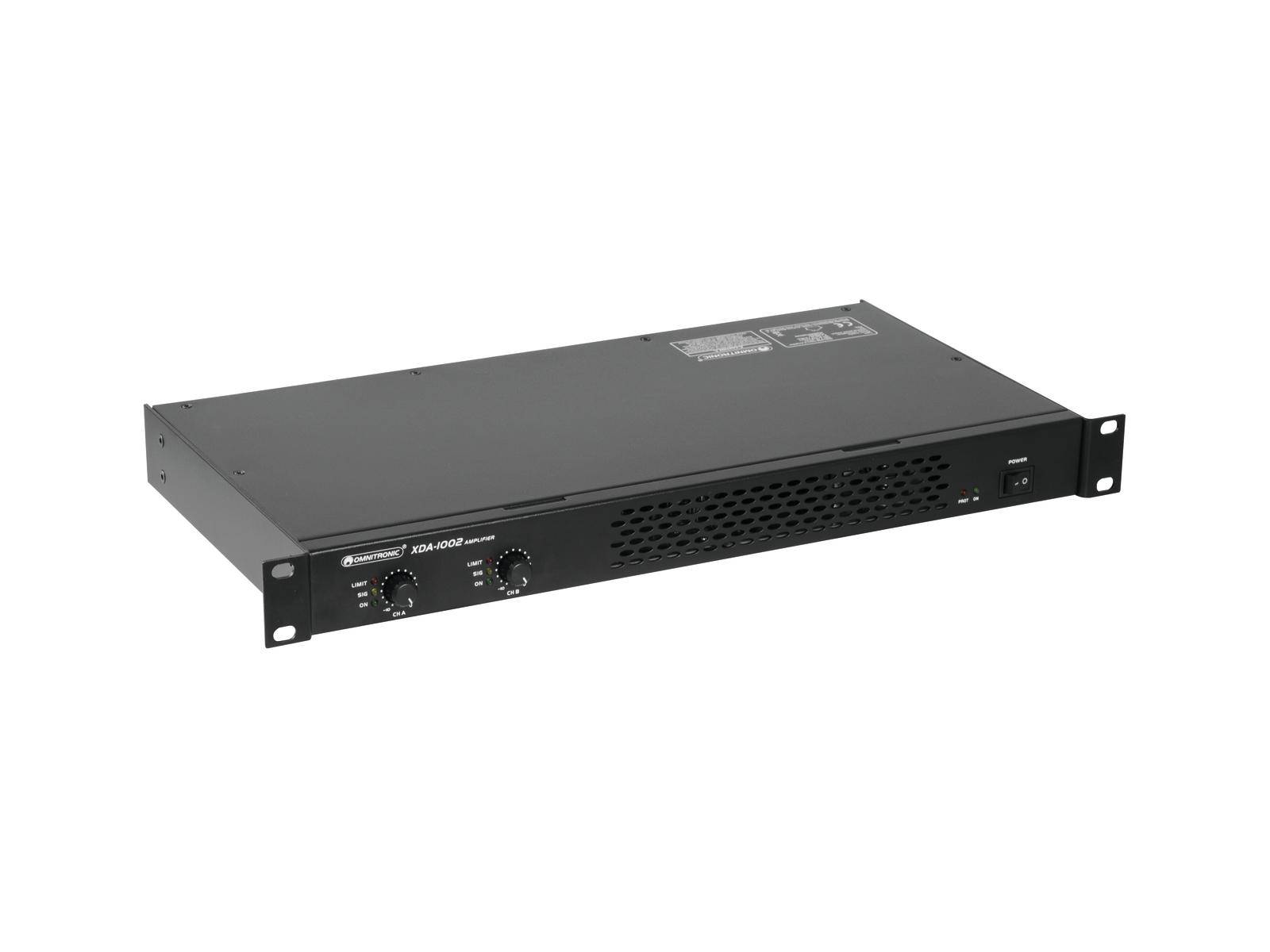

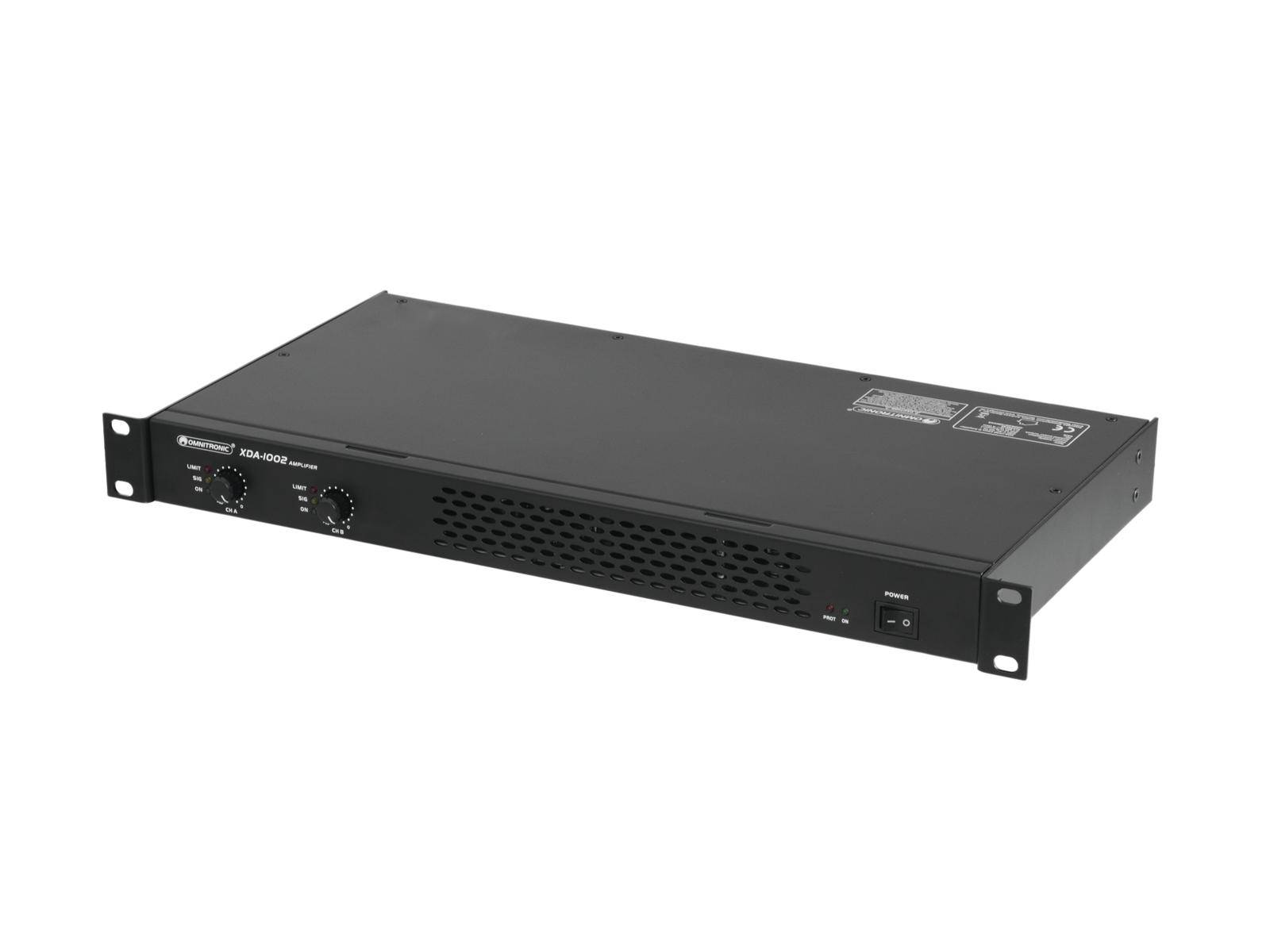

Buy Omnitronic XDA-1002 PA amplifier RMS power per channel (at 4 Ohm): 510 W

1/5

50 Piece(s)

Sales and shipping:

Piece(s)

Total (€ 293.28 / piece)

€

Highlights & Details

Low weight and height by built-in switched-mode power supply
Loudspeaker input delay and auto-limiter
2 level control
Complete protective circuit package against short-circuit, overheating, DC voltage, switch-on impacts
This text is machine translated.

Power supply: 230 V AC, 50 Hz
Total connection value: 210 W (1/8 Power)
Stereo 4 Ohm 2 x 510 W
Stereo 8 Ohm 2 x 300 W
8 Ohm bridged 1 x 1000 W
Frequency range: 30-20,000 Hz
0.02 % distortion factor
Voltage amplification: 36 dB at 8 Ohm
Noise distance: 100 dB
Input impedance: 20 kOhm (symmetrical), 10 kOhm (asymmetrical)
Input sensitivity: 1.25 V RMS

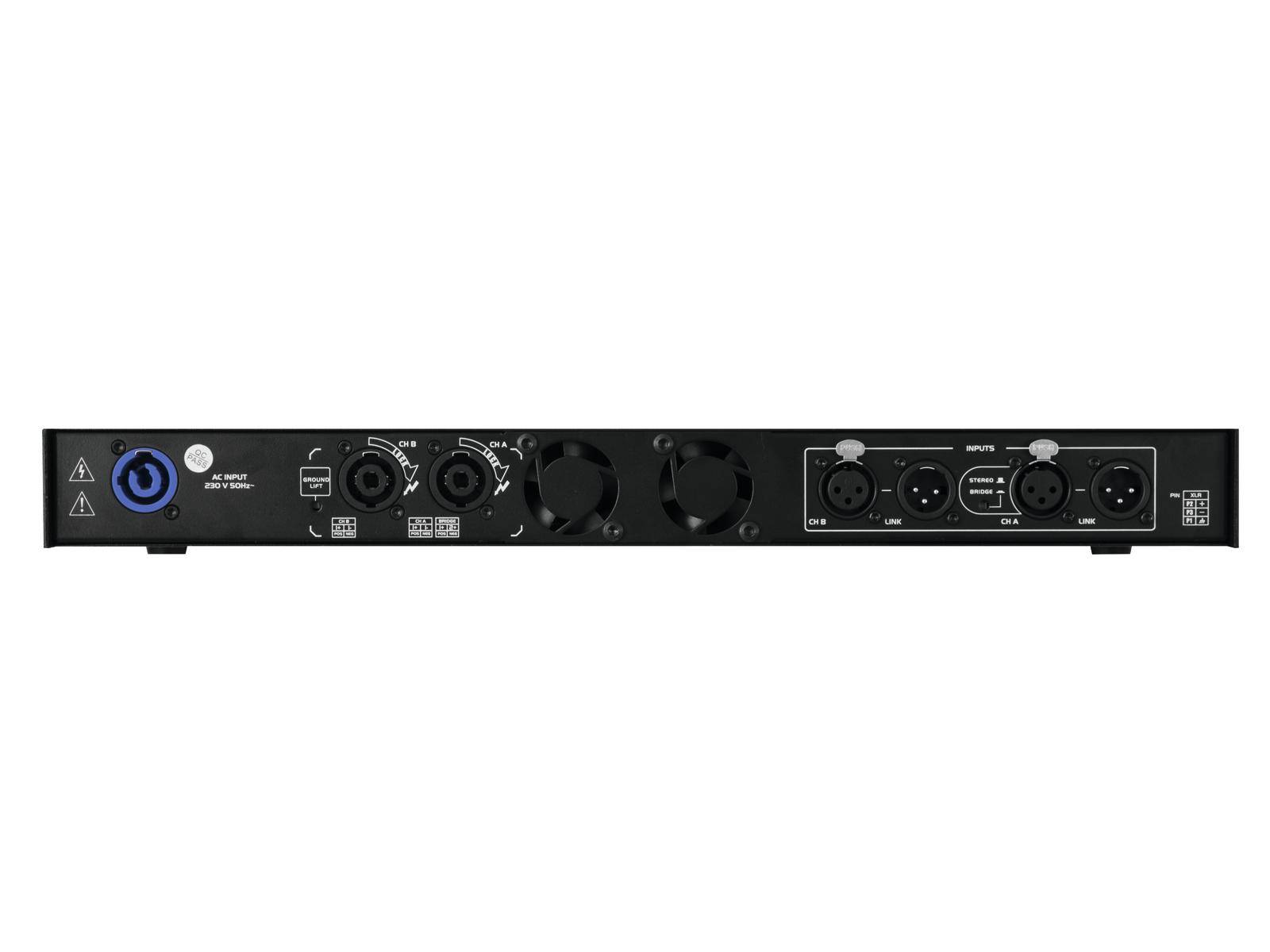

Connections Input: 2 x XLR
Output: 2 x speaker connections, 2 x loop-through output XLR
Circuit: Class D

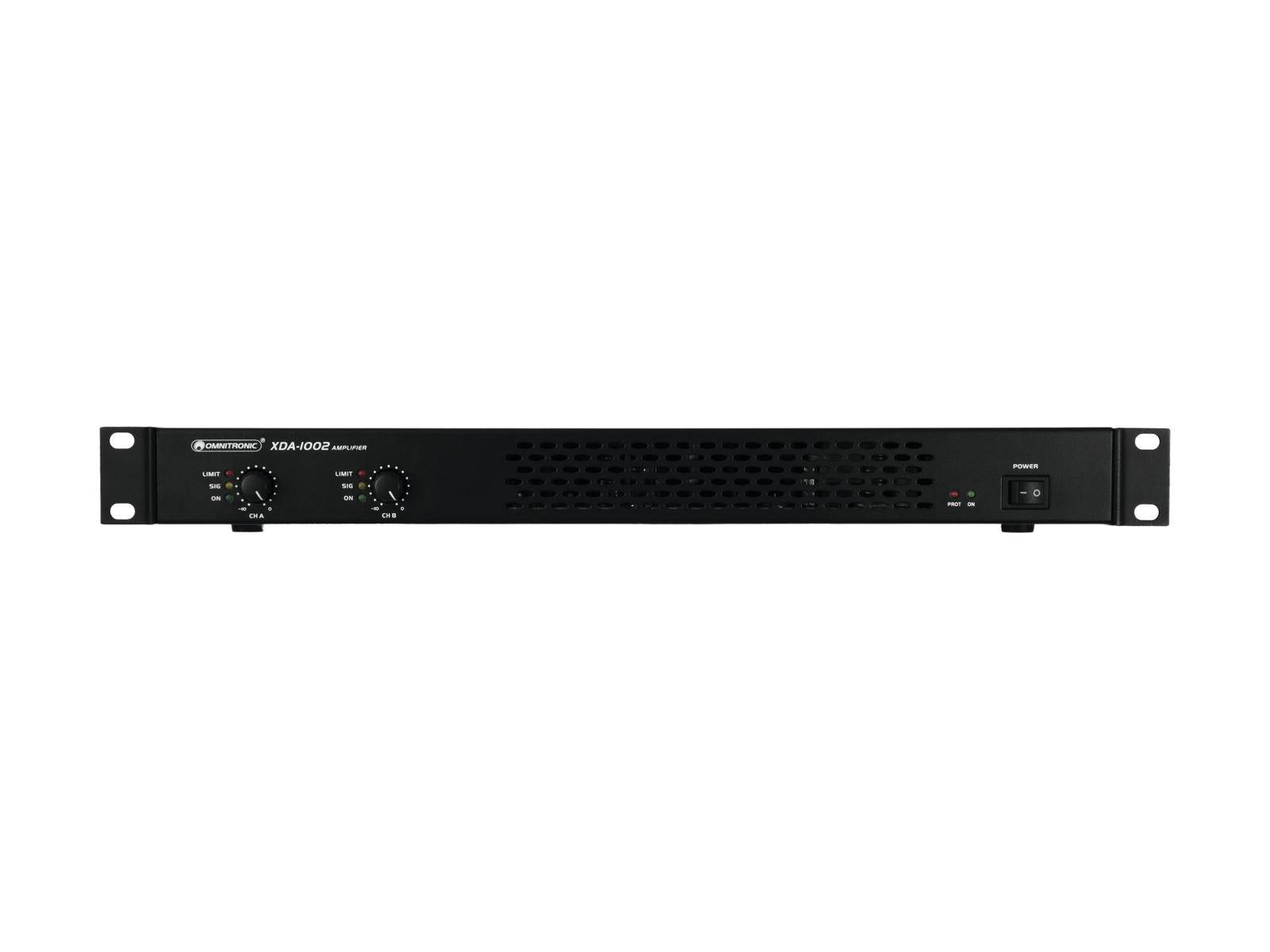

Controls: Power switch, volume control per channel, Mode Switch (Stereo/Bridge), Ground lift switch
LED-display: Protect, Limit, Signal, Power
Protective circuits: short circuit, overheating, DC voltage, switch-on impacts, soft-start
Construction: Steel chassis
Dimensions 240 x 483 x 44 mm (TxBxH): (19", 1 HE)
Weight: 4 kg.
Shipping weight: 4.65 kg

User & Safety Instructions 1529894 Omnitronic XDA-1002 PA amplifier RMS power per channel (at 4 Ohm): 510 W

Stereo-PA-amplifier Class-D architecture
Low weight and height by built-in switched-mode power supply
Loudspeaker input delay and auto-limiter
2 modes of operation adjustable (Stereo or bridge)
2 level control
LEDs for activated protective circuit (Protect), over-regulation (clip), Signal and Power
Complete protective circuit package against short-circuit, overheating, DC voltage, switch-on impacts
Ground elevator switch against ground loops
Fan cooled
Electronically balanced inputs via XLR panel jack with loop
Loudspeaker outputs via lockable speaker jacks
Rack installation with 1 Height unit
