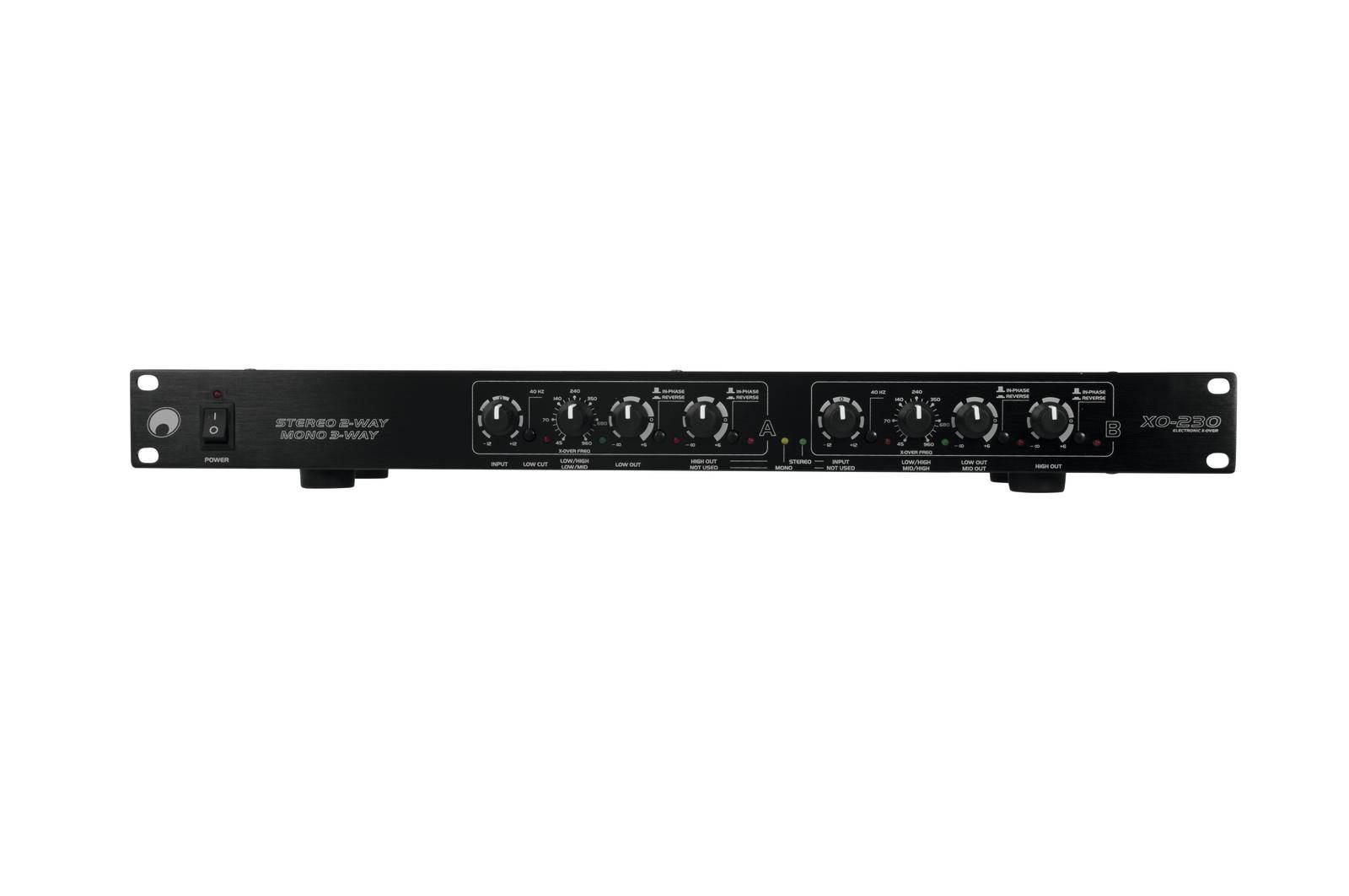

A 1U audio device rack with numerous rotary controls and connections on the front panel, suitable for use in audio setups.

A 1U audio device rack with numerous rotary controls and connections on the front panel, suitable for use in audio setups.

A black audio effects processor with multiple controls and inputs on the front panel, suitable for stereo sound adjustments.

Back of an audio amplifier with multiple input sockets, including XLR and jack connections, along with a power socket.

Back panel of an audio interface with various connections: XLR, MIDI, USB, power socket and audio outputs.

A black audio amplifier with multiple controls on the front panel, suitable for use in professional audio setups.

1/5

Omnitronic

Dispatches on Wed, 16 Sep

50 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 100.83 / piece)

€ 100.83

plus VAT.

Report legal concerns

Highlights & Details

Active crossover frequency.

2-way stereo or 3-way mono operation.
24 dB edge steepness/octave
Output level for each frequency range individually adjustable
Cut-off frequency adjustable
This text is machine translated.

Technical specifications

Power supply: 230 V AC, 50 Hz
Total connection value: 20 W
Steepness of 24 dB/octave
Operating modes: 2-way stereo or 3-way mono
Input: Mono/Stereo
Input impedance: 10/20 kOhm (unsym./sym.)
Output: Mono/stereo
Output impedance: 150 kOhm (unsym./sym.)
Connection sockets: XLR, 6.3 mm jack
Noise distance:> 100 dB
THD: 0.05%
Cross-talk:> 80 dB, -3dB
Cut-off frequency: 45 Hz - 9.5 kHz
Input control: ±12 dB
Control range:-~ to + 6 dB
Low Cut: 40 Hz, -3 dB
Phase adjustment: 0 to -180°
Dimensions (wxdxh): 483 x 152 x 48 mm
Weighs 1.8 kg
Shipping weight: 2.33 kg

No. of channels: 2-way coaxial

Interfaces: XLR out
6.3 mm jack out
6.3 mm jack in

Width: 48.3 cm

Depth: 15.2 cm

Height: 4.8 cm

Dim: (W x H x D) 48.3 x 4.8 x 15.2 cm

Weight: 1.8 kg

Product type: 19" crossover

Documents & Downloads

User & Safety Instructions

European union

User & Safety Instructions 1529922 Omnitronic XO-230 2-way coaxial 19" crossover

Description

Features

2-way stereo or 3-way mono operation.
24 dB edge steepness/octave
Output level for each frequency range individually adjustable
Cut-off frequency adjustable
Low-cut switch
Phase can be switched
XLR inputs and 6.3-mm jack outputs
Rack installation, 1 HE
