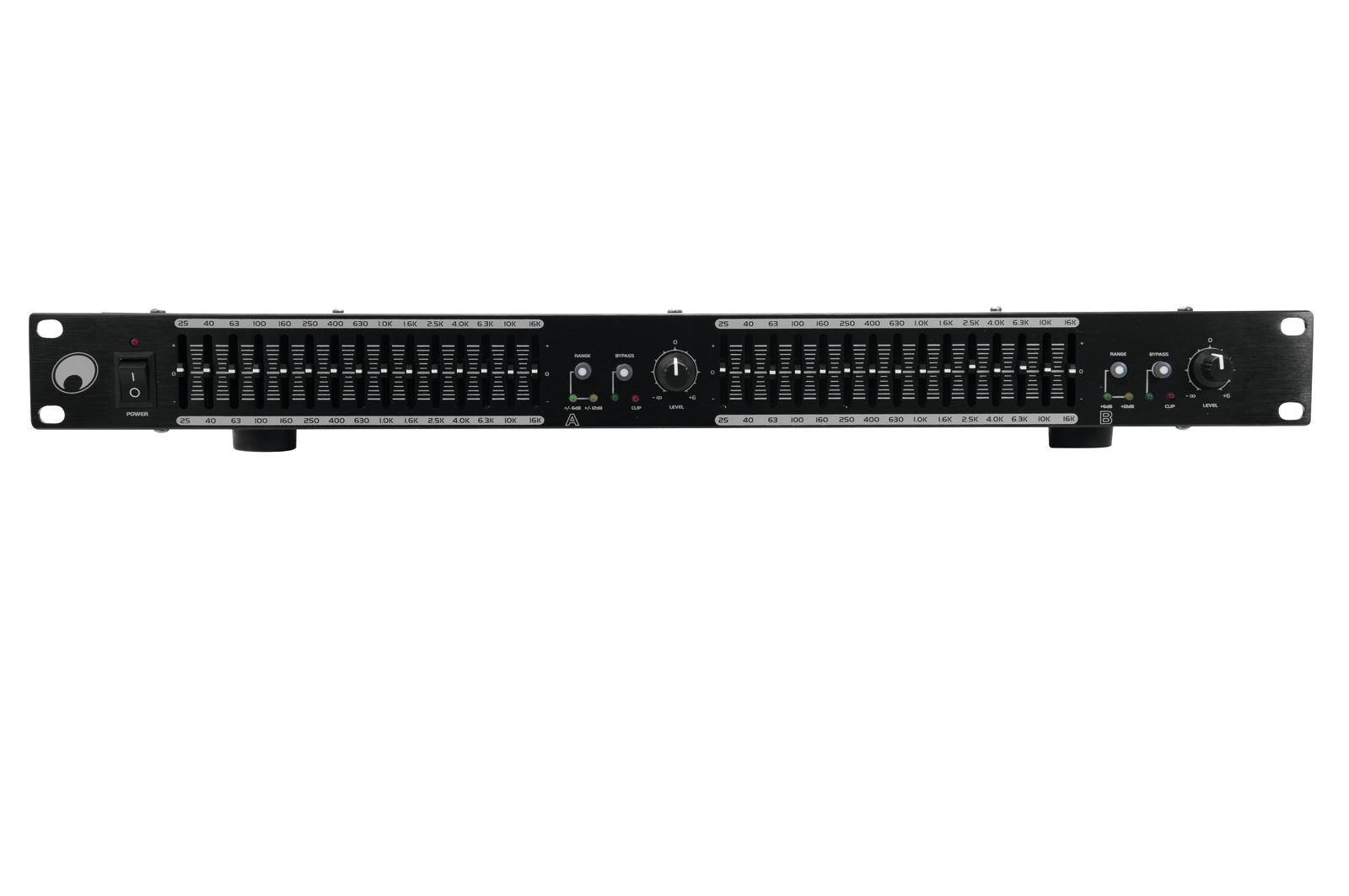

Omnitronic GEQ-2150 2-channel 19" EQ
EAN:
Part number:
Item no:
Number
Total (€ 109.24 / piece)
€ 109.24
plus VAT.
Highlights & Details
2 x 15-band equalizer
- 2-channel version, 2 x 15 Frequency Control with 2/3 octave distance
- Short sliding way
- Switchable EQ gain ±6 dB to ±12 dB
- Separate volume control for both channels
- This text is machine translated.
Technical specifications
- Power supply: 230 V AC, 50 Hz
- Total connection value: 20 W
- Connection sockets: XLR, jack
- Input impedance: 20kOhm/15 kOhm (balanced/unsym.)
- Max. Input Level: +24 dBu/+18 dBu (balanced/unsym.)
- Output impedance: 300 kOhm/150 kOhm (balanced/unsym.)
- Max. Output level: +24 dBu/+18 dBu (balanced/unsym.)/2 kOhm,
- +18 dBu/+12 dBu (balanced/unsym.)/600 Ohm
- Noise Ratio: 96 dB
- The non-linear distortion factor< 0.05%
- Frequency range 20-20000 Hz, ±0.5 dB
- Output Control:-~ to +6 dB
- Control range: ±6 dBu or ±12 dBu
- 2 x 25/40/63/100/160/frequencies: 400/630 Hz, 1/1, 6/2, 5/4/6.3/10/16 kHz
- Dimensions (wxdxh): 483 x 220 x 54 mm
- Weight: 2.3 kg
- Shipping weight: 2.87 kg
- No. of channels
2-channel
- Interfaces
XLR out
XLR in
6.3 mm jack in
6.35 mm headphone out
- Width
48.3 cm
- Depth
22 cm
- Height
5.4 cm
- Dim
(W x H x D) 48.3 x 5.4 x 22 cm
- Weight
2.3 kg
- Product type
19" EQ
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1529919 Omnitronic GEQ-2150 2-channel 19" EQ
Description
Features
- 2-channel version, 2 x 15 Frequency Control with 2/3 octave distance
- Short sliding way of the frequency control with center detent
- Switchable EQ gain ±6 dB to ±12 dB
- Separate volume control for both channels
- Bypass switch for direct comparison between the unprocessed and altered signal
- Clip display
- Inputs and outputs with jack and XLR connections
- Ground-Lift switch
- Rack installation, 1 HE
