Omnitronic XO-300 3-way triaxial 19" crossover
EAN:
Part number:
Item no:
Number
Total (€ 109.24 / piece)
€ 109.24
plus VAT.
Highlights & Details
Active crossover frequency.
- 3-way stereo operation
- 24 dB edge steepness/octave
- Output level for each frequency range individually adjustable
- Cut-off frequency low/mid and mid/high adjustable
- This text is machine translated.
Technical specifications
- Power supply: 230 V AC, 50 Hz
- Total connection value: 20 W
- Steepness of 24 dB/octave
- Operating modes: 3-way stereo
- Input impedance: 10/20 kOhm (unsym./sym.)
- Output impedance: 150 kOhm (unsym./sym.)
- Connection sockets: XLR
- Noise distance:> 100 dB
- THD: 0.05%
- Cross-talk:> 80 dB, -3dB
- Cut-off frequency low/mid: 80Hz - 920 kHz
- Cut-off frequency mid/high: 800 Hz - 9.2 kHz
- Input control:-~ to + 6 dB
- Low Cut: 40 Hz, -3 dB
- Phase adjustment: 0 to -180°
- Dimensions (wxdxh): 483 x 187 x 48 mm
- Weight: 3.3 kg
- Shipping weight: 2.84 kg
- No. of channels
3-way triaxial
- Interfaces
XLR in
XLR out
- Width
48.3 cm
- Depth
18.7 cm
- Height
4.8 cm
- Dim
(W x H x D) 48.3 x 4.8 x 18.7 cm
- Weight
3.3 kg
- Product type
19" crossover
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1529923 Omnitronic XO-300 3-way triaxial 19" crossover
Description
Features
- 3-way stereo operation
- 24 dB edge steepness/octave
- Output level for each frequency range individually adjustable
- Cut-off frequency low/mid and mid/high adjustable
- Mute function for the input signal and each frequency range can be switched individually
- CD-horn-EQ for high distortion can be activated
- Phasing of mid and high can be switched
- Input level can be regulated

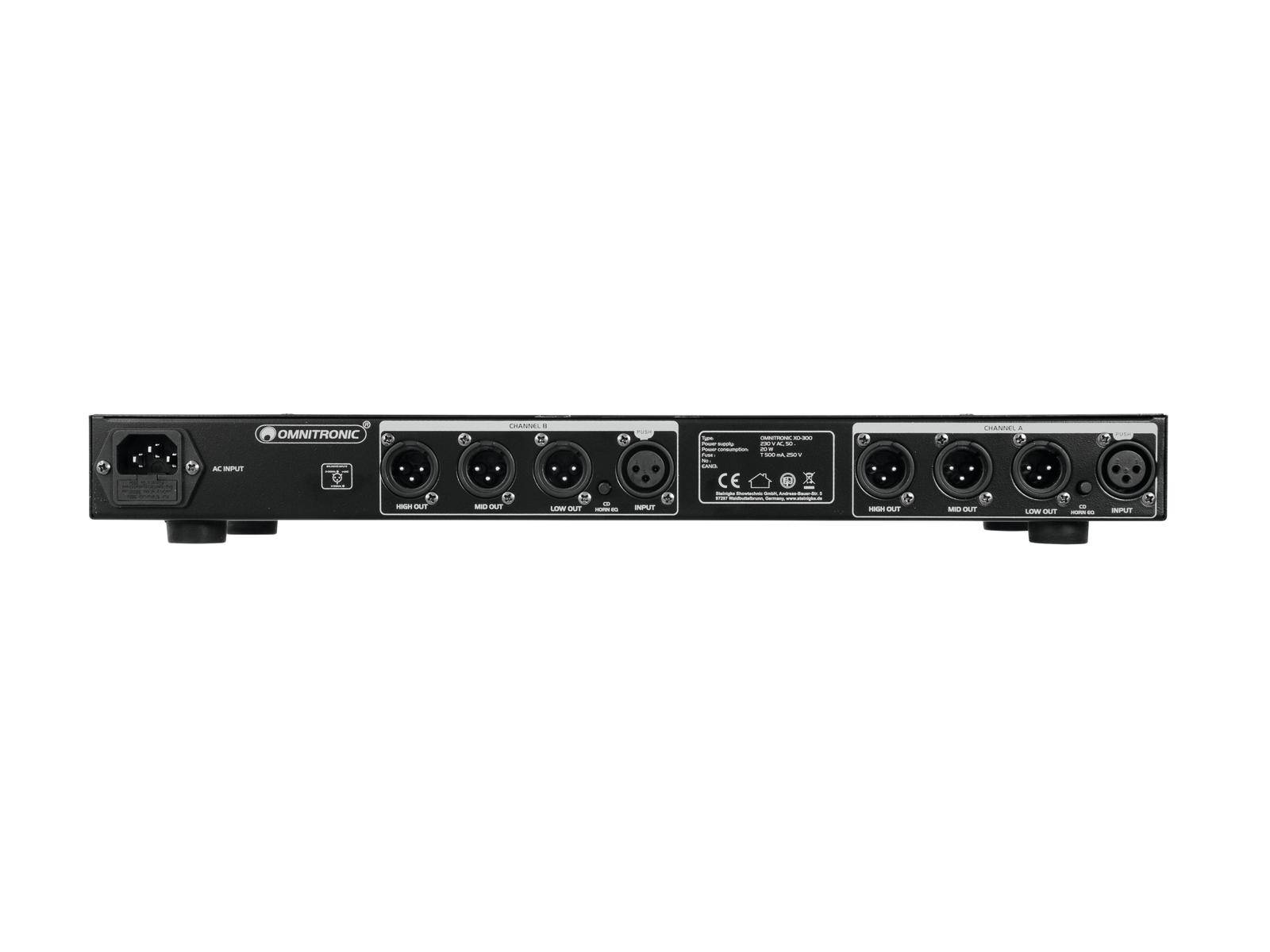

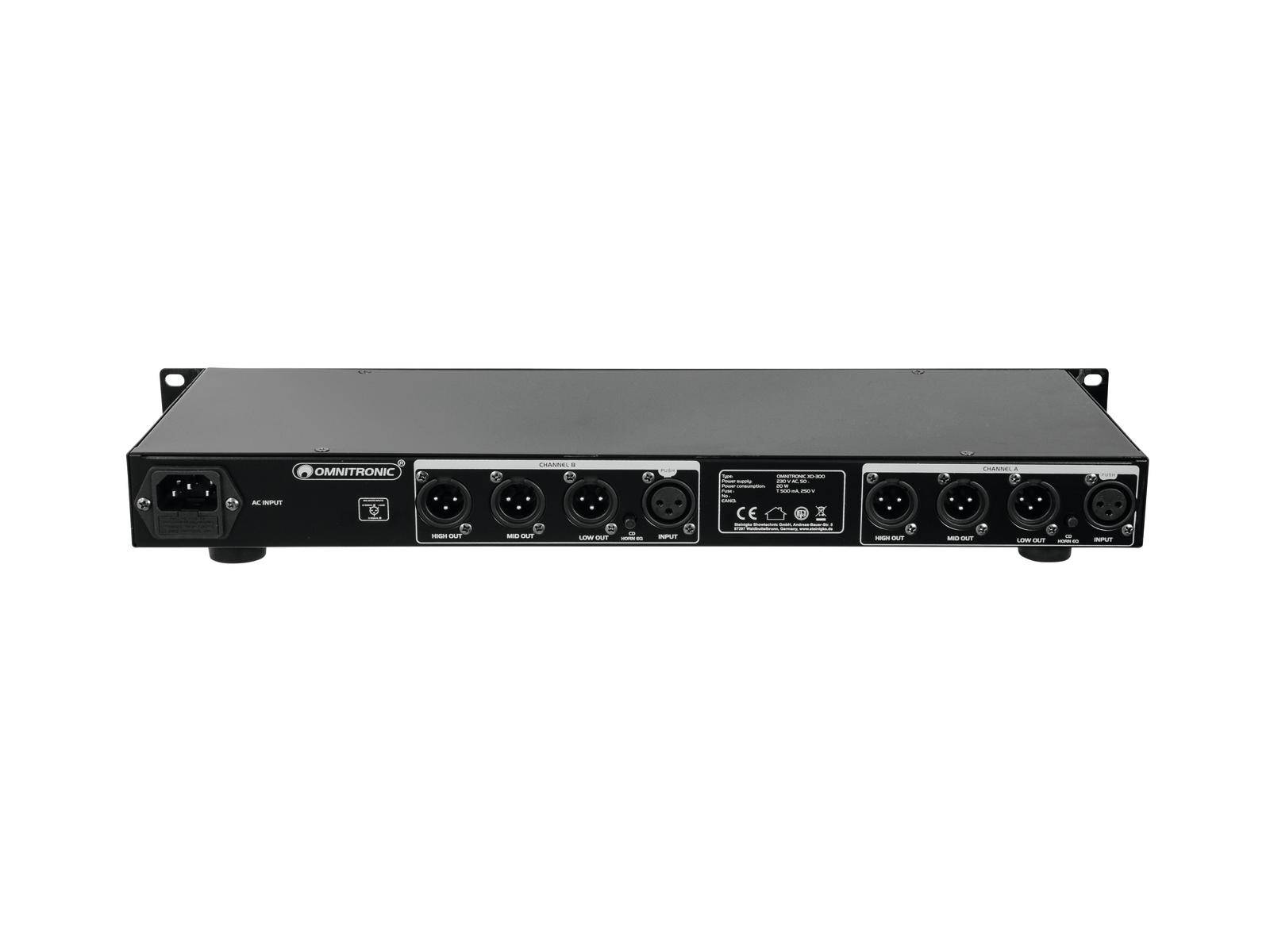

- All connections via XLR sockets
- Rack installation, 1 HE
