Audio equaliser with 31 sliders for adjusting different frequencies, two inputs and several controls on the right-hand side.

Audio equaliser with 31 sliders for adjusting different frequencies, two inputs and several controls on the right-hand side.

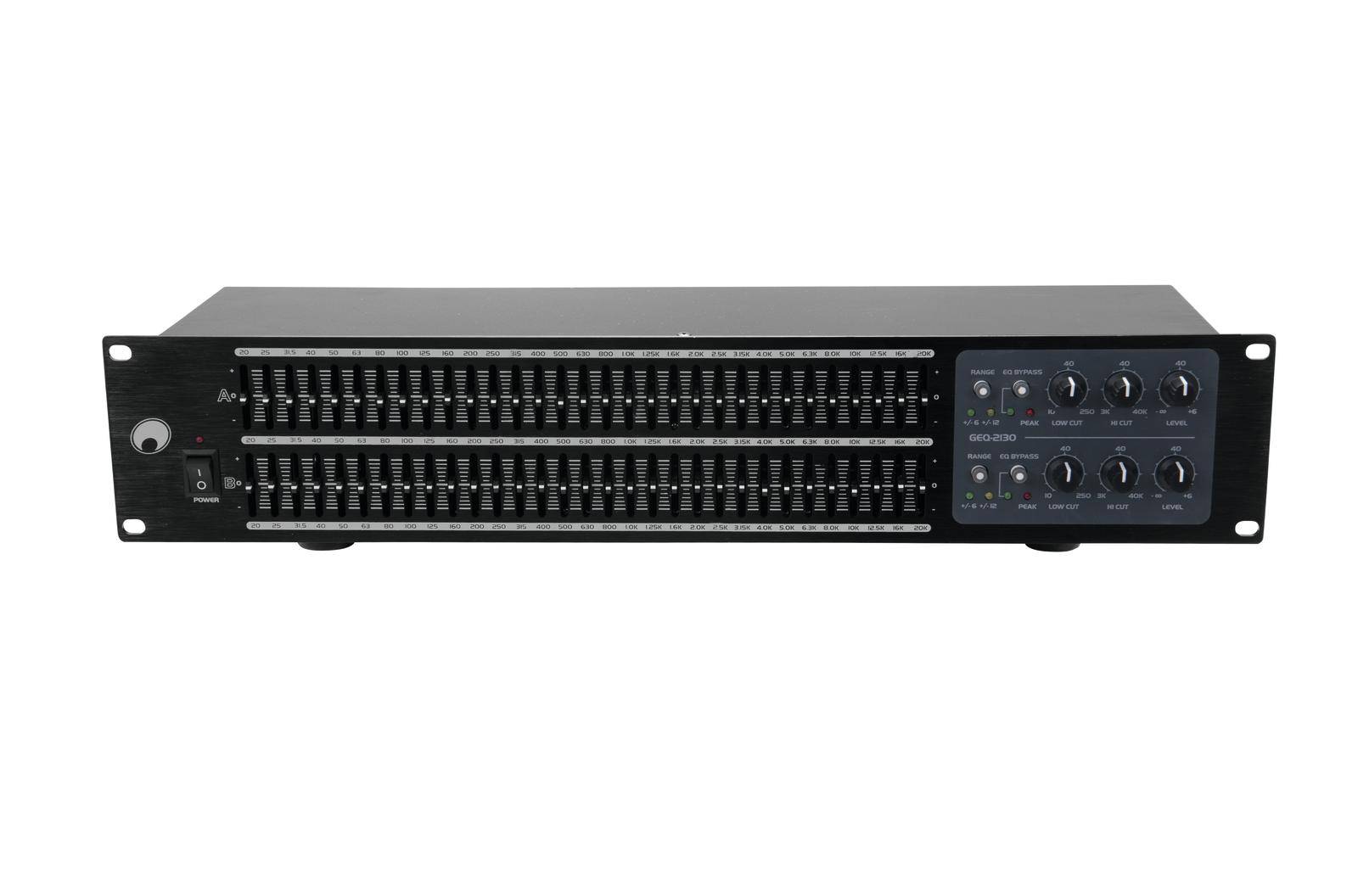

An audio equaliser in a black casing with multiple sliders and knobs on the right side for sound adjustment.

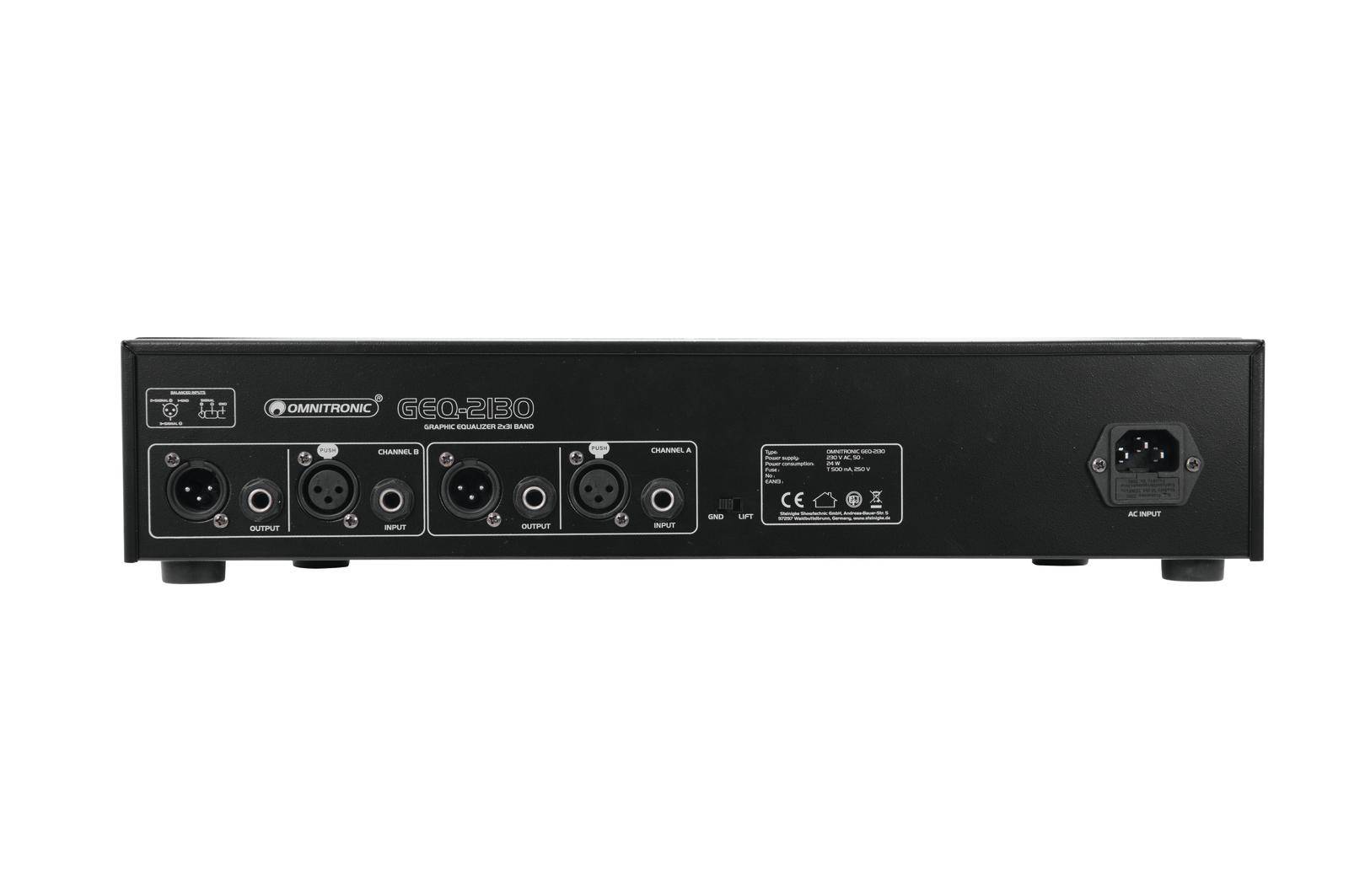

Back panel of an audio amplifier with multiple XLR connections and a cold device socket.

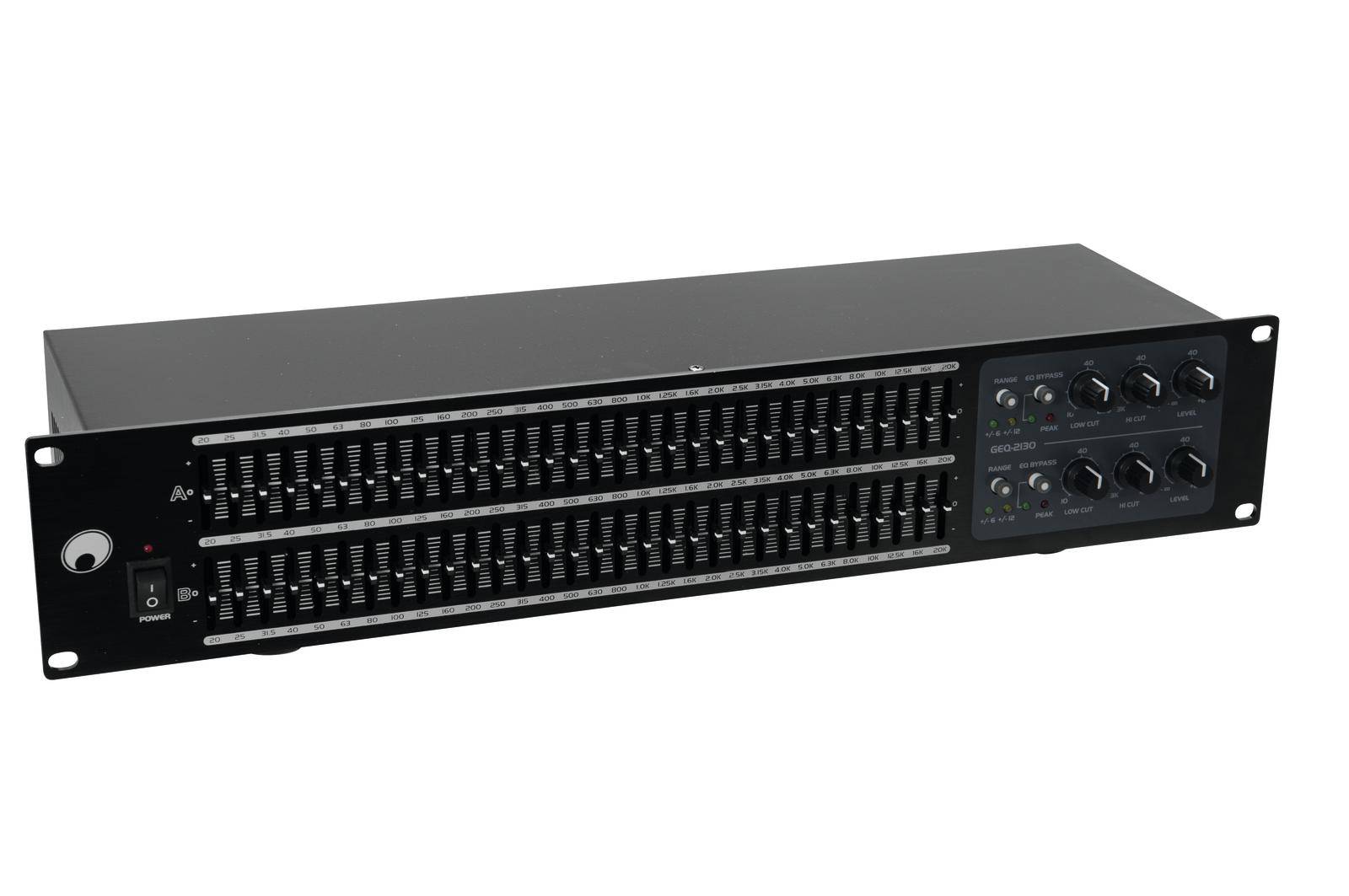

A black audio equaliser with multiple sliders and buttons for sound optimisation.

1/4

Omnitronic

Dispatches on Wed, 22 Jul

50 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 147.05 / piece)

€ 147.05

plus VAT.

Report legal concerns

Highlights & Details

2 x 31-band equalizer

2-channel version, 2 x 31 Frequency Control with 1/3 octave distance
Length sliding way of the frequency control with center detent
Switchable EQ gain ±6 dB to ±12 dB
Hi Cut (3-40 kHz) and Low Cut (10-250 Hz), switchable
This text is machine translated.

Technical specifications

Power supply: 230 V AC, 50 Hz
Total connection value: 20 W
Connection sockets: XLR, jack
Input impedance: 20kOhm/15 kOhm (balanced/unsym.)
Max. Input Level: +24 dBu/+18 dBu (balanced/unsym.)
Output impedance: 300 kOhm/150 kOhm (balanced/unsym.)
Max. Output level: +24 dBu/+18 dBu (balanced/unsym.)/2 kOhm,
+18 dBu/+12 dBu (balanced/unsym.)/600 Ohm
Noise Ratio: 96 dB
The non-linear distortion factor< 0.05%
Frequency range 20-20000 Hz, ±0.5 dB
Output Control:-~ to +6 dB
Control range: ±6 dBu or ±12 dBu
Frequencies: 2 x 20/25/50/63/80/100/125/160/200/250/31,5/40/315/400/500/630/800 Hz, 1/1, 25/1, 6/2/2.5/3.15/4/5/6, 3/8/10/12, 5/16/20 kHz
Hi Cut: 3 - 40 kHz
Low Cut: 10 - 250 Hz
Dimensions (wxdxh): 483 x 150 x 96 mm
Weight: 2.6 kg
Shipping weight: 3,59 kg

No. of channels: 2-channel

Interfaces: XLR in
XLR out
6.3 mm jack in
6.3 mm jack out

Width: 48.3 cm

Depth: 15 cm

Height: 9.6 cm

Dim: (W x H x D) 48.3 x 9.6 x 15 cm

Weight: 2.6 kg

Product type: 19" EQ

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1529920 Omnitronic GEQ-2310 2-channel 19" EQ

Description

Features

2-channel version, 2 x 31 Frequency Control with 1/3 octave distance
Length sliding way of the frequency control with center detent
Switchable EQ gain ±6 dB to ±12 dB
Hi Cut (3-40 kHz) and Low Cut (10-250 Hz), adjustable
Gear nete volume control for both channels
Bypass switch for direct comparison between the unprocessed and altered signal
Clip display
Inputs and outputs with jack and XLR connections
Ground-Lift switch
Rack installation, 2 HE
