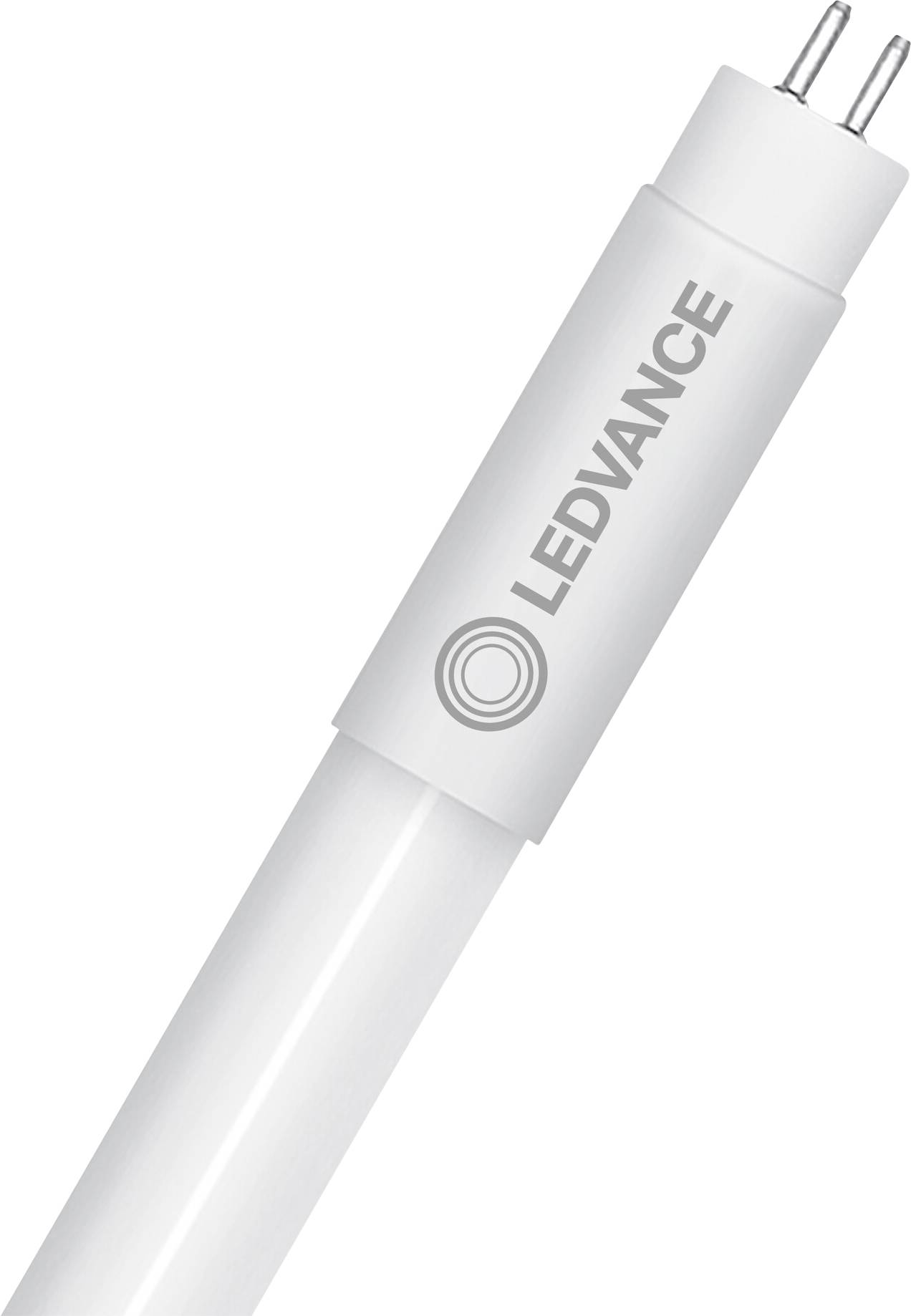

Name: LEDVANCE LED tube EEC: D (A - G) G5 Tube shape T5 26 W = 49 W Neutral white (Ø x H) 18.5 mm x 18.5 mm 1 pc(s)
Brand: LEDVANCE
SKU: 3323989
Availability: InStock

Highlights & Details

LED tube G5 26 W = 49 W Neutral white EEC: D (A - G) T5

Power= 26 W
Total luminous flux= 4000 lm
Colour temperature= 4000 K
Neutral white

Technical specifications

Product type: LED tube

: Tube shape

: G5

: 26 W

Power range: 20 W - 39.9 W

: 49 W

Version: matte

Colour: Neutral white

≙ power rating of a light bulb (range): 40 W - 59.9 W

Total luminous flux: 4000 lm

: 4000 K

Colour temperature range: 4000 K

: No

: 50000 h

Circuits: 200000

Ignition time: 0.50 s

Start-up time required to reach 60 % luminous flux (in sec): 2.00 s

EOL luminous flux retention: 0.70 %

Operating voltage: 50 V
90 V

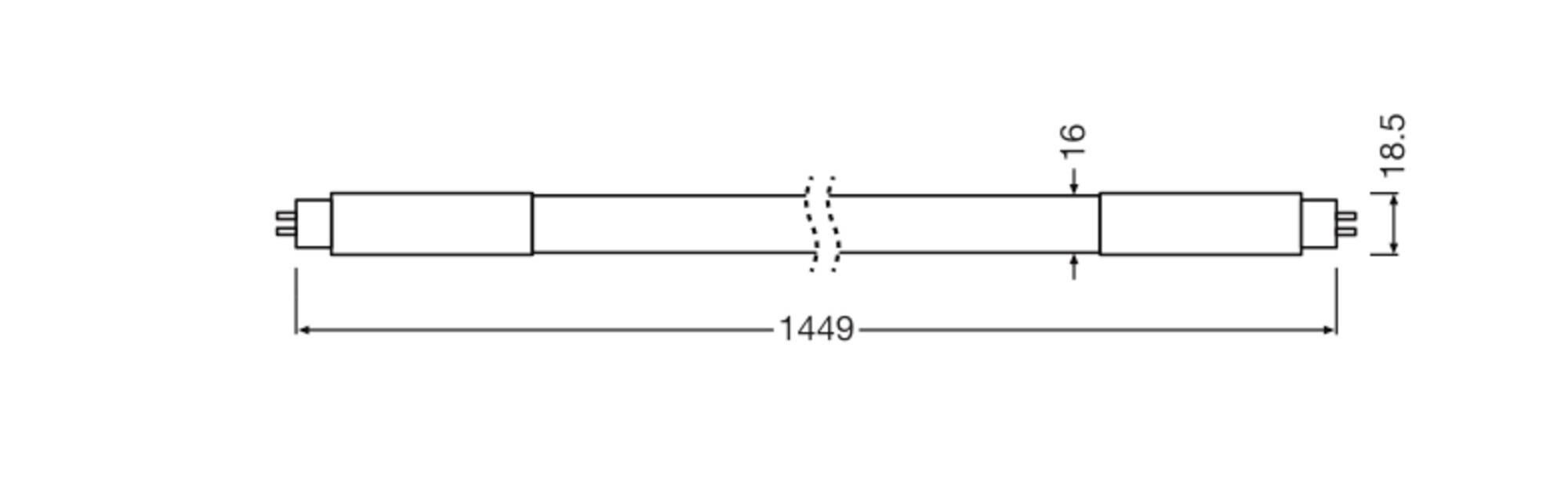

Length: 1463 mm

(Ø): 18.5 mm

Content: 1 pc(s)

: D (A - G)

Energy consumption: 26.00 kWh/1000h

Dim: (Ø x H) 18.5 mm x 18.5 mm

No. of bulbs: 1

Colour rendering: 840

Colour consistency (SDCM): 5

Colour rendering index: 80 Ra

Weight: 185 g

Bulb shape: T5

Material: Glass

: IP20

Type: T5

Factory colour: White

Height: 18.5 mm

Width: 18.5 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3323989 LEDVANCE LED tube EEC: D (A - G) G5 Tube shape T5 26 W = 49 W Neutral white (Ø x H) 18.5 mm x 18.5 mm 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3323989 LEDVANCE LED tube EEC: D (A - G) G5 Tube shape T5 26 W = 49 W Neutral white (Ø x H) 18.5 mm x 18.5 mm 1 pc(s)

Description

LED tubes for electronic ballasts, splinter protection Retrofit replacement of existing T5 lamps on HF ballasts. Glass bulb with splitter protection for applications such as in the food industry. High color consistency: Under 5 SDCM (threshold unit). Life: Up to 50,000 h. Flicker arm according to EU 2019/2020 (SVM under 0.4 / PstLM under 1). Protection class: IP20 Compatible with many commercially available electronic ballasts . Thanks to glass technology, there's no hanging around. Simple, fast and safe replacement of lamps without rewiring. High luminous flux for demanding lighting tasks. Also suitable for low temperature operation. General lighting in ambient temperatures of -20…+45 °C. Offices, public facilities. Supermarkets and department stores. Industry.

This text is machine translated.

Features

Retrofit replacement of existing T5 lamps on HF ballasts
Glass bulb with splitter protection for applications such as in the food industry
High color consistency: Under 5 SDCM (threshold unit)
Lifecycle up to 50 000 hrs
Flicker arm according to EU-2019/2020 (SVM under 0.4 / PstLM under 1)
Protection class: IP20
Compatible with many conventional electronic ballasts

Description

LED tubes for electronic ballasts, splinter protection Retrofit replacement of existing T5 lamps on HF ballasts. Glass bulb with splitter protection for applications such as in the food industry. High color consistency: Under 5 SDCM (threshold unit). Life: Up to 50,000 h. Flicker arm according to EU 2019/2020 (SVM under 0.4 / PstLM under 1). Protection class: IP20 Compatible with many commercially available electronic ballasts . Thanks to glass technology, there's no hanging around. Simple, fast and safe replacement of lamps without rewiring. High luminous flux for demanding lighting tasks. Also suitable for low temperature operation. General lighting in ambient temperatures of -20…+45 °C. Offices, public facilities. Supermarkets and department stores. Industry.

This text is machine translated.

Features

Retrofit replacement of existing T5 lamps on HF ballasts
Glass bulb with splitter protection for applications such as in the food industry
High color consistency: Under 5 SDCM (threshold unit)
Lifecycle up to 50 000 hrs
Flicker arm according to EU-2019/2020 (SVM under 0.4 / PstLM under 1)
Protection class: IP20
Compatible with many conventional electronic ballasts
