Building Service Technology & Smart LivingLightingLight BulbsLED Fluorescent Tubes

LEDVANCE LED tube EEC: E (A - G) LED Tube shape T5 21.5 W Warm white (Ø x L) 16.50 mm x 300.00 mm dimmable 1 pc(s)

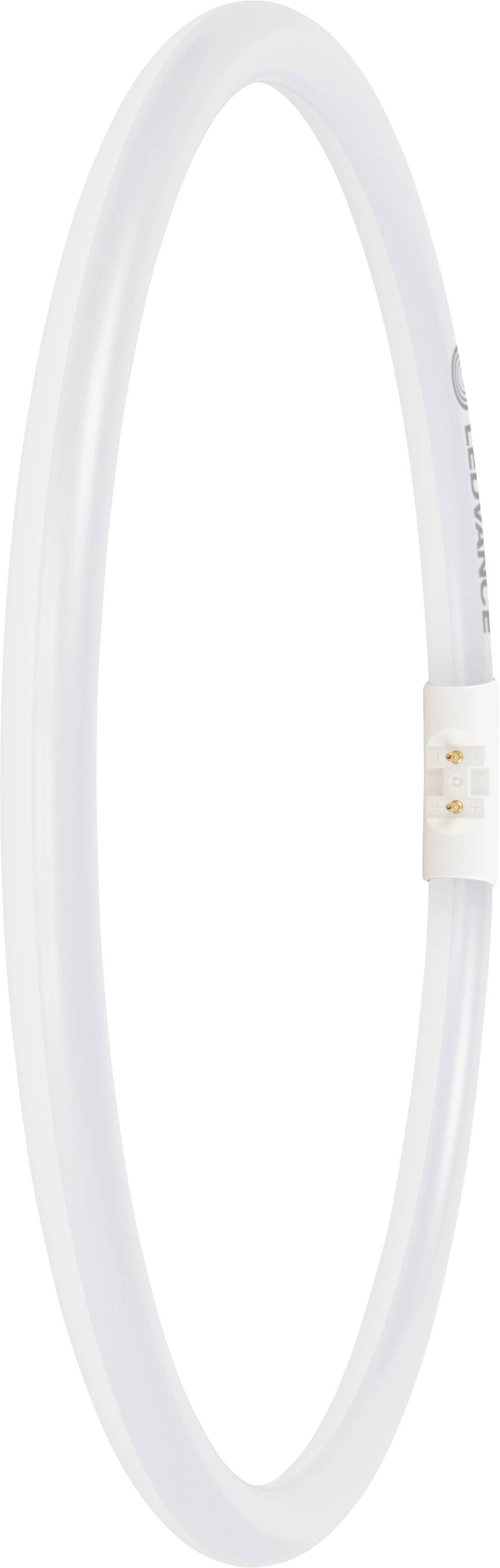

A circular fluorescent light tube with a connector on one side, used for energy-efficient lighting solutions.
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Mon 9 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 25.99 / piece)
€ 25.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

LED tube LED 21.5 W Warm white EEC: E (A - G) T5

  • Power= 21.5 W
  • Total luminous flux= 2900 lm
  • Colour temperature= 3000 K
  • Warm white

Technical specifications

  • Reflected beam angle 120°
  • Suitable for EVG: No.
  • Suitable for magnetic ballast: No.
  • IFTTT support available: Yes
  • Lamp shape: Tubes, one-sided base
  • Nominal voltage: 33 V
  • Nominal current: 650 mA
Product type

LED tube

Tube shape

LED

21.5 W

Power range

20 W - 39.9 W

2900 lm

Version

matte

Colour

Warm white

Total luminous flux

2900 lm

3000 K

Colour temperature range

3000 K (max)

Yes

50000 h

Circuits

200000

Power factor

0.90

Operating voltage

33 V

Length

300.00 mm

(Ø)

16.50 mm

Content

1 pc(s)

E (A - G)

Energy consumption

22 kWh/1000h

Dim

(Ø x L) 16.50 mm x 300.00 mm

No. of bulbs

1

Colour rendering

830

Colour consistency (SDCM)

5

Colour rendering index

80 Ra

89 Ra

Light features

Dimmable

Bulb shape

T5

Light bulb features

dimmable

Colour temperature (max.)

3000 K

IP20

Max. temperature

45 °C

Min. temperature

-20 °C

Type

T5

Factory colour

White

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 3499588 LEDVANCE LED tube EEC: E (A - G) LED Tube shape T5 21.5 W Warm white (Ø x L) 16.50 mm x 300.00 mm dimmable 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3499588 LEDVANCE LED tube EEC: E (A - G) LED Tube shape T5 21.5 W Warm white (Ø x L) 16.50 mm x 300.00 mm dimmable 1 pc(s)

Description

LED T5 FC EXTERNAL FOR LED DRIVER DALI. Product Features: Designed for operation on LED DRIVER DALI PERFORMANCE. Circular LED lamp with one side socket. Suitable general lighting in ambient temperatures from -20 - +45 °. Life (L70/B50): Up to 50,000 h (at 25 °C). LED replacement for traditional T5 fluorescent lamps in ring form. Product benefits: Compatible with LED driver DR DALI-P-26/220-240/700 (4058075779631). Easy conversion to dimmable LED lighting. Easy application, no checking of the compatibility of the ballast needed. Suitable for emergency lighting with single battery. Application areas: Shops, hotels and restaurants. Public buildings Safety notes: Suitable for indoor use. The operating temperature range of the LED tube is limited. If you are in doubt about the suitability of the application, please measure the maximum TC temperature on the product before installation. Not suitable for use with 230 V mains voltage or with electronic ballast. Disconnect power before installation.

This text is machine translated.

Features

  • LED T5 FC EXTERNAL FOR LED DRIVER DALI
  • Designed for operation on LED DRIVER DALI PERFORMANCE
  • Nominal power 21.5 W.
  • Nominal voltage 33 V
  • Colour temperature 3000 K
  • Luminous flux: 2900 lm
  • Reflected beam angle: 120°
  • Length (including round lamps): 300.00 mm
  • Width 16.50 mm
  • L90/B10 life at 25 °C: 50000 h / UKCA
