Name: Lenovo USB-C® docking station LENOVO USB 4 Smart Dock 100W
Brand: Lenovo
SKU: 3730020
Availability: InStock

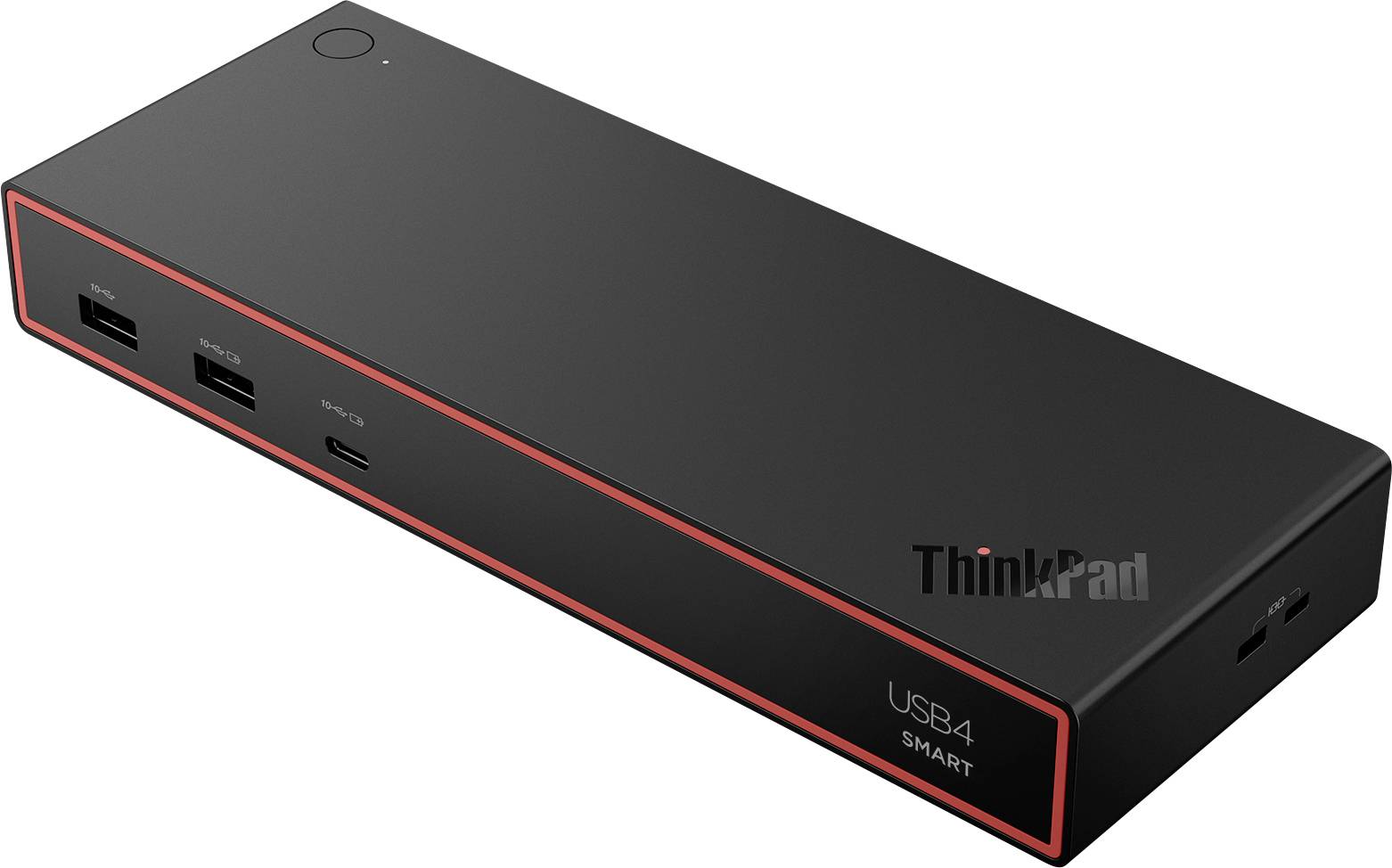

'ThinkPad USB4 SMART Dock' showing multiple USB ports on the side.

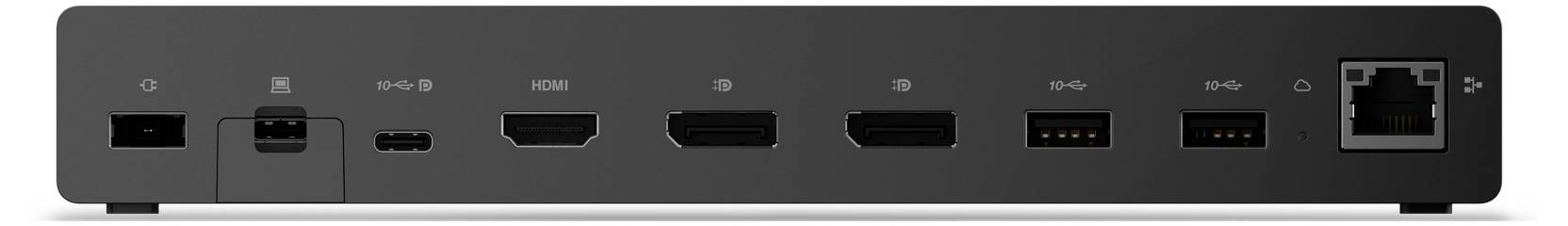

A black docking station with various ports: power, Thunderbolt, USB-C, HDMI, DisplayPort, USB-A, and Ethernet.

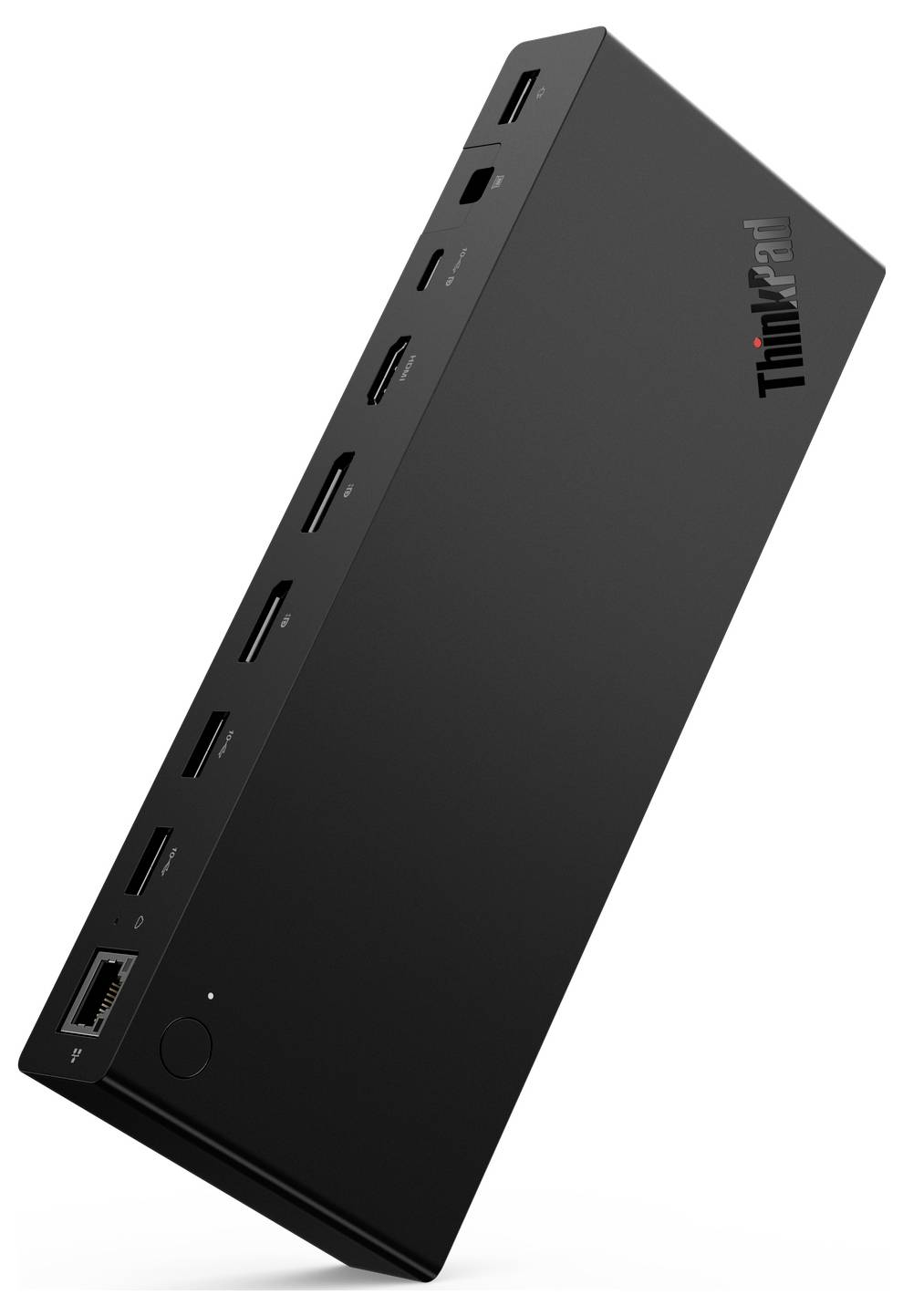

A slim, black Lenovo docking station with multiple ports, including USB, HDMI, and Ethernet, angled to show connectivity options.

A black USB charging station with three ports labeled '2.1A', '1.0A', and a USB-C port, featuring a red border.

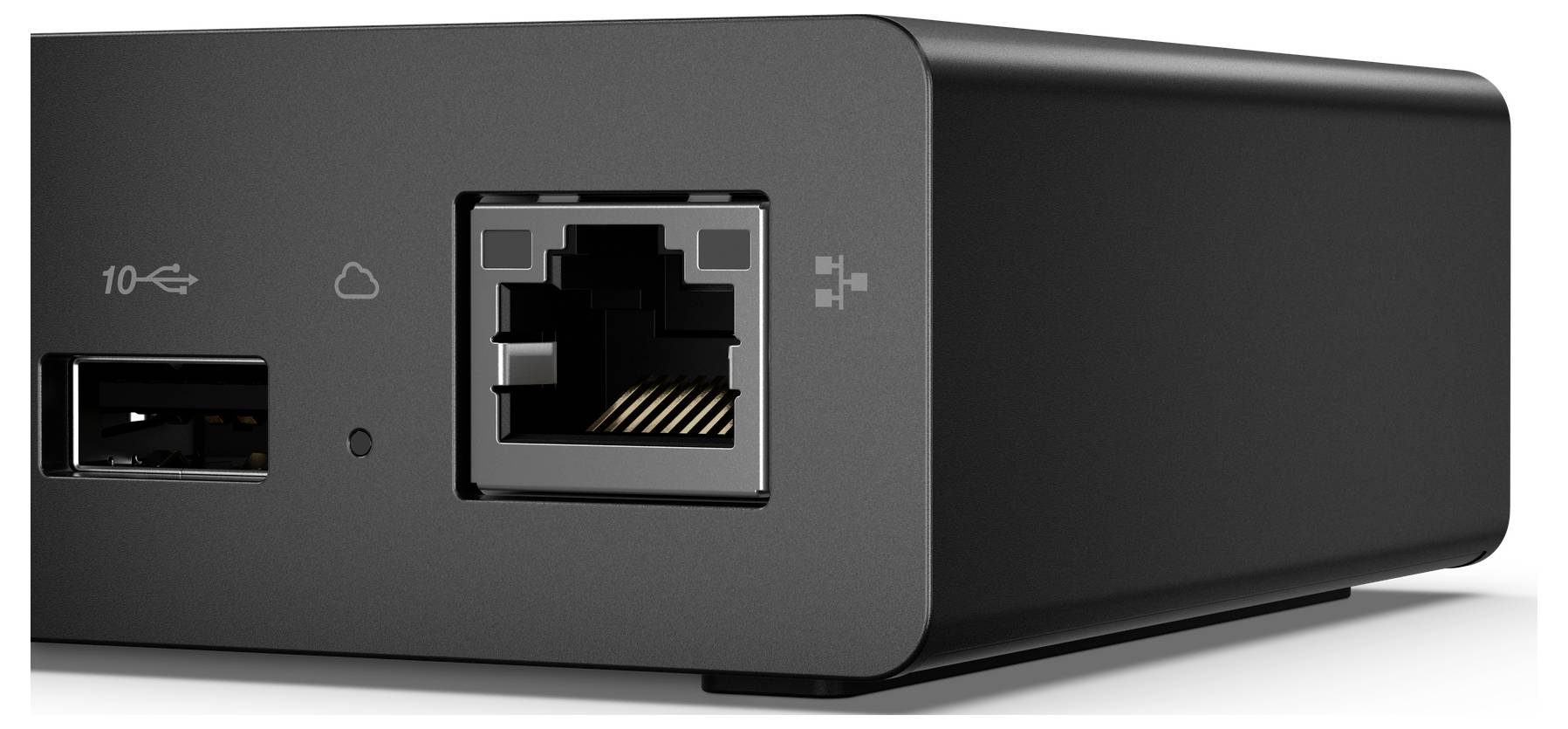

'Close-up of a black electronic device showcasing an Ethernet port and USB port.'

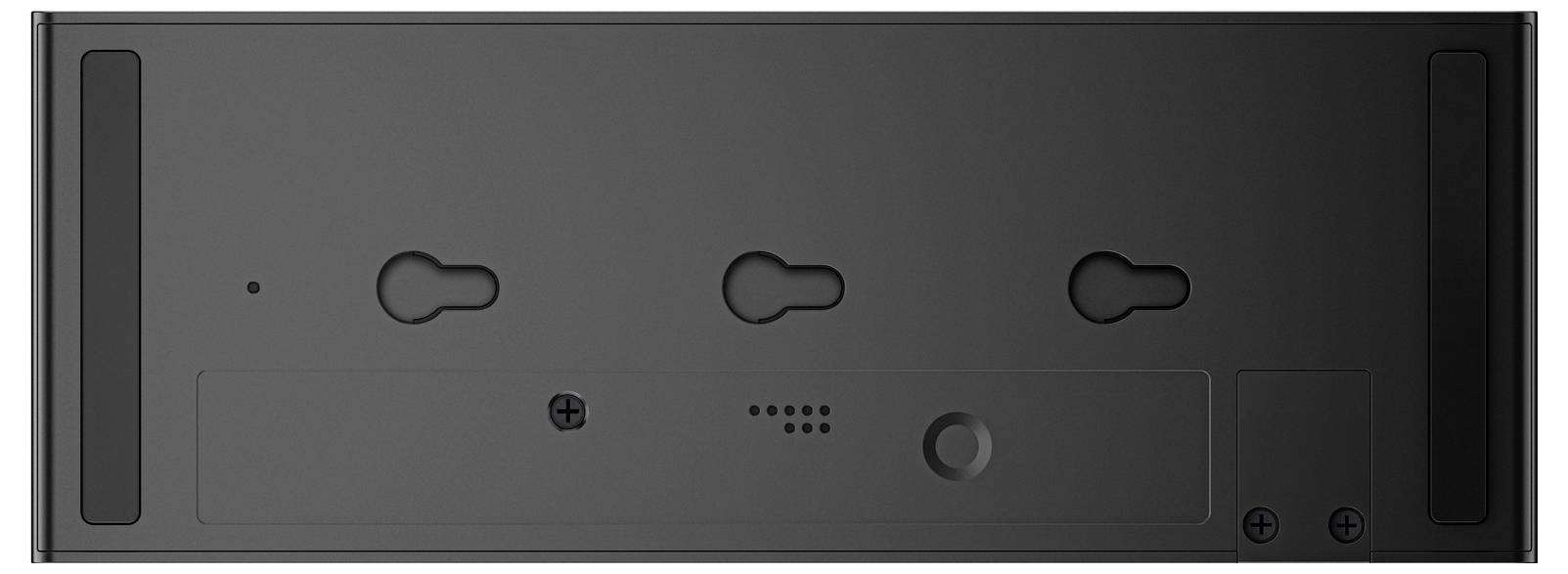

A black rectangular device mounting plate with three keyhole slots, one round button, and several small vent holes.

A black docking station with USB, HDMI, and network ports, featuring a connected USB4 cable indicating 100Gbps speed capability.

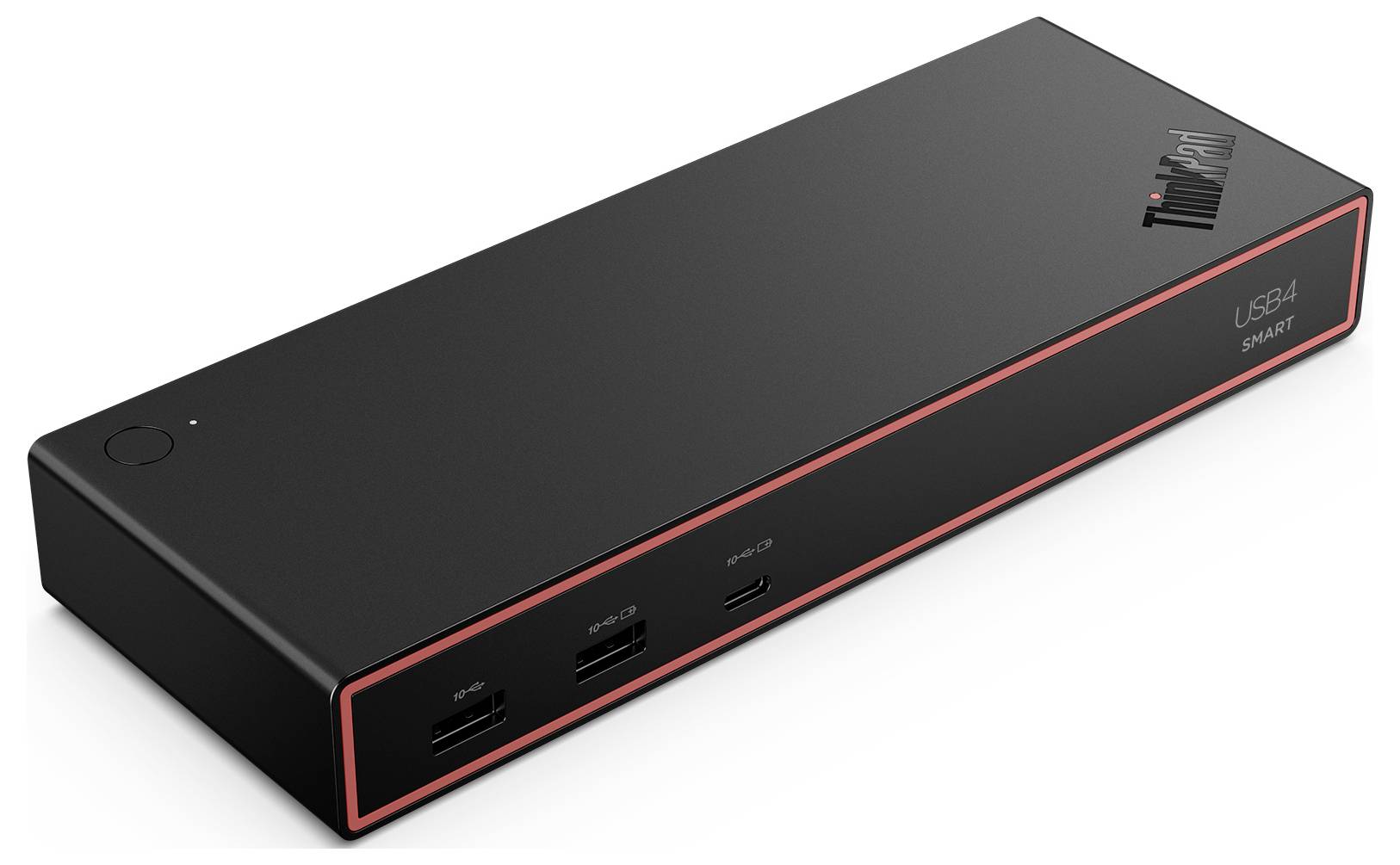

A black rectangular docking station with USB ports on the front, featuring 'USB4' and 'ThinkPad' branding, designed for connectivity.

A black rectangular electronic device with two USB ports labeled 'eSATA'.

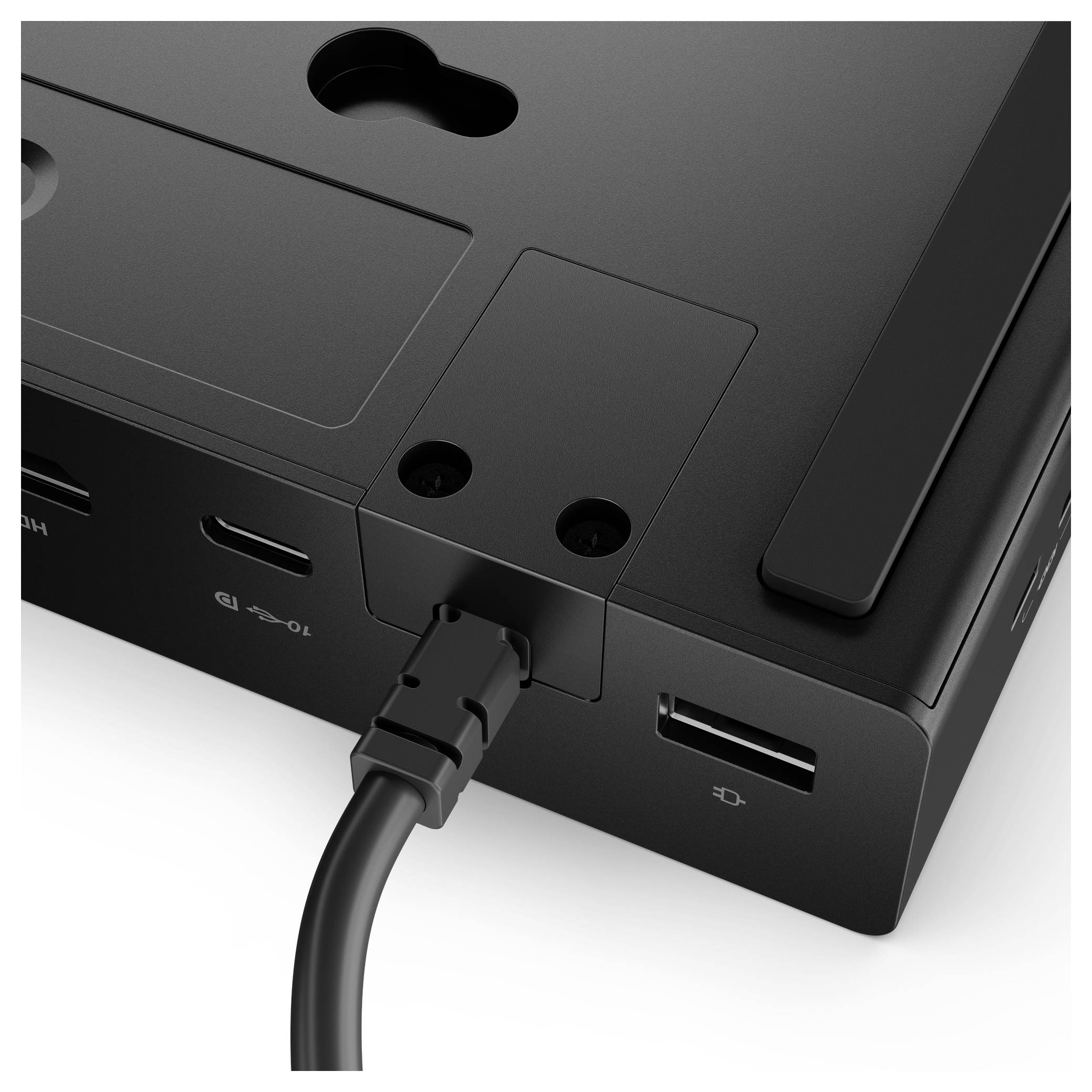

'A close-up view of a black electronic device showing various ports, including USB and HDMI, with a cable plugged into the USB port.'

1/11

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

7 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 214.99 / piece)

€ 214.99

incl. VAT

Only 7 Piece(s) available

14-day return policy included

Report legal concerns

Pre-contractual information under the EU Data Act

Highlights & Details

Lenovo 40BC0100EU USB-C® docking station

Connection A (or inputs): HDMI plug
Connecton B (or outputs): HDMI plug
No. of supported monitors: 4
Maximum resolution:
Key features:

Technical specifications

Host interface: USB4
HDMI version 2.1

Product type: USB-C® docking station

Type A: HDMI plug

Type B: HDMI plug

Supported monitors: 4

Cable length: 0 cm

Factory colour: Black

Width: 218 mm

Height: 31.5 mm

Depth: 80 mm

Weight: 472 g

Dim: (W x H x D) 218 x 31.5 x 80 mm

Version: Cable

Frame rate: 60 Hz

No. of DisplayPort: 2 x

No. of HDMI ports: 1 x

No of. USB type A 3.1 /3.2 2nd gen: 4 x

No. of USB 3.2 2nd Gen (USB 3.1): 2 x

10/100/1000 Mbps ports: 1 x

PSU power: 100 W

Transfer type: Corded

UKCA: yes

Operating temperature (T-T): 0 - 40 °C

Wireless charging: no

Ethernet LAN: yes

Cable lock slot: yes

Quantity per pack: 1 Stück(e)

Microphone in: no

DC-in jack: yes

Card reader integrated: no

USB Power Delivery up to: 65 W

USB4 ports quantity: 1

Maximum digital resolution: 3840 x 2160 p

Operating relative humidity (H-H): 20 - 95 %

Package weight: 1.04 kg

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3730020 Lenovo USB-C® docking station LENOVO USB 4 Smart Dock 100W

Description

The Lenovo ThinkPad Smart Dock 5500 was developed to increase productivity through multiple connectivity options. This docking station supports a number of interfaces, including USB4, HDMI and DisplayPort, thus ensuring compatibility with different devices. With a maximum resolution of 3840 x 2160 and a refresh rate of 60 Hz it delivers clear and lively pictures for each configuration. Thanks to its robust connectivity features, it is suitable for audio and video applications as well as for network connections via Gigabit Ethernet. The docking station is designed for use in a variety of environments and works seamlessly at temperatures between 0°C and 40°C.
