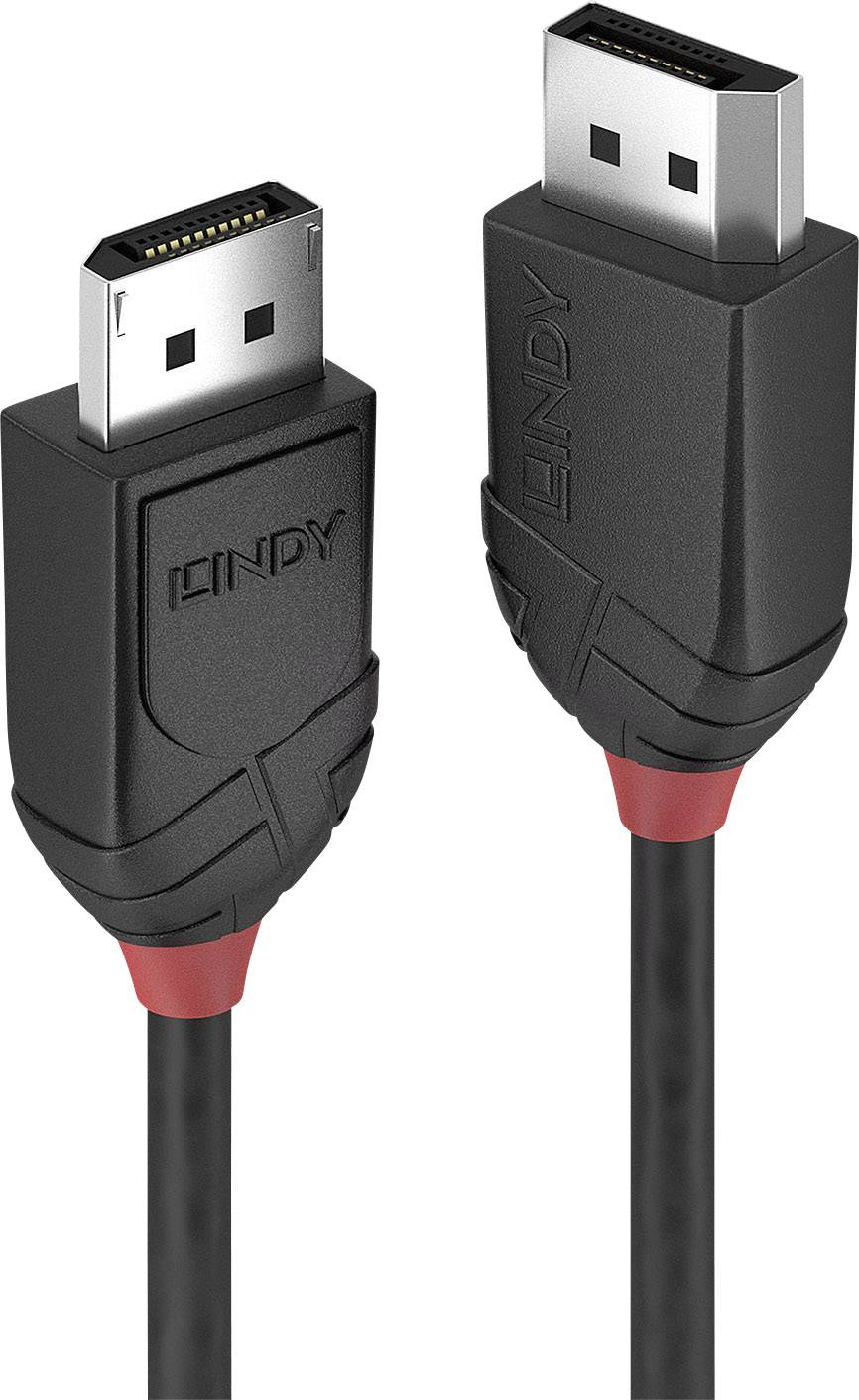

LINDY DisplayPort Cable DisplayPort plug, DisplayPort plug 0.50 m Black 36490 DisplayPort cable

1/2
Product type
DisplayPort cable
Connection type
DisplayPort
Version
Cable
Connection type
DisplayPort to DisplayPort
Connections
DisplayPort plug
DisplayPort plug
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Tue 10 Nov

23 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions

Number
Total (€ 11.99 / piece)
€ 11.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included

Highlights & Details

Lindy 0.5m DisplayPort 1.2 Cable, Black Line

  • DisplayPort 1.2 cable, ideal for small office/home office range
  • Supports UHD resolutions up to 4096 x 2160 @ 60 Hz 4:4:4 10-Bit
  • Robust PVC housing with 24K gold plated contacts and nickel-plated plug
  • 3-way shielded cable with corrosion-resistant, 30 AWG tin-plated copper conductor
  • DisplayPort 1.2, 4K, 3D, 21.6 Gbit/s

Technical specifications

Product type

DisplayPort cable

Connection type

DisplayPort

Version

Cable

Connection type

DisplayPort to DisplayPort

Connections

DisplayPort plug

DisplayPort plug

Video resolution

4096 x 2160 Pixel

Cable length

0.50 m

Factory colour

Black

Signal flow

Bidirectional (A↔B)

Cable use

TV/monitor

UKCA

yes

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 1847632 LINDY DisplayPort Cable DisplayPort plug, DisplayPort plug 0.50 m Black 36490 DisplayPort cable

User & Safety Instructions

User & Safety Instructions 1847632 LINDY DisplayPort Cable DisplayPort plug, DisplayPort plug 0.50 m Black 36490 DisplayPort cable

Warranty Terms

Warranty Terms 1847632 LINDY DisplayPort Cable DisplayPort plug, DisplayPort plug 0.50 m Black 36490 DisplayPort cable

Description

Cable lines stands for the concept of contemporary, wired connectivity solutions from lindy. The Black Line Display port cable from the cable line concept are cable solutions for high resolutions with unlimited functionality in the entry-level segment. They are ideal for professional business applications, but also for the small office/home office range.

The Black Line Display port cable have a 3-fold shielding and tinned copper conductors with 30 AWG-cross-section for the highest and loss-free transmission power. Long-term corrosion resistance and maximum reliability ensure the high quality of manufactured with 24K gold-plated contacts and nickel-plated plug-in sleeves.

Supports UHD resolutions up to 4K 4096 x 2160 @ 60 Hz 4:4:4 10bit. The Black Line Display port cable are also able to transfer 32-channel audio and Dolby True HD. In addition, these cable a 4:4:4 Farbunterabtastung all brightness and image information in brilliant quality.

This text is machine translated.

Features

  • Connector A: Displayport Plug
  • Connector B: display port connector
  • Housing material: ABS
  • Coating of connector: Nickel
  • Pin Design: phosphor bronze
  • Coating of pins: 24K Gold 3µm
  • Dimensions: 21.0 x 38.9 x 12 (approx.) WXDXH mm (0.3x 1.53 x 0.47 in)
  • Standard: DisplayPort 1.2
  • Colour: Black
  • Type: round
  • Sheath diameter 6 mm (0.24 in)
  • Sheath material: PVC
  • Conductor material: tin-plated copper
  • Conductor dimensions: 30 AWG
  • Shielding: copper braid, 80%
  • Supported Tape width: 21 Gbit/s
  • Maximum resolution: 4096 x 2160 @ 60 Hz 4:4:4 10-bit
  • Nominal Attenuation: 300 kHz-825 MHz< 5dB, 825 MHz< 2.475 GHz -4.125 -2.475 GHz 5dB,< 12 dB, 4.125 GHz 5.1 GHz GHz -< 20 dB
  • Minimum bend radius: 48 mm (1.01 in)
  • Operating temperature: -20°C - 80°C (-4°F - 176°F)
  • Storage temperature: -25°C - 85°C (-13°F - 185°F)
