Name: LINDY USB-C® docking station 43202 Compatible with (brand): Universal USB-C® powered
Brand: LINDY
SKU: 2626877
Availability: SoldOut

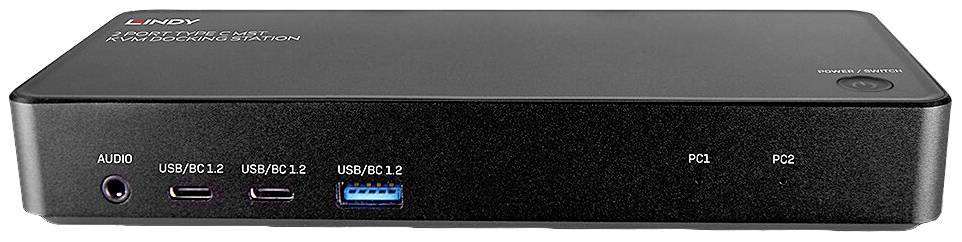

Black and grey computer device with ports: Audio, two USB-C 3.2, one USB-A 3.2 and two PCoIP ports, front view.

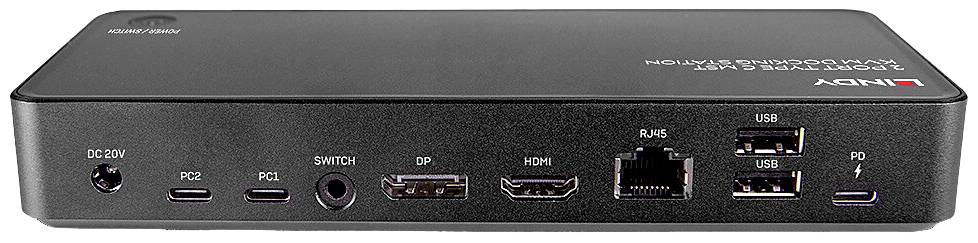

A black docking station with ports: DC 20V, two USB-C, switch, DP, HDMI, Ethernet (RJ45), two USB, audio (microphone/headphones).

A sleek black glossy laptop docking station with multiple ports, including HDMI, USB, and Ethernet, for expanding connection options.

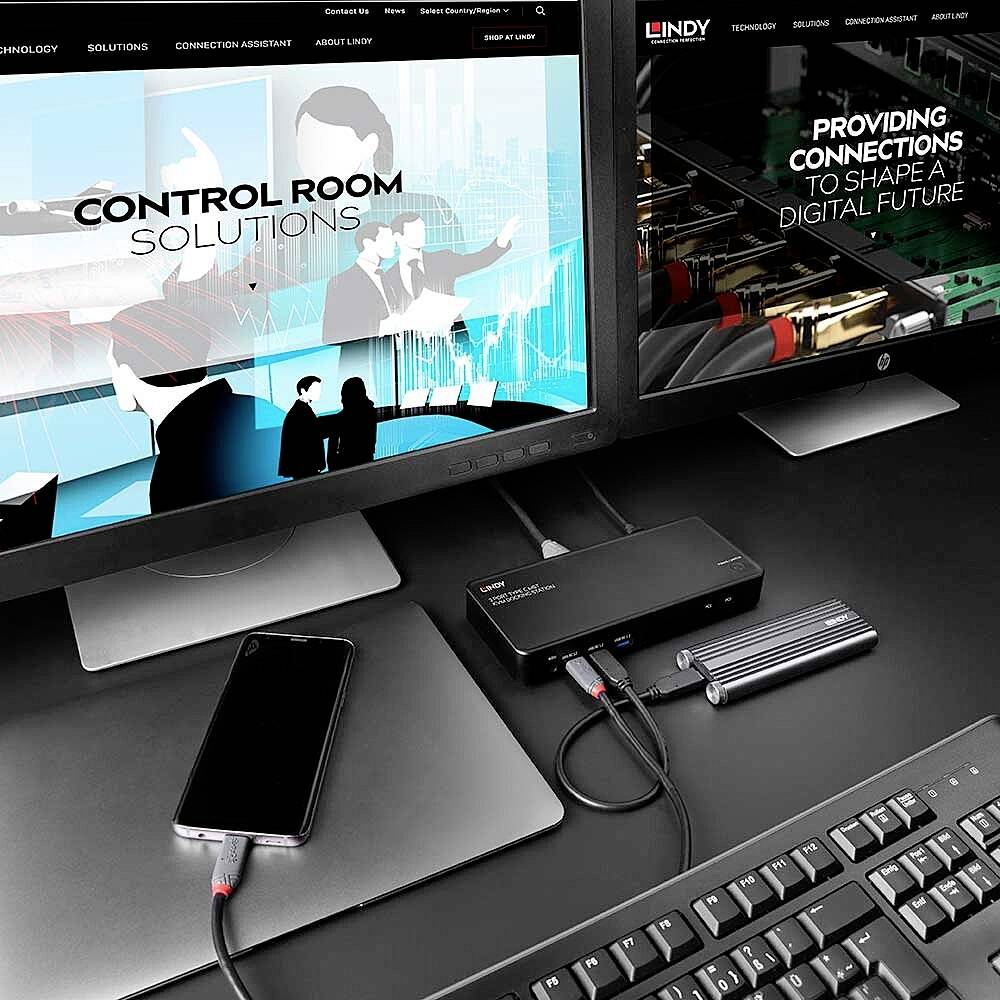

'Control room solutions' on the monitor on the left, connected devices on the table with cables, emphasising digital connectivity in the office.

1/5

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 154.99 / piece)

€ 154.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

LINDY 43202 USB-C® docking station

Connection A (or inputs): USB-C®
Connecton B (or outputs): HDMI socket, DisplayPort socket, RJ45 socket, USB-A, USB-C®, 3.5 mm socket
No. of supported monitors: 3
Maximum resolution: 3840 x 2160 p
Key features: USB-C® powered

Technical specifications

Interface: USB type C to HDMI, DP, RJ45, USB type A, USB type C, 3.5mmInterface standard: USB 3.2 / 3.1 Gen 1 / USB 3.0, HDMI 2.0, Gigabit LAN, DisplayPort 1.4Supported bandwidth: 18G, 5Gbps, 10/100/1000Mbit/s.Maximum input resolution: 3840x2160@60HzMaximum output resolution: 3840x2160@60HzCHIPSET: VL170 / VL160, FL7102 / FL7112, AX88179A, GL3510, KT0200, RTD2142Compatibility: Computer with USB type C or Thunderbolt 3 port and DisplayPort Alternate Mode supportpower Delivery: PD 3.0 to 100W on port 1 and up to 65W on port 2HDCP support: HDCP 1.4/2.2Audio: 24/96kHz audio sampling rateSeparate audio ports: 1x audio combination connector 3.5mmSpecial features: MST, DisplayPort Alternate Mode, BC 1.2 charging function

Product type: USB-C® docking station

Type A: USB-C®

Type B: HDMI socket
DisplayPort socket
RJ45 socket
USB-A
USB-C®
3.5 mm socket

Suitable for: Notebook

Supported monitors: 3

Resolution (max.): 3840 x 2160 p

Cable length: 1 m

Factory colour: Black

Features: USB-C® powered

Width: 185 mm

Height: 28.7 mm

Depth: 79 mm

Weight: 1.2 kg

Dim: (W x H x D) 185 x 28.7 x 79 mm

Compatible with (brand): Universal

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2626877 LINDY USB-C® docking station 43202 Compatible with (brand): Universal USB-C® powered

Description

The Lindy 2 Port Type C MST KVM Docking Station is a compact and versatile solution for connecting laptops to a range of interfaces, including two displays. This device has all the important interfaces required for a modern workstation and combines the convenience of a desktop docking station with a type C KVM switch. It offers two USB 3.2 type C inputs for connecting sources such as laptops, tablets or smartphones to share the same workstation and connected peripherals. Switching is possible simply by pressing the button on the top of the device.The docking station enables the connection of two screens via HDMI and DisplayPort outputs with resolutions of 3840x2160@60Hz using DisplayPort Alternate Mode via the USB type C connections. It also supports the MST function to manage the simultaneous connection of both monitors, one with 4K30 and one with 1920x1080@60Hz maximum resolutionThe front USB-type C and Type A ports offer a data transfer rate of up to 5 Gbps and BC 1.2 for fast charging - perfect for connecting peripherals such as hard drives, webcams and for charging mobile devices. Both USB type C inputs support USB power delivery 3.0, the PC1 port up to 100 W (if an additional type C PD power supply is connected to the PD port) and the PC2 port up to 65 W (if the supplied power supply is connected).It also offers a Gigabit Ethernet and a 3.5 mm port for connecting a network and an audio stereo input/output device such as headphones, speakers or microphone.
