Littelfuse VUO160-16NO7 Diode bridge PWS E 1600 V Bulk

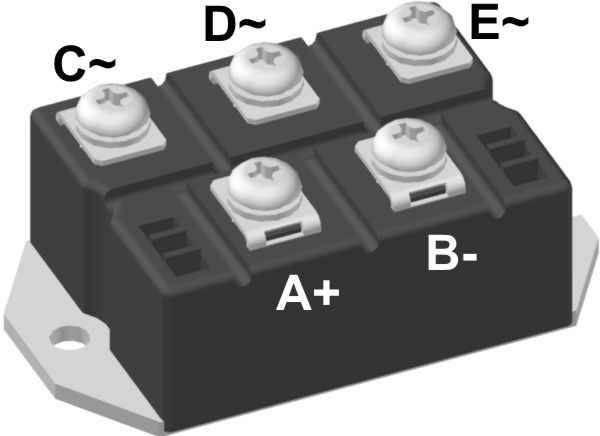

Diagram of an electrical component with connections labelled 'C~', 'D~', 'E~', 'A+', 'B-'.
Packaging type
Bulk
Product type
Diode bridge
Enclosure
PWS E
U(RRM)
1600 V
Type
VUO160-16NO7
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 139.99 / piece)
€ 139.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • Package type PWS-E
  • Maximum repetitive blocking voltage (V) 1600 V
  • Case temperature 110 °C
  • Maximum virtual junction temperature: 150 °C.
  • Thermal resistance (junction-case) (K/W): 0.5 K/W.
  • Maximum surge current (A) 1800 A
  • Slope resistance for Power loss calculation: 3.4 mΩ
  • Thermal resistance caeseatsink KW:0.2 K/W.
  • Threshold voltage for Power loss calculation 0.77 V
  • IDAV [RECT] (A) 175 A
Packaging type

Bulk

Type

VUO160-16NO7

Product type

Diode bridge

Enclosure

PWS E

Manufacturer

Littelfuse

Manuf. code

LIT

U(RRM)

1600 V

I(FSM) 50Hz

1800 A

I(FSM) 60Hz

1800 A

Operating temperature (max.)

150 °C

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2965929 Littelfuse VUO160-16NO7 Diode bridge PWS E 1600 V Bulk

Description

Rectifiers from leading manufacturers. Full details free to download from our comprehensive product documents library.
