LUKAS-ERZETT A1039001020 Planer set Steel Length 40 mm Shank diameter 6 mm

1/2
EAN:
Part number:
Item no:
Dispatches on Tue 10 Nov

Sales and shipping:
Conrad ElectronicTerms & Conditions

Number
Total (€ 509.00 / piece)
€ 509.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included

Highlights & Details

Milling cutter set 10-piece shaft 6 mm | galvanized 42 for stainless steel/ steel

  • Always the right tool at hand: With the practical LUKAS assortment

Technical specifications

  • Tool holder: Shaft
  • Tool holder dimensions 6 mm
  • Shaft length 40 mm
  • Tool form: Assortment
  • Tool head length 10 mm
  • Teeth: Z42 Inox/Steel mean facet gearing
  • Stars: 2
  • Suitability Steel and cast steel RM up to 800 N/mm²: Well suitable
  • Suitability alloyed, coated steels RM up to 1200: Well suited
  • Suitability for tool steels RM up to 1300 N/mm²: Well suited
  • Suitability rust, acid, heat-resistant. Steel/cast: Well suited
  • Suitability cast iron: Suitable
  • Chamfer application: Well suited
  • Application deburring: Well suited
  • Milling application: Well suited
  • Application cast: Well suitable
  • Suitable for steel: Well suited
  • Suitable for Inox/Steel: Well suited
  • Suitable for cast: Suitable
Product type

Planer set

Material

Steel

Shank Ø

6 mm

Length

40 mm

Content

1 Set

Material properties

rust-proof

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3440613 LUKAS-ERZETT A1039001020 Planer set Steel Length 40 mm Shank diameter 6 mm

Description

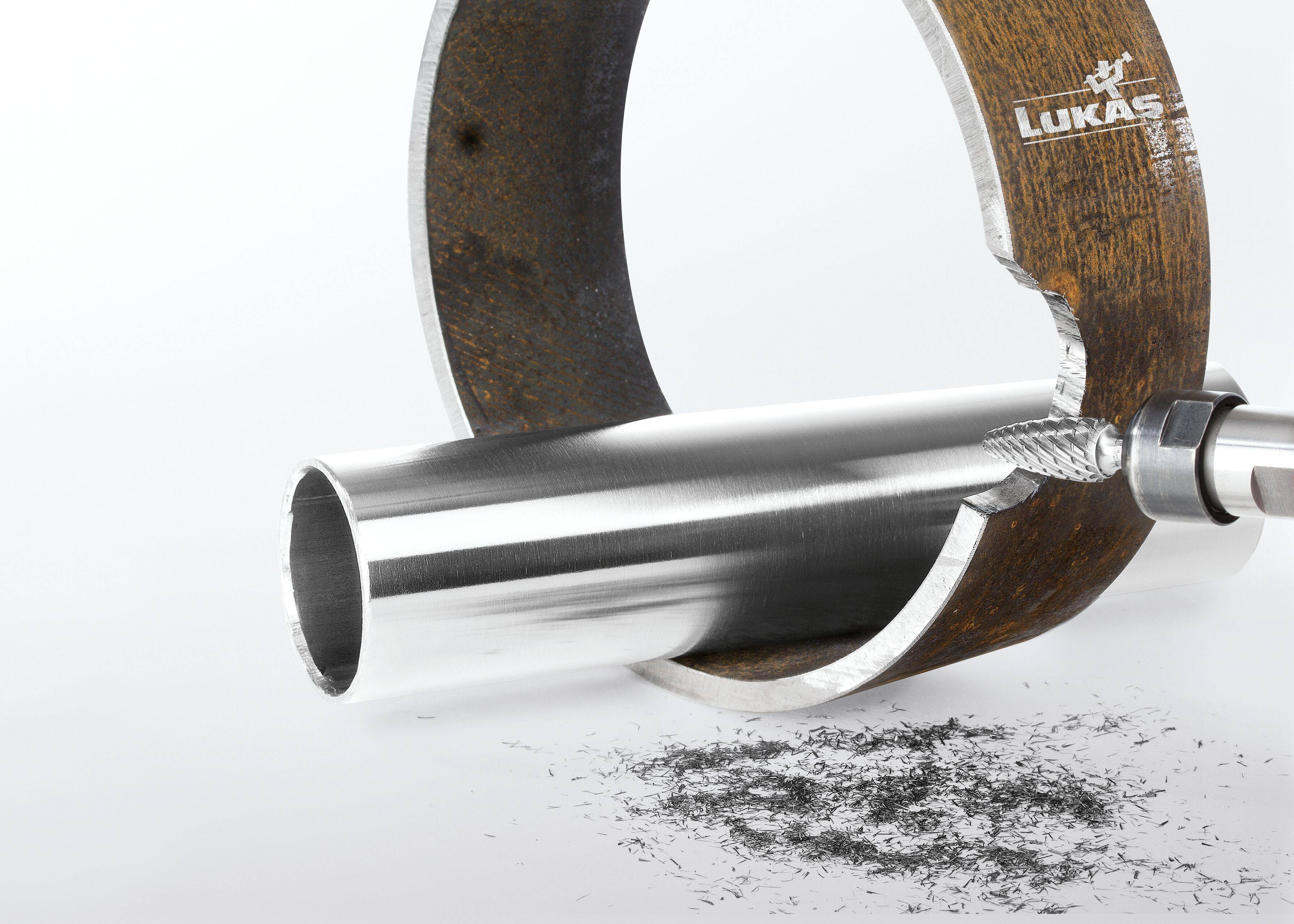

Always the right tool at hand: With the practical LUKAS assortment
Can work on stainless steel and steel equally
Efficient use: Large clamping volume in a short time thanks to a large cross-section of the chip
Thanks to facet gearing, the cutting edges remain sharp for longer: Less force is required when working and the machine wear is low
Even in the most extreme applications, cutting breaks are very rare
Little effort required when working with short chips
No dangerous shank breakage thanks to high-quality steel shaft
Perfect dimensional stability: Fits optimally into the drive machine
Perfect surface result through facet gearing
Robust cutting and teeth prevent outbreaks and save valuable time
Very smooth tool with few vibrations and without rattling thanks to optimized clamping angle
High clamping volume through coarse serration for quick working
With this practical 10-part LUKAS milling cutter set, you have the right tool available. The cutter range is excellent for testing various tools and is designed for industry as well as building sites or hobby workshops. The geometry of the cutter enables the use on steel and high-grade steel and the robustness of the cutting and teeth prevents a break-out of the cutter even in extreme applications, which saves valuable time. The facet toothing enables perfect surface results and a long-lasting sharpness of the cutting edges. This reduces the amount of effort required during machining and makes the machine wear low. The large cross-section ensures fast, efficient working and a large clamping volume. Thanks to the optimized clamping angle the tool runs very smoothly, with little vibrations and without rattling. The high-quality steel shaft of the tools fits optimally in the drive machine. Clamps, slip or even shaft breakage are a thing of the past.

This text is machine translated.

System requirements

  • Straight grinder
