Name: LUKAS-ERZETT A1630781 LUKAS-ERZETT A1630781 N/A 5 pc(s) 5 pc(s)
Brand: LUKAS-ERZETT
SKU: 3440789
Availability: BackOrder

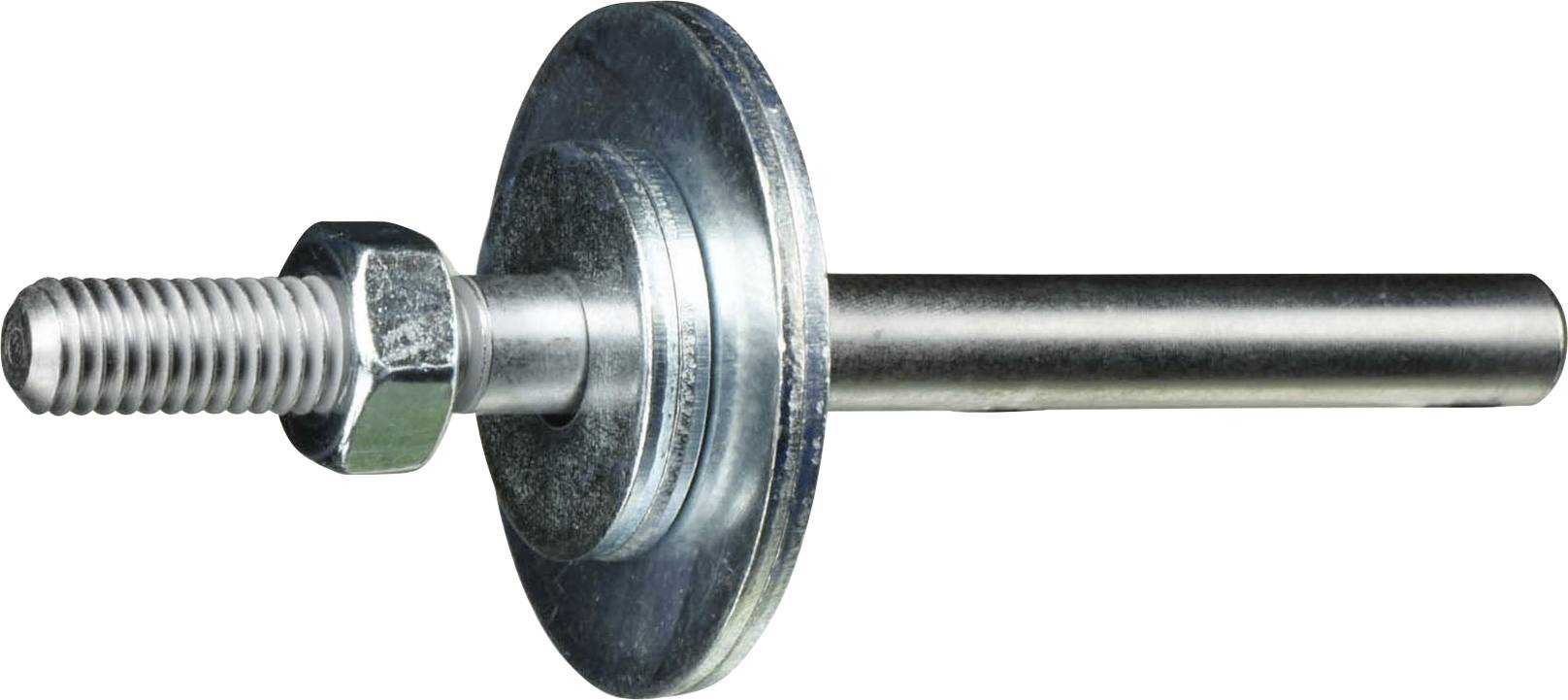

A metal bolt with a washer and hex nut threaded onto it, showing its components and assembly for fastening or securing purposes.

Metal rod with a threaded end, a hex nut, and disc near the center. Likely a mechanical part for fastening or machinery assembly.

A metal bolt assembly with a threaded rod, washer, and hex nut. The rod extends downward, with the washer and nut fixed near the top.

'Diagram of a cylindrical rod with dimensions: 73 mm long, 6 mm diameter on both ends, with a 30 mm section emphasized.'

1/4

EAN:

Part number:

Item no:

Dispatches on Thu 19 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 5 pc(s))

Set(s)

Total (€ 5.20 / piece)

€ 25.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

LUKAS-ERZETT A1630781 N/A 5 pc(s)

Safe and reliable absorption of felt polishing wheels

Technical specifications

Tool holder: Shaft
Tool holder dimensions 6 mm
Shaft length 43 mm
n max. (1/min): 7000
Stars: 2
Suitability Steel and cast steel RM up to 800 N/mm²: Well suitable
Suitability alloyed, coated steels RM up to 1200: Well suited
Suitability for tool steels RM up to 1300 N/mm²: Well suited
Suitability rust, acid, heat-resistant. Steel/cast: Well suited
Suitability cast iron: Well suitable
Suitable Al, Mg and Cu alloys: Well suited
Suitability titanium and nickel alloys: Well suitable
Suitability titanium and nickel alloys: Suitable
Application Polishing: Well suited
Application Precision machining: Well suited
Suitable for steel: Well suited
Suitable for Inox/Steel: Well suited
Suitable for cast: Well suited
Suitable for Aluminum: Well suitable
Suitable for titanium
Suitable for plastic/wood

Product type: Tool shank

Shank Ø: 6 mm

Content: 5 pc(s)

Material: Steel

Material properties: rust-proof

Length: 43 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3440789 LUKAS-ERZETT A1630781 LUKAS-ERZETT A1630781 N/A 5 pc(s) 5 pc(s)

Description

Safe and reliable absorption of felt polishing wheels
No dangerous shank breakage thanks to high-quality steel shaft
Stainless steel, zinc-nickel coating
Perfect dimensional stability: Fits optimally into the drive machine
No chrome coating
This reusable clamp bolt can be used to securely hold felt polishing wheels. The high-quality steel shaft of the clamping bolt fits optimally in the drive machine. Clamps, slip or even shaft breakage are a thing of the past. Regular tests ensure a high level of safety. Two washers (18 mm and 30 mm) and a hexagon nut are included in the delivery.

This text is machine translated.
