Lumberg 2542 02 Lumberg 2542 02 N/A 167444 Plug, straight 1 pc(s) 167444 Plug, straight 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
RJ45 plug
Connector type
Plug, straight
Specification
CAT 6A
Connector standard
RJ45
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 8.39
3
6% = € 0.47
€ 7.92
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 8.39 / piece)
€ 8.39
plus VAT.
Highlights & Details
Lumberg 2542 02 N/A 167444 Plug, straight 1 pc(s)
- Tool-free connection in insulation displacement technology (SKT)
Technical specifications
- Plug connector features: Protected latch, bend protection sleeve, can be connected without tools
- Contact holder: PC
- PC. Cutting clamp insert
- Cable diameter min. 6 mm
- Cable diameter up to 9 mm
- Continuous resistance ≤ 20 mΩ
- Rated current 1.5 A
- Rated voltage 125 V/AC
- Electric strength: 750 V/AC
- Insulation resistance 1 GΩ
- Packaging type
Piece
- Type
2542 02
- Product type
RJ45 plug
- Connector type
Plug, straight
CAT 6A
- Connector standard
RJ45
- AWG max.
23
- AWG (min.)
26
- Connection
Cut & Clip connector
- Type A
RJ45 8p8c plug
- Type B
Cut & Clip
- Content
1 pc(s)
- Contact material
CuSn, gold plated
- Material
Zinc alloy
- RoHS-compliant
Yes
- Features
Industrial-grade (w/o tools)
- Max. temperature
+70 °C
- Min. temperature
0 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3349338 Lumberg 2542 02 Lumberg 2542 02 N/A 167444 Plug, straight 1 pc(s) 167444 Plug, straight 1 pc(s)
Datasheet 3349338 Lumberg 2542 02 Lumberg 2542 02 N/A 167444 Plug, straight 1 pc(s) 167444 Plug, straight 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3349338 Lumberg 2542 02 Lumberg 2542 02 N/A 167444 Plug, straight 1 pc(s) 167444 Plug, straight 1 pc(s)
Description

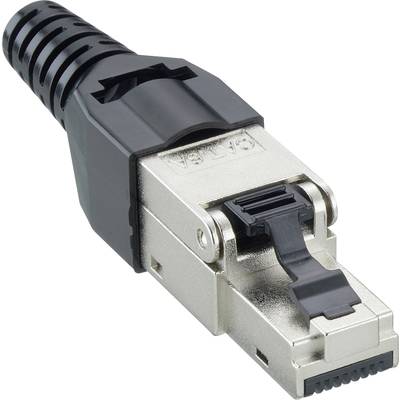

Modular plug, CAT. 6a, 8P8C (RJ45), straight, with protected locking tab, shield and bend protection, Tool-free connection in insulation displacement technology (SKT)
