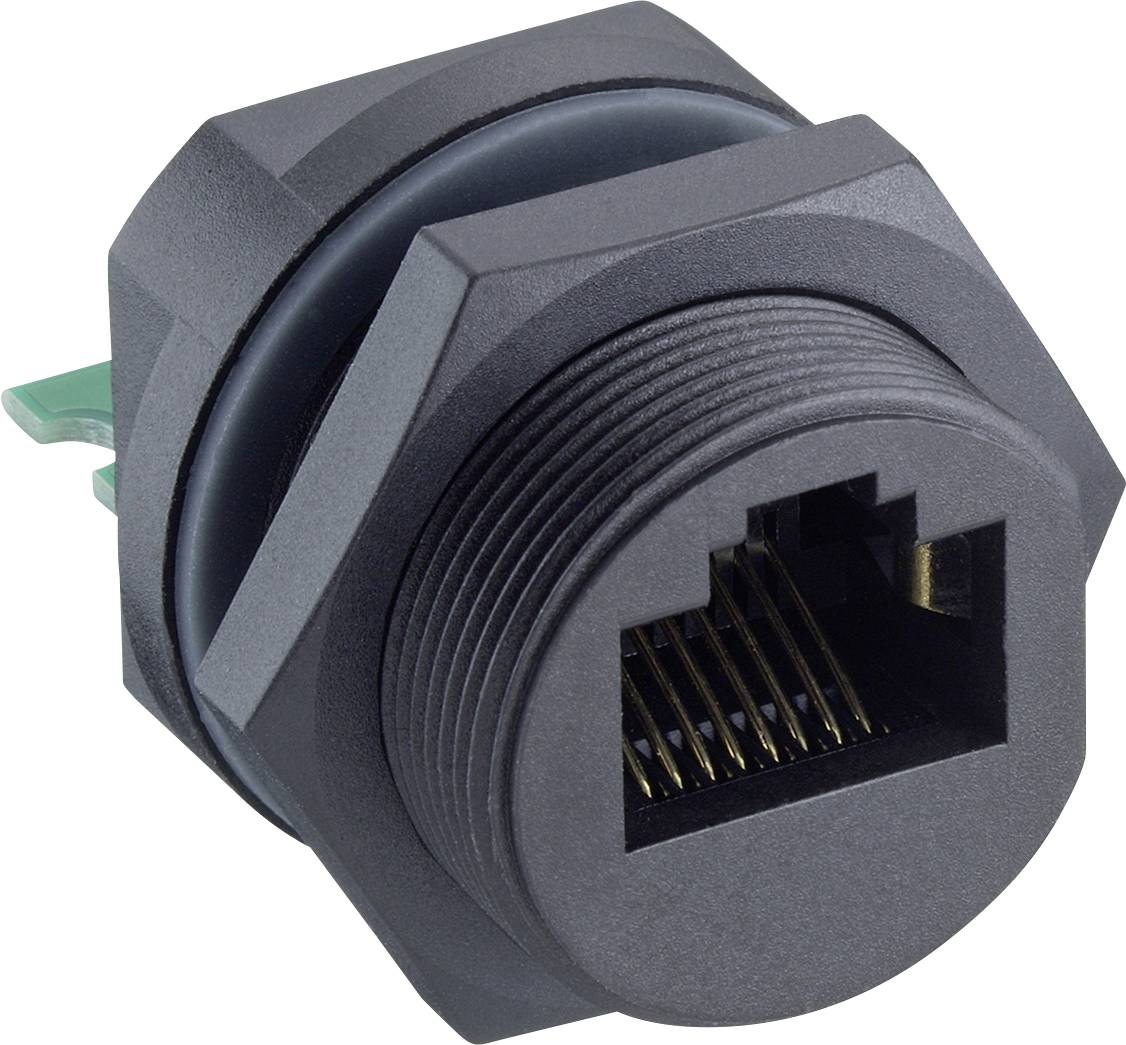

Lumberg 2543 04 Modular plug connector 168223 Connector, mount No. of pins (RJ) 8 1 pc(s)
Product type
RJ45 connector
Connector type
Connector, mount
No. of pins
8
Connector standard
RJ45
Type
2543 04
Datasheet (PDF)
Part number:
Item no:
Number
Total (€ 17.99 / piece)
€ 17.99
incl. VAT
14-day return policy included
Technical specifications
- Plug-in force ≤ 40 N
- Pull force ≥ 40 N
- Continuous resistance ≤ 30 mΩ
- Rated current 1.5 A
- Mating cycles ≥ 500
- Contact carrier PBT, V-0 acc. To UL94
- Ground contact spring: Stainless steel, nickel-plated
- PA, V-0 to UL94 casing
- PA hex nut
- Cast: Epoxy resin
- Sealing: Silicone
- Protection class: IPx7
- Rated voltage 125 V AC
- Type
2543 04
- Product type
RJ45 connector
- Connector type
Connector, mount
- No. of pins
8
- Connector standard
RJ45
- Connection
Soldering
- Content
1 pc(s)
- Contact material
CuZn, flash gold plated
- Material
PA
- Features
+ seal
straight
- Max. temperature
85 °C
- Min. temperature
-40 °C
Documents & Downloads
Datasheet
Datasheet 3805183 Lumberg 2543 04 Modular plug connector 168223 Connector, mount No. of pins (RJ) 8 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3805183 Lumberg 2543 04 Modular plug connector 168223 Connector, mount No. of pins (RJ) 8 1 pc(s)
Description
Modular build-in coupling, 8P8C (RJ45), with seal for mounting opening, IPx7, straight design, for rear mounting, with solder connections on the conducting board
This text is machine translated.
This text is machine translated.
