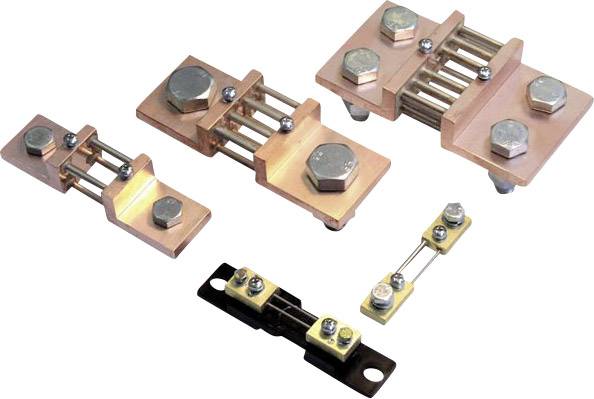

Lumel B2 200A/60mV Shunt Test current 200 A Voltage drop (num.) 60 mV Shunt resistor 200A/60mV B2
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 57.13 / piece)
€ 57.13
plus VAT.
Only 4 Piece(s) available
Technical specifications
- Accuracy class
0.2
- Dim
(L x W x H) 145 x 30 x 30 mm
- Weight
0.6 kg
- Height
30 mm
- Length
145 mm
- Width
30 mm
- Type
B2 200A/60mV
- Test current
200 A
- Voltage drop
60 mV
- Connections
Screw terminals
- Type
B
- Mounting type
Screws
- Connection
Screw terminals
- Product type
Shunt
Documents & Downloads
Datasheet
Datasheet 1562754 Lumel B2 200A/60mV Shunt Test current 200 A Voltage drop (num.) 60 mV Shunt resistor 200A/60mV B2
Description
In addition to the resistors are used to measure direct currents. The shunt resistor is a voltage proportional to the current, which then, for example, with a moving-coil instrument can be displayed. The resistances are required in Class 0.2 according to DIN 43 703. The shunt resistor flowing through transmission power generates a voltage drop with a parallel, the pre-measuring device is measured. In addition to the resistors are adjusted so that the nominal current an exactly defined voltage (60A for type B2) drops.
This text is machine translated.
This text is machine translated.
Features
- Type B without insulating base.
