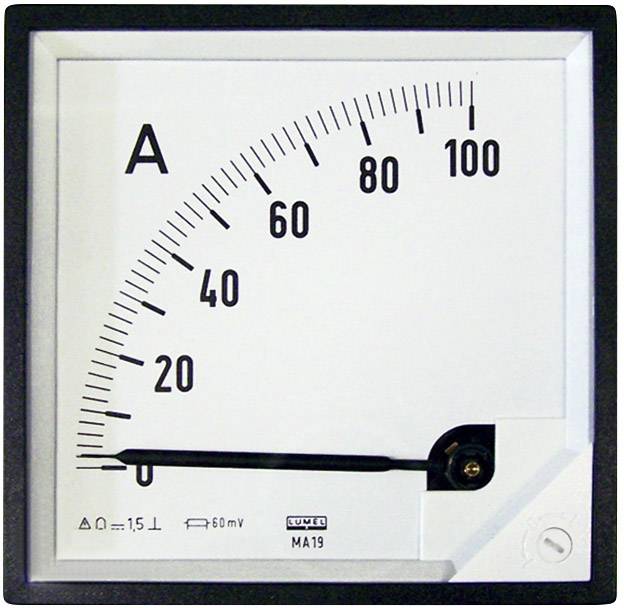

Lumel MA19 100A/60mV MA19 100A/60mV Panel-mounted measuring device 96 x 96, 96 x 96 mm 100 A/DC (60 mV) Moving coil
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 52.09 / piece)
€ 52.09
plus VAT.
Highlights & Details
Panel-mounted measuring device 96 x 96, 96 x 96 mm
- Assembly dimensions 92 x 92 mm
Technical specifications
- With standard AC scale
- Connection angle 90°
- Product type
Analogue rack-mount meter
- Dim
(W x H) 96 mm x 96 mm
- Instrument type
Moving coil
- Temperature range
-10 to +55 °C
- Type
MA19 100A/60mV
- Content
1 pc(s)
- Width
96 mm
- Height
96 mm
Manufacturer's standards (no certificate)
IP50
- Connections
Shunt connection
- Assembly dimensions
92 x 92 mm
- Accuracy class
1.5
- Type
MA 19
- Reading range
100 A/DC (60 mV)
Documents & Downloads
Datasheet
Datasheet 1383506 Lumel MA19 100A/60mV MA19 100A/60mV Panel-mounted measuring device 96 x 96, 96 x 96 mm 100 A/DC (60 mV) Moving coil
User & Safety Instructions
User & Safety Instructions 1383506 Lumel MA19 100A/60mV MA19 100A/60mV Panel-mounted measuring device 96 x 96, 96 x 96 mm 100 A/DC (60 mV) Moving coil
Description
The Moving coil meter is suitable for the measurement of direct currents or voltages. The measuring device can be installed in control panels or machines. The front frame, the front windscreen and the scale can be easily replaced.
This text is machine translated.
This text is machine translated.
Features
- Incl. Terminal cover and screw clamp mounting
- This text is machine translated.
Scope of delivery
- 2 fastening elements
- Terminal cover
- User manual.
