Name: Lumitronix LED array Warm white (L x W x H) 40 x 40 x 4.64 mm
Brand: Lumitronix
SKU: 1693079
Availability: InStock

'Close-up of a complex LED circuit board with multiple connection points, small electronic components, and distinct connections.'

A light image composed of many small lights in a square pattern on a dark background, creating geometrically intriguing shadows.

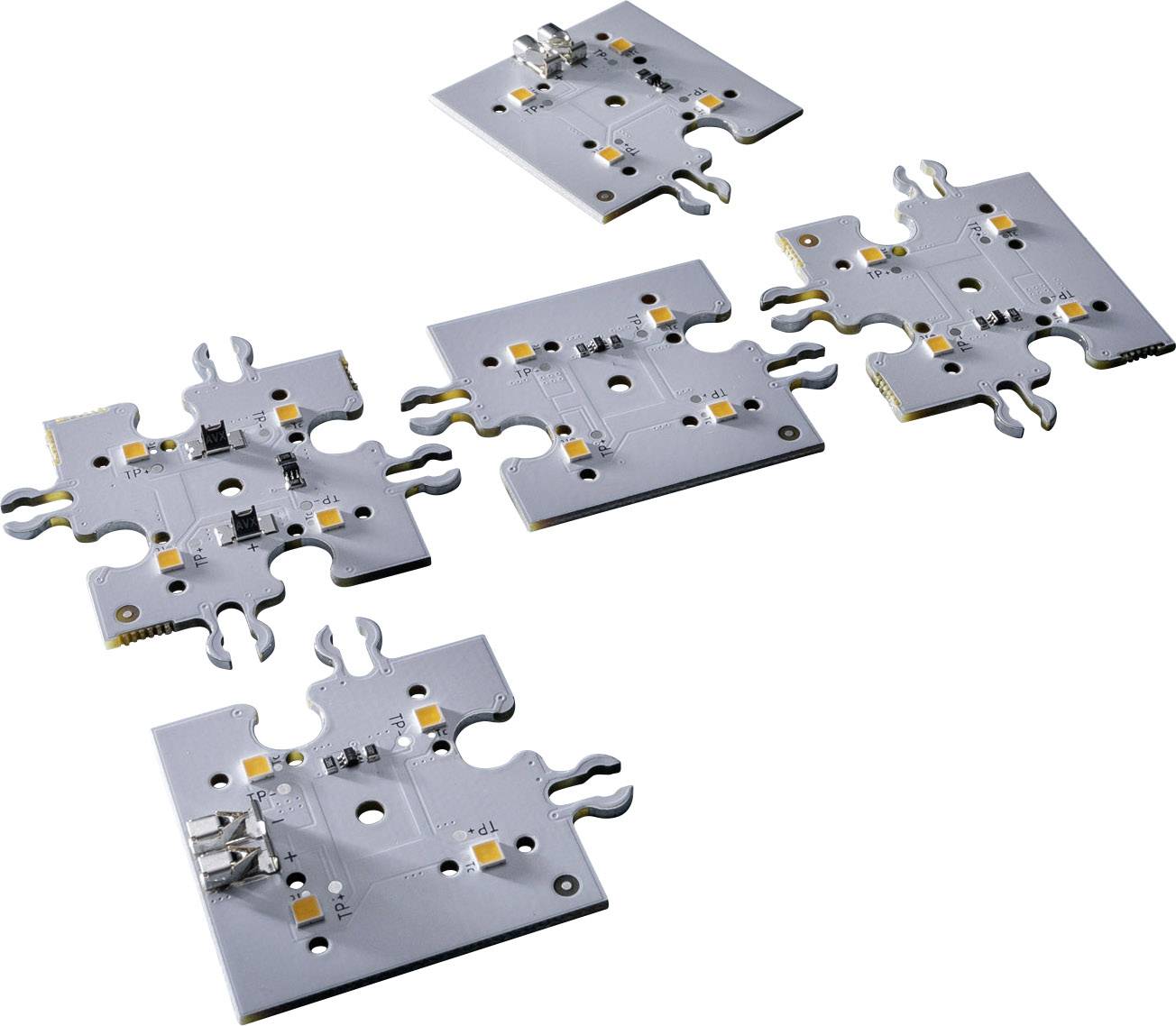

Five silver LED circuit boards in puzzle form with electronic components suitable for connection and illumination.

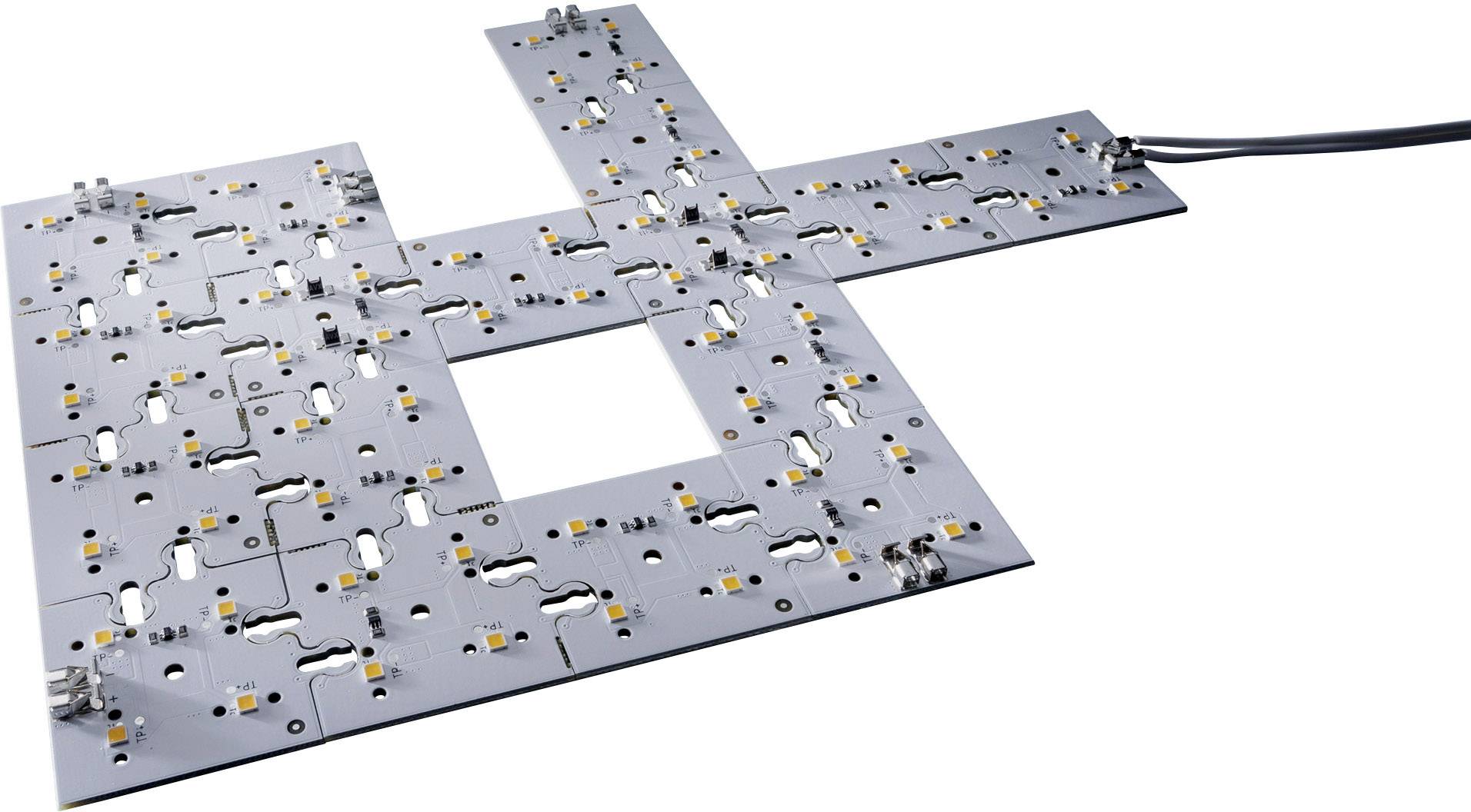

Cross-shaped LED module with cable connection, suitable for bespoke lighting solutions.

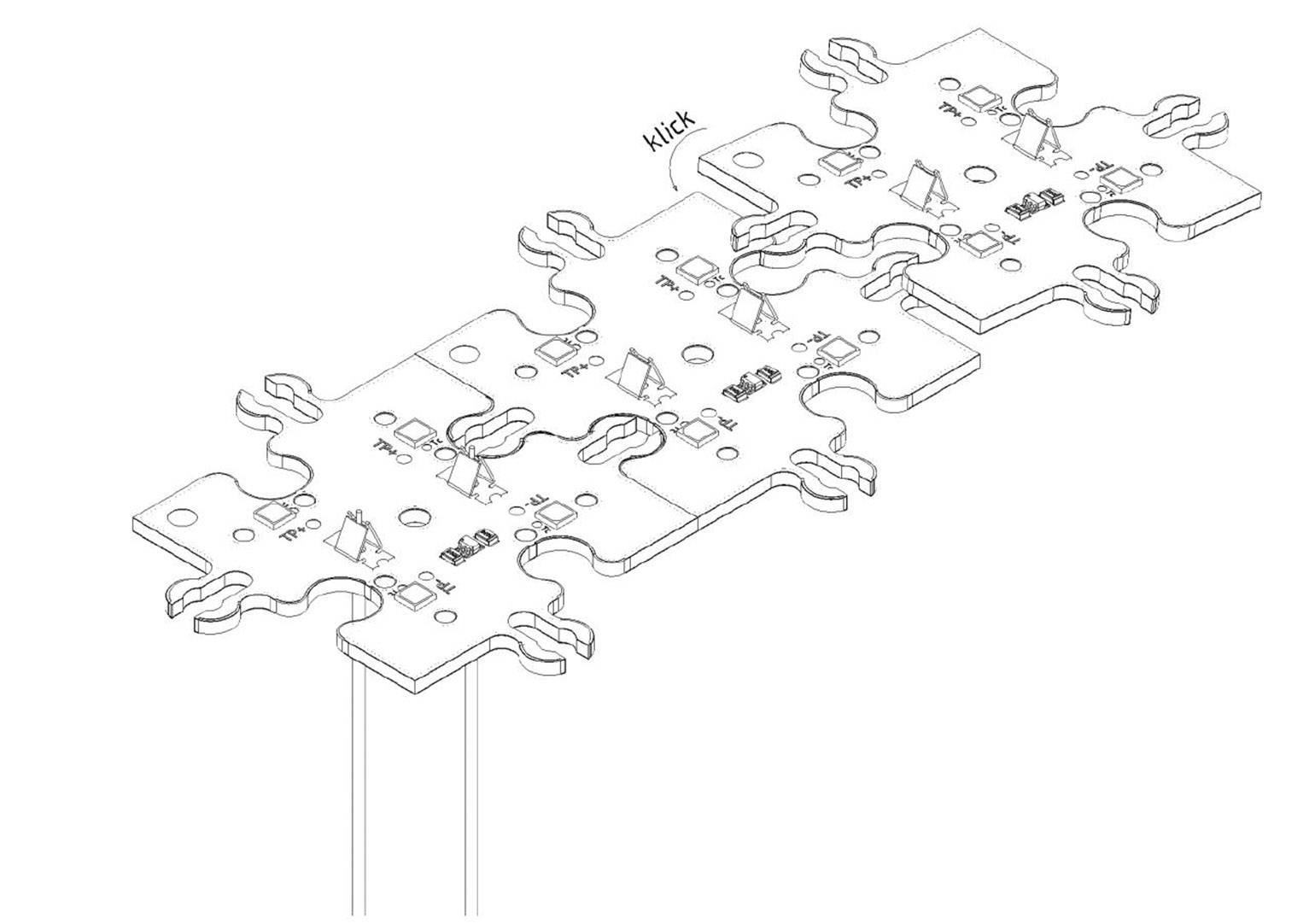

Technical drawing of a modular electronic circuit with multiple interconnected circuit boards. Components and connections are visible.

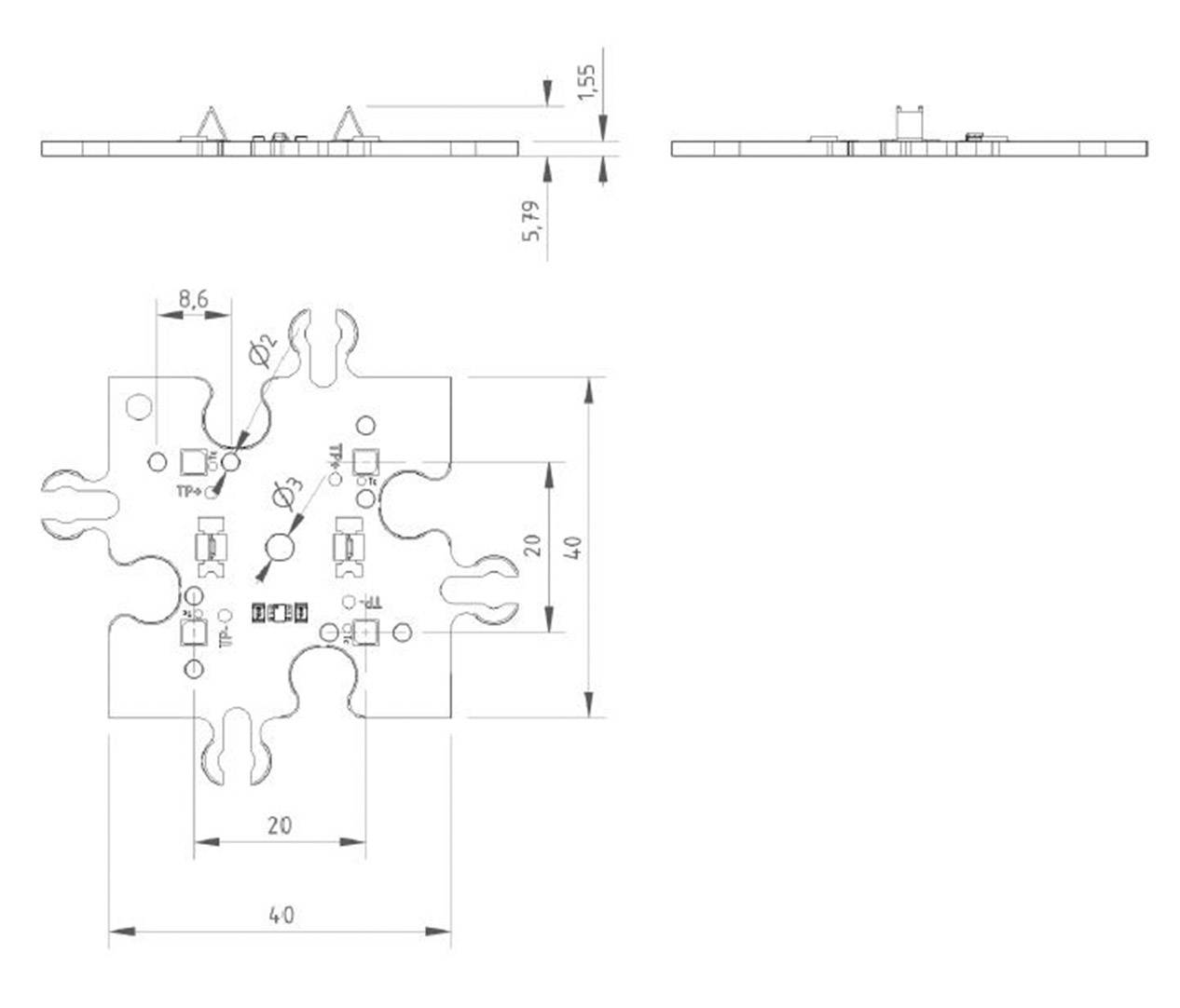

Technical drawing of a square printed circuit board with dimensions and component view, showing main dimensions and component positions.

1/6

Product type

LED array

Factory colour

Warm white

Colour temperature

2700 K

Dim

(L x W x H) 40 x 40 x 4.64 mm

Radiation angle

120 °

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

35 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 5.99 / piece)

€ 5.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

ConextMatrix

Dimmable

Technical specifications

Life> 60000 h

Factory colour: Warm white

Product type: LED array

Colour temperature: 2700 K

Dim: (L x W x H) 40 x 40 x 4.64 mm

Radiation angle: 120°

LEDs: 4

Forward voltage U(F): 24 V

Forward current I(F): 37 mA

Width: 40 mm

Height: 4.64 mm

Length: 40 mm

RoHS-compliant: Yes

Documents & Downloads

Datasheet

Datasheet 1693079 Lumitronix LED array Warm white (L x W x H) 40 x 40 x 4.64 mm

User & Safety Instructions

User & Safety Instructions 1693079 Lumitronix LED array Warm white (L x W x H) 40 x 40 x 4.64 mm

Information

Information 1693079 Lumitronix LED array Warm white (L x W x H) 40 x 40 x 4.64 mm

Description

LUMITRONIX ® with the new patented conext connection system a real innovation for the connection of LED modules. Thanks to the puzzle form the module can be easily without connector, disconnect and connect together again in a new form. The new conext-system takes place in three new LUMITRONIX® products application. The ConextMatrix LED modules are available in five different forms, which opens up many possibilities for free light fields and a wide range of applications. ConextPlay is for backlighting, model making, or just the playful learning and experimentation has been developed.
With the new ConextBar LED modules, there is now the possibility LED-strips without changing the LED distance only through cooperation or VU meter connect with each other to expand or short.
Cone Xmatrix:
The newly developed ConextMatrix LED modules make it even easier, free forms and large surfaces made of LED modules with the same LED-distance to create. Since there is no longer needed and the connection solderless connector can take place, the installation is very simple. Via a feed module can be up to 270 modules can be supplied in order to avoid differences and brightness, can be easily at any other module again can be fed. It is a constant voltage supply via large surfaces way possible.
