Buy m-e modern-electronics Light curtain DGF-300 White incl. motion detector 41058

Two white intercom systems with speakers and buttons, set up on a table. The one on the left has a sensor, the one on the right does not.

A white motion sensor in a rectangular shape with multiple ventilation holes and a mounting base.

Public address communication system with speaker and microphone. On the left, details of the microphone are shown, on the right a control panel with indicator lights.

1/4

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

11 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 60.50 / piece)

€ 60.50

plus VAT.

Report legal concerns

Highlights & Details

Radio entry detector DGF-300

Ideal for monitoring rooms, entrances or terraces
Optional battery operation possible
Can be extended to up to 8 transmitter and receiver

Technical specifications

Battery type: 4 x AA battery, 1.5V (per device)

Detection angle: 140°

: 100 m

: Doesn't apply

Factory colour: White

Display: No

Component: Light curtain

Features: incl. motion detector

Power supply (LOV): mains-powered
battery-powered

Radio frequency: 434 MHz

Operating voltage: 230 V

Receiver size: 150 x 115 x 28 mm

Transmitter dimensions: 150 x 115 x 28 mm

Viewing width: 8 m

Power consumption (idle/triggered): 100 mA

Frequency: 434 MHz

Weight: 480 g

Product type: Mini alarm system

Documents & Downloads

Datasheet

Datasheet 1554487 m-e modern-electronics Light curtain DGF-300 White incl. motion detector 41058

User & Safety Instructions

User & Safety Instructions 1554487 m-e modern-electronics Light curtain DGF-300 White incl. motion detector 41058

Conformity certificate

Conformity certificate 1554487 m-e modern-electronics Light curtain DGF-300 White incl. motion detector 41058

Warranty Terms

Warranty Terms 1554487 m-e modern-electronics Light curtain DGF-300 White incl. motion detector 41058

Description

Radio entry detector DGF-300
Infrared motion detector - with transmitter and receiver, can be used as wall or floor-standing device
The wireless entry detector indicates persons entering the surveillance area of the motion detector.
Ready for immediate use without installation
Ideal for monitoring rooms, inputs, ETX transit zones.
Wireless range up to 100m (free field) - expandable with wireless repeater (Mod. CUVEO CR-R1
Can be coded individually to prevent crosstalk with similar devices in your neighborhood
Expandable: Up to 8 transmitters and receivers can be used each.

This text is machine translated.

Features

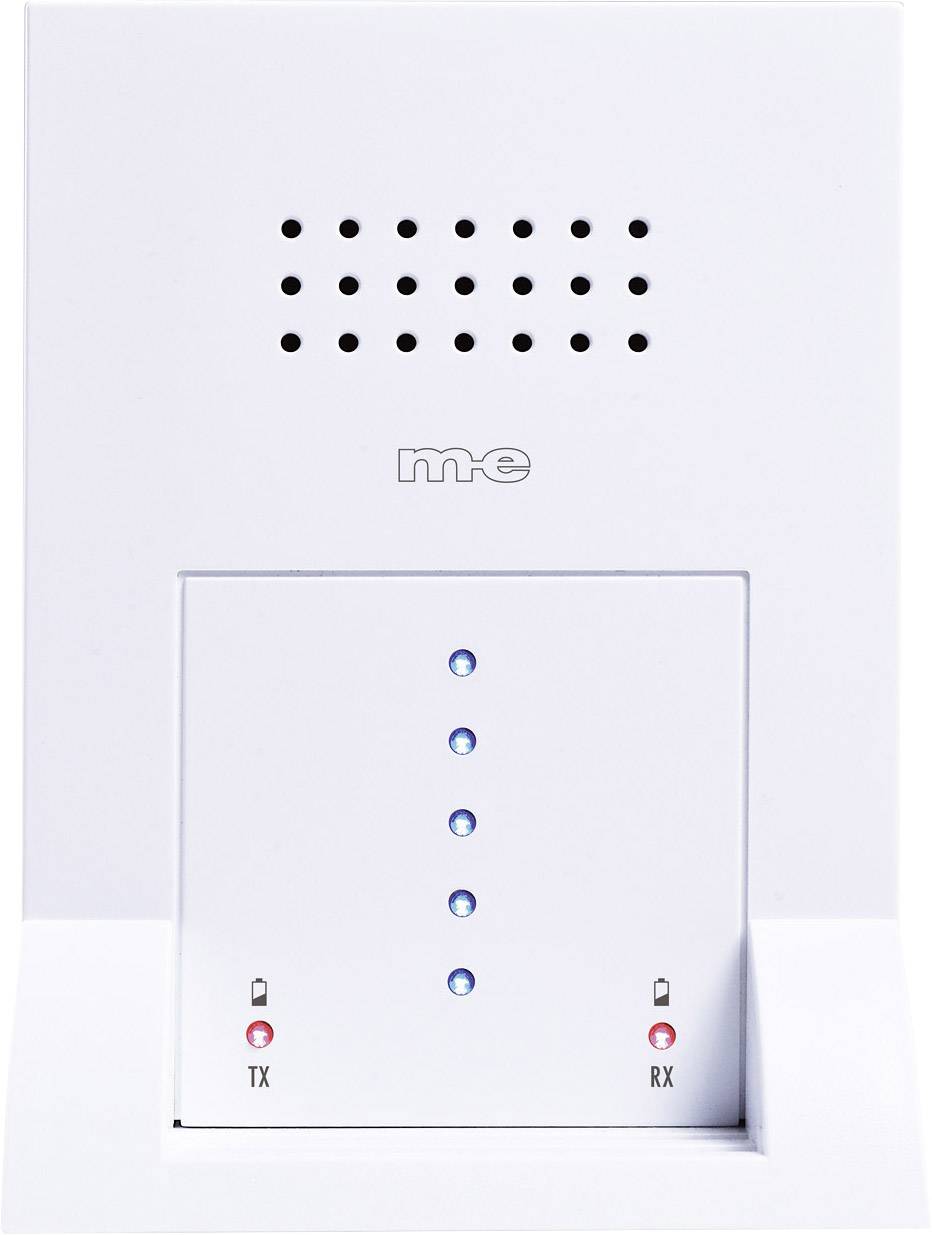

Receiver
Optical and acoustic message ( 8 adjustable melodies )
Ring tone volume adjustable in 2 levels
Battery control light for transmitter and receiver (warns with low battery)
Power supply: Optionally with supplied power supply unit or with 4x 1.5V AA battery (not included).
Transmitter:
Motion detector for indoor and roofed outdoor area
Detection range approx. 8 meters
140° detection range all-round or targeted monitoring with 3 different detection limiters
8 ring tones can be selected
Motion detector delay adjustable 1.10 or 20 sec.
Motion detector reaction sensitivity adjustable in 3 levels
Ring tone volume adjustable in 2 levels
Selection switch for: Melody transmitter + receiver
Tune only receivers
Alarm tone transmitter + melody receiver.
Power supply: Optionally with supplied mains adapter or with 4x 1.5V AA battery (not included)
