Sygonix Light curtain incl. LED 120 dB SY-5045276
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 21.00
3
4% = € 0.82
€ 20.18
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 21.00 / piece)
€ 21.00
plus VAT.
Highlights & Details
Entry detector
- 5 audio tunes
- 4 volume levels
- Motion detector (PIR sensor) with approx. 6 m range
- Speaker + 2 red LEDs
Technical specifications
- Sensor unit:Power supply: 3 batteries of type AAA/Micro
- Transmission frequency: 433 MHz
- Wireless range: up to 120 m
- PIR sensor detection angle: horizontal about 100°
- PIR range: approx. 6 m
- Dimensions (H x W x D): 145 x 90 x 45 mm
- Weight: approx. 60 g
- Signalling unit:Power supply: 3 batteries of type “Baby/C” or alternatively via power supply (not included), 5 V/DC, min. 500 mA, round plug 3.5/1.3 mm
- Loudness: 91 - 125 dB
- Dimensions (H x W x D): 95 x 65 x 33 mm
- Weight: approx. 150 g
- Product type
Mini alarm system
- Component
Light curtain
- Power supply (LOV)
battery-powered
mains-powered
- Detection angle
100°
120 m
Doesn't apply
- Receiver size
(B x H x T) 65 x 95 x 33 mm
- Transmitter dimensions
(B x H x T) 90 x 145 x 45 mm
- Viewing width
6 m
- Radio frequency
433 MHz
- Features
incl. LED
- Sound pressure
120 dB
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2522638 Sygonix Light curtain incl. LED 120 dB SY-5045276
Warranty Terms
Warranty Terms 2522638 Sygonix Light curtain incl. LED 120 dB SY-5045276
Description
This text is machine translated.

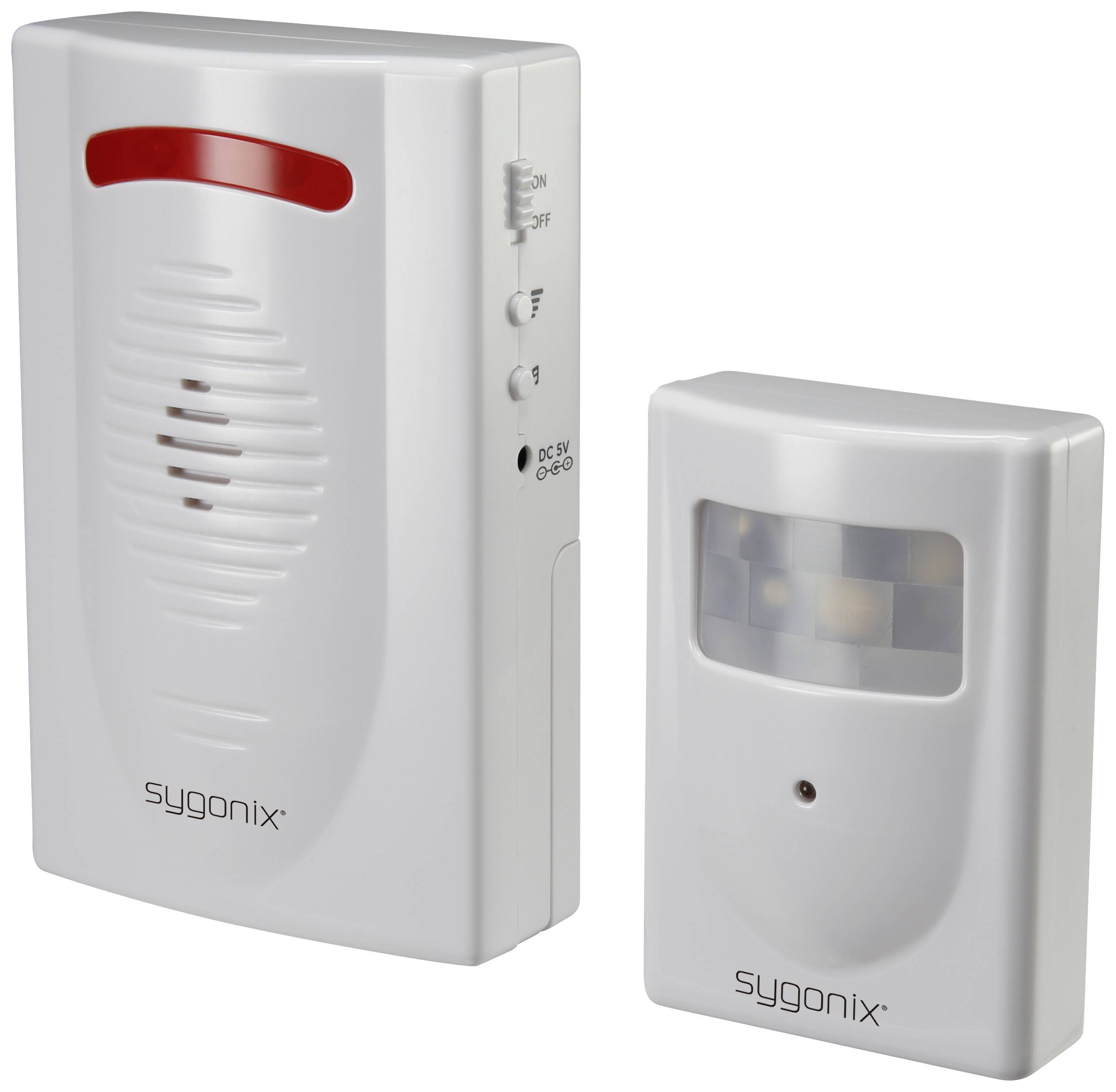

The passage detector signals, for example, the entry of a person in the sales room of a business. He also serves as a perfect deterrent for house or garage and protects against undetected access.

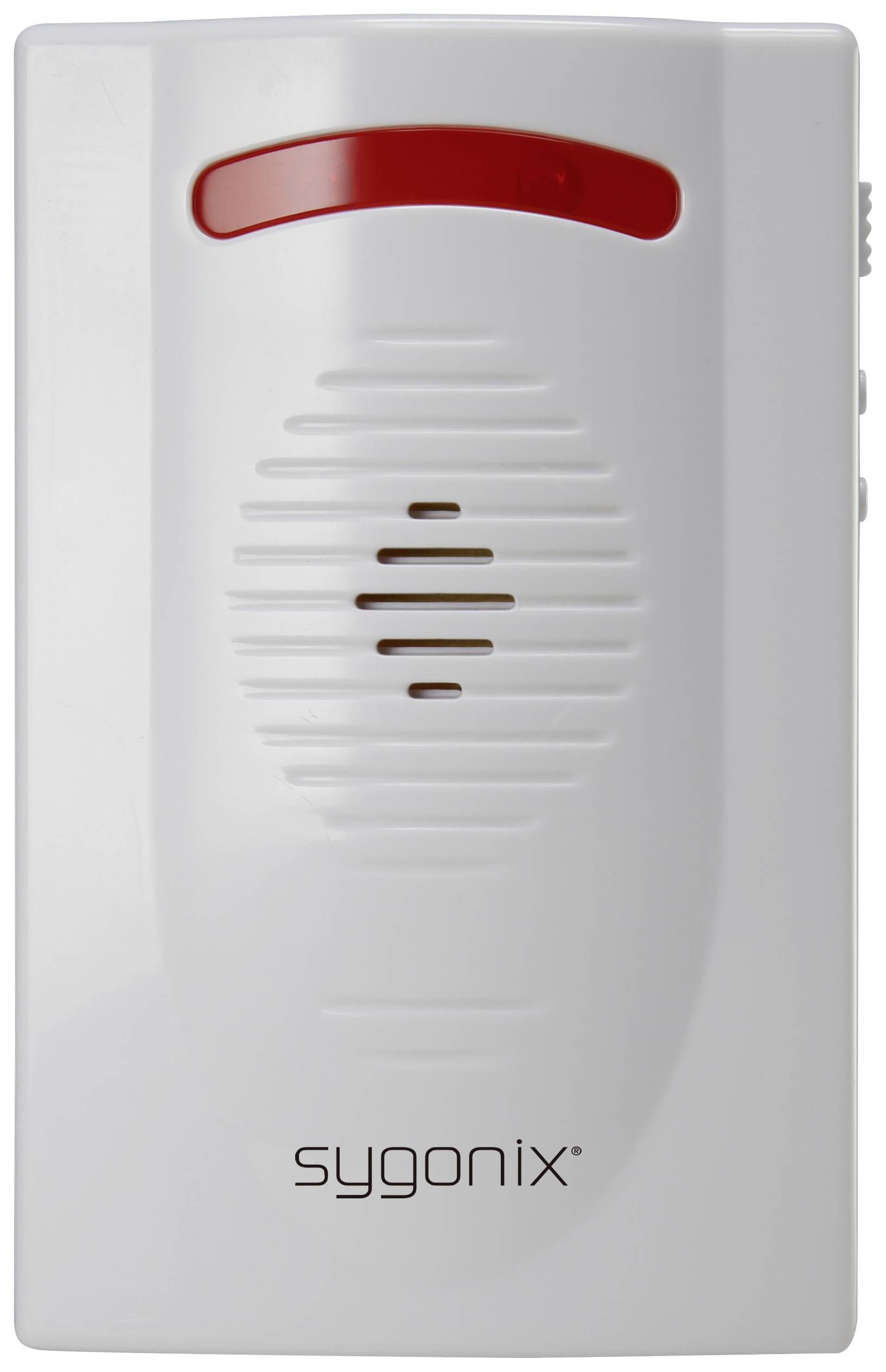

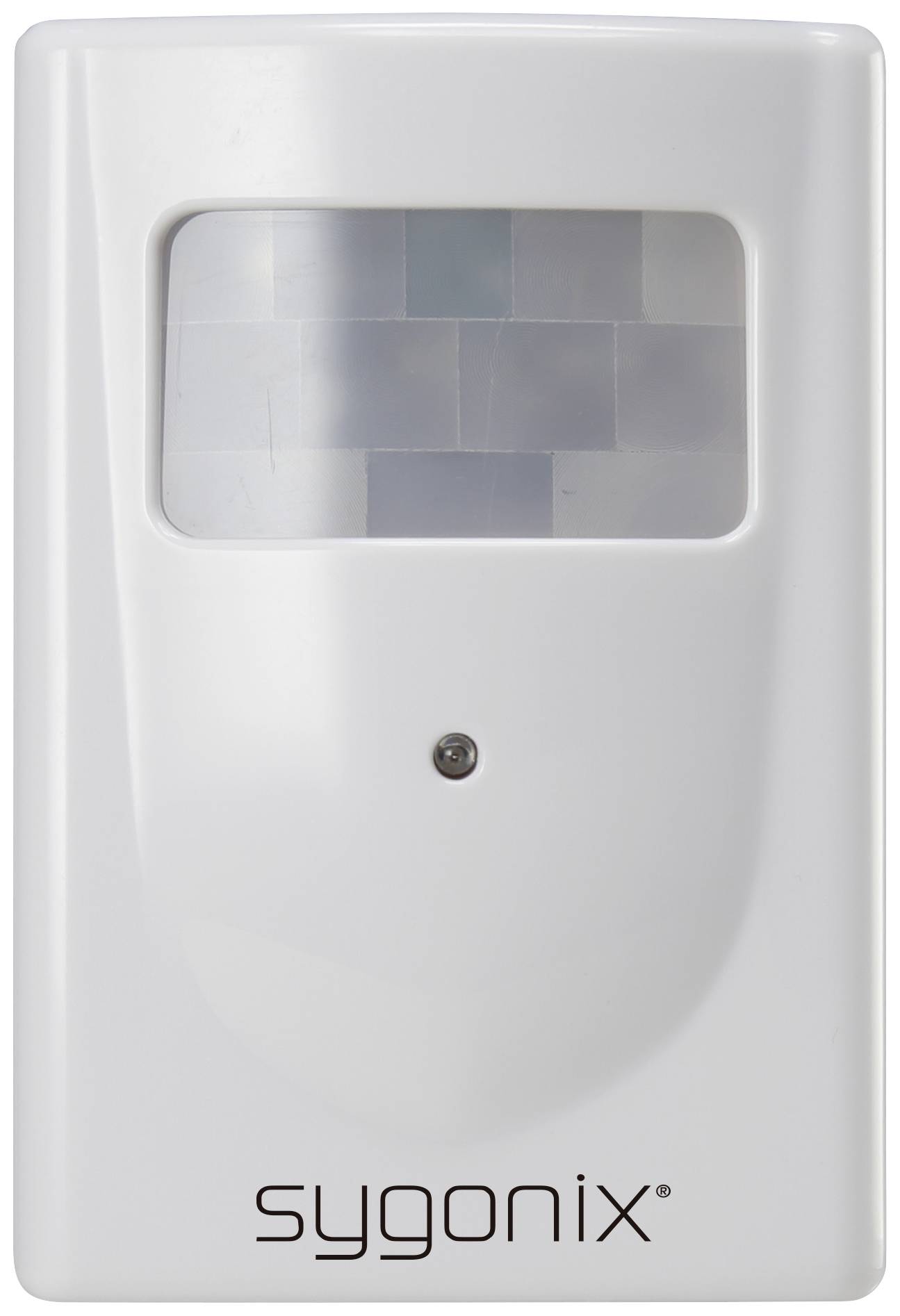

A PIR sensor is built into the sensor unit, which responds to temperature changes within the detection range, e.g. if a person enters the detection range. Thereupon, the signal unit sends a wireless signal to the signalling unit. This emits an audio signal (5 different signal tones and 4 different volume levels); two LEDs also flash.
The sensor and signalling units are operated with batteries. The signalling unit, however, can also be operated with an external power supply (not included, can be ordered separately).
The passage detector signals, for example, the entry of a person in the sales room of a business. He also serves as a perfect deterrent for house or garage and protects against undetected access.
A PIR sensor is built into the sensor unit, which responds to temperature changes within the detection range, e.g. if a person enters the detection range. Thereupon, the signal unit sends a wireless signal to the signalling unit. This emits an audio signal (5 different signal tones and 4 different volume levels); two LEDs also flash.
The sensor and signalling units are operated with batteries. The signalling unit, however, can also be operated with an external power supply (not included, can be ordered separately).
Scope of delivery
- Sensor unit
- Signal unit
- Installation materials (3 screws, 3 dowels, 3 rubber rings)
- Operating instructions
