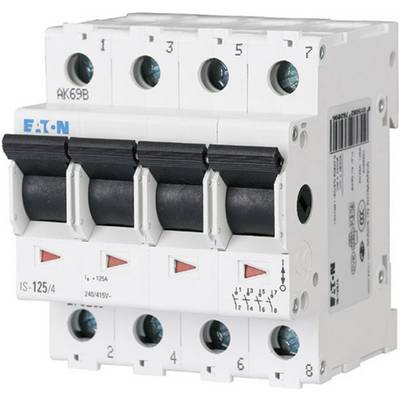

Main switch 4-pin 125 A 4 breakers, 4 makers 240 V AC Eaton 276289
Product type
Main switch
Nominal voltage
240 V AC
Number of pins
4
Nominal current - rounded value
125 A
Contact type
4 breakers
4 makers
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 174.99 / piece)
€ 174.99
incl. VAT
14-day return policy included
Technical specifications
- Rated breaking capacity: 10 kA
- Operating ambient temperature: -5 °C to +40 °C
- Width in division units: 4
- Mounting depth: 69.5 mm
- Short-circuit resistance (ICW): 2 kA
- with signal lamp: No
- Protection class (IP): IP40
- Power loss of the equipment, current-dependant [PVID]: 22 W
- Power loss per pole, current-dependant [PVID]: 6.2 W.
- Product type
Main switch
- Contact type
4 breakers
4 makers
- Nominal voltage
240 V AC
- Number of pins
4
- Nominal current
125 A
- Nominal current - rounded value
125 A
- No. of partitions
4
- Depth
69.5 mm
IP00
AC
Other
FALSE
69.5 mm
125 A
415 V
0 W
4
Other
2 kA
10 kA
4
Symbol "arrows"
Other
Other
240 V
IP40
4
4
0
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1716994 Main switch 4-pin 125 A 4 breakers, 4 makers 240 V AC Eaton 276289
User & Safety Instructions
User & Safety Instructions 1716994 Main switch 4-pin 125 A 4 breakers, 4 makers 240 V AC Eaton 276289
Description
Main circuit breaker switch is -125/4
This text is machine translated.
This text is machine translated.
