Manhattan DisplayPort Cable DisplayPort plug, DisplayPort plug 3.00 m Black 353625 8K UHD DisplayPort cable
EAN:
Part number:
Item no:
Product type
DisplayPort cable
Connection type
DisplayPort
Version
Cable
Connection type
DisplayPort to DisplayPort
Connections
DisplayPort plug
DisplayPort plug
Number
Total (€ 10.92 / piece)
€ 10.92
plus VAT.
Manhattan 8K@60Hz DisplayPort 1.4
Highlights & Details
- Supports resolutions 8K@60Hz, 4K@120Hz, 1440p@144Hz (UWQHD), 1440p@165Hz (WQHD) and 1080p@240Hz
- HDR10 for perfect contrast and brilliant colors
- Supports Dolby vision™ and Dolby Atmos®
- Up to 32.4 Gbps bandwidth
- Supports Multi-Stream Transport (MST) to daisy-chain multiple displays
Technical specifications
- Product type
DisplayPort cable
- Connection type
DisplayPort
- Version
Cable
- Connection type
DisplayPort to DisplayPort
- Connections
DisplayPort plug
DisplayPort plug
- Connector version
straight
- Video resolution
7680 x 4320 Pixel
- Cable length
3.00 m
- Factory colour
Black
- Cable features
8K UHD
- Signal flow
Bidirectional (A↔B)
- Cable use
TV/monitor
- Cable design
Round
Copper
28
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2482348 Manhattan DisplayPort Cable DisplayPort plug, DisplayPort plug 3.00 m Black 353625 8K UHD DisplayPort cable
Description
DisplayPort cable with future-proof 8K@60Hz for high-end gaming and AV applications
This Manhattan DisplayPort monitor cable is ready to meet the most demanding graphics challenges in gaming, digital signage and other high-end AV applications. The state-of-the-art DisplayPort 1.4 standard delivers images in brilliant 8K (7680 x 4320) at fast 60 Hz or 4K UHD at ultra-fast 120 Hz with HDR10 for perfect color and contrast. The braided sheath is non-knotted and extremely robust. It covers a triple shielding, which reliably protects against electromagnetic interference. Gold-plated contacts ensure the highest signal quality.
This text is machine translated.
This Manhattan DisplayPort monitor cable is ready to meet the most demanding graphics challenges in gaming, digital signage and other high-end AV applications. The state-of-the-art DisplayPort 1.4 standard delivers images in brilliant 8K (7680 x 4320) at fast 60 Hz or 4K UHD at ultra-fast 120 Hz with HDR10 for perfect color and contrast. The braided sheath is non-knotted and extremely robust. It covers a triple shielding, which reliably protects against electromagnetic interference. Gold-plated contacts ensure the highest signal quality.
This text is machine translated.
Features

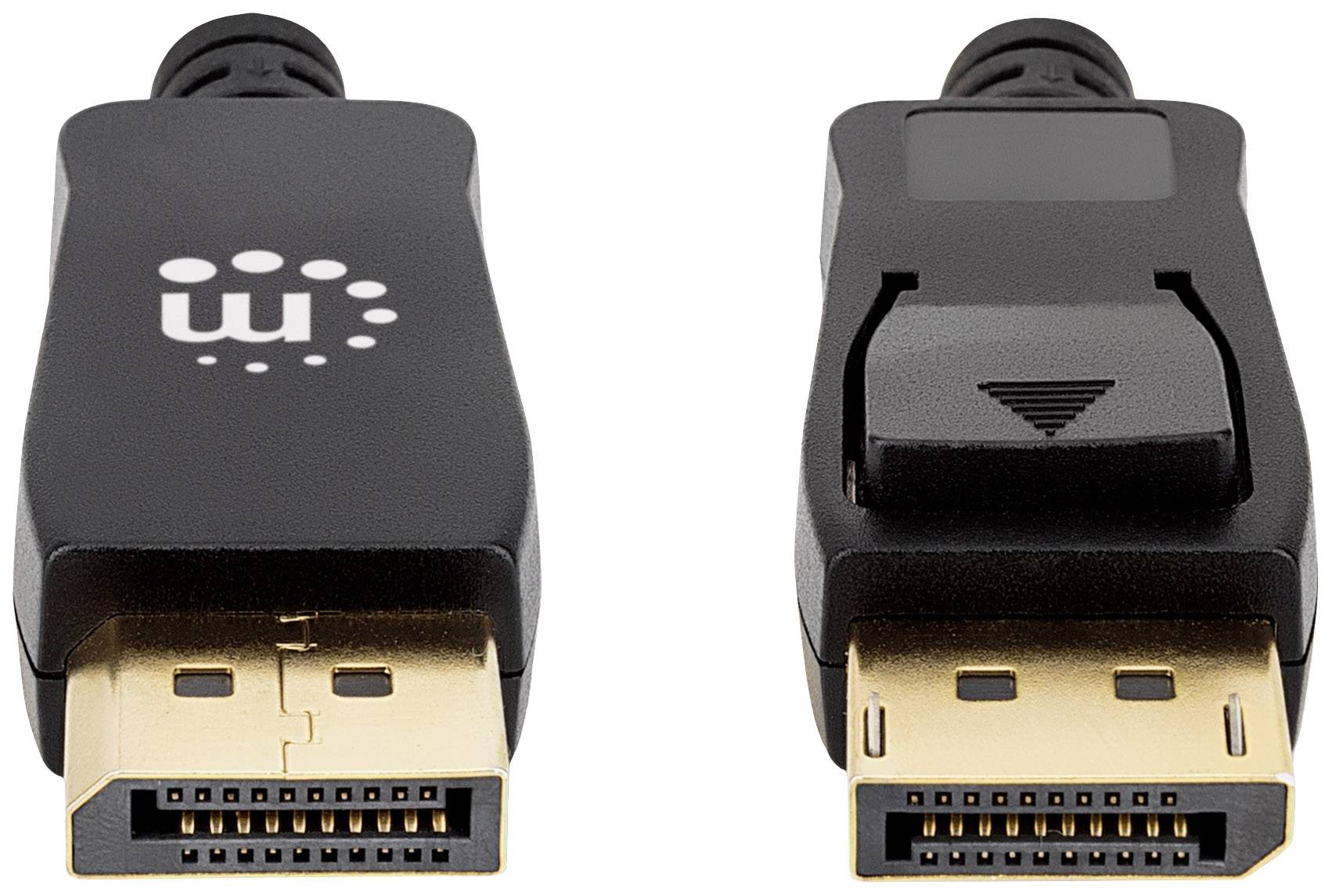

- 2 x 20-pin DisplayPort plug with latch
- 19 pins assigned
- Gold-plated contacts
- ABS plastic grommet
- Cable
- AWG 30
- Triple shielded with aluminum and mylar foil
- Withstand voltage 300 VDC
- Insulation resistance 5 MΩ
- Resistance 10 ohms
- Braided sheath
- Ambient conditions
- Ambient temperature: 0 - 40°C
- Storage temperature -20°C - 60°C.
- Humidity (non-condensing): 0 - 96%
