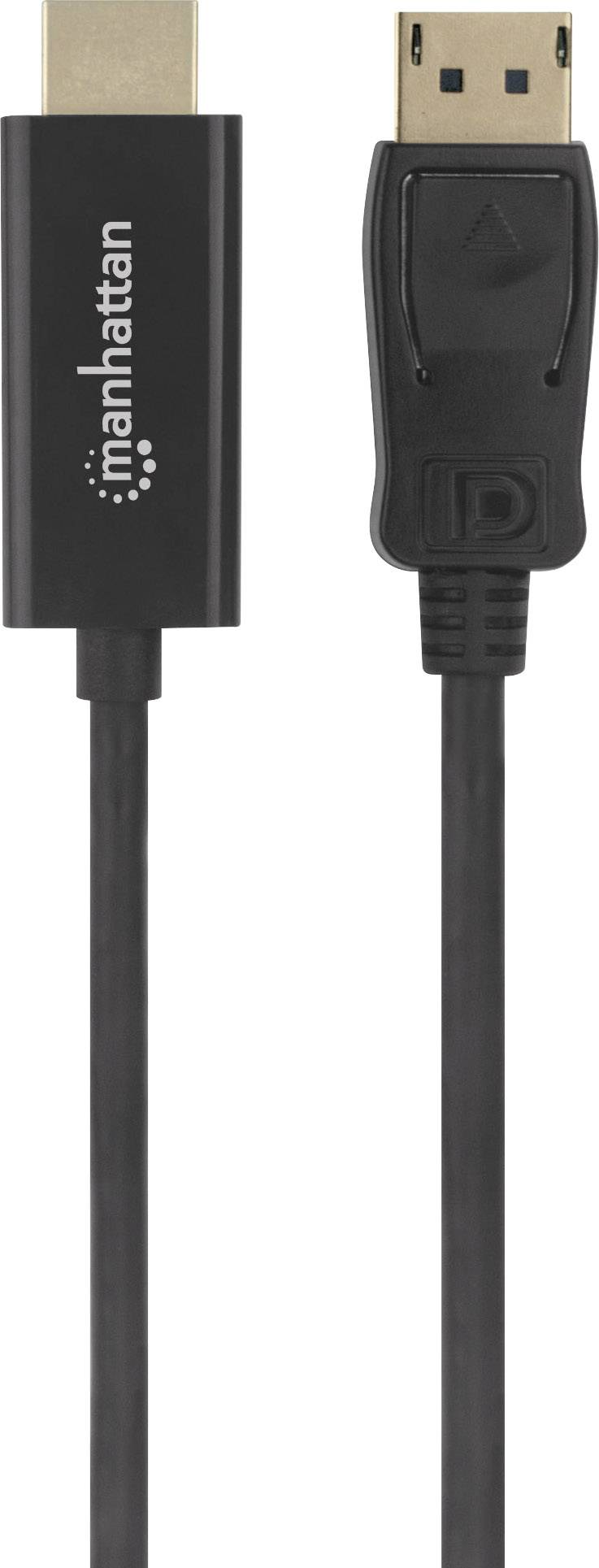

Name: Manhattan DisplayPort / HDMI Adapter cable DisplayPort plug, HDMI-A plug 1.00 m Black 152662 DisplayPort cable
Brand: Manhattan
SKU: 2356805
Availability: InStock

Highlights & Details

Manhattan 1080p DisplayPort to HDMI cable DisplayPort plug to HDMI plug 1 m. black

For connecting a DisplayPort source to a full HD display with HDMI port
Supports Full HD resolutions up to 1080p@60Hz (1920x1080p)
Audio pass-through for uncompressed digital 7.1, 5.1 and 2 channels
HDCP compliant for protected content
DisplayPort plug with latch for connection with secure hold

Technical specifications

Product type: DisplayPort cable

Connection type: DisplayPort
HDMI

Version: Adapter cable

Connection type: DisplayPort to HDMI-A

Connections: DisplayPort plug
HDMI-A plug

Connector version: straight

Video resolution: 1920 x 1080 Pixel

Max. frequency: 60 Hz

Cable length: 1.00 m

Factory colour: Black

Signal flow: Unidirectional (A→B)

Cable use: TV/monitor

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2356805 Manhattan DisplayPort / HDMI Adapter cable DisplayPort plug, HDMI-A plug 1.00 m Black 152662 DisplayPort cable

Description

For connecting a DisplayPort PC to a screen or projector HDMI port
Many computers have the DisplayPort output, which is very popular in the desktop PC area, while many monitors often offer only one HDMI port. TV sets and projectors basically do without the DisplayPort interface. This Manhattan cable offers the suitable connection solution and thereby comes without power supply or separate adapter. Also ideal for connecting multiple displays to a PC.

This text is machine translated.

Features

Resolution: Up to 1920x1080p at 60 Hz (Full HD, 1080p)
Only for converting a DisplayPort signal to an HDMI signal, not the other way around
Connections:
1 x 20-pin DisplayPort plug
1 x 19-pin HDMI plug
Gold-plated contacts
Physical data
Length: 1 m
Weight: 70 g
Molded PVC and ABS housing
Ambient conditions
Operating temperature 0 - 40 ° C.
Storage temperature: -20 - 60 ° C.
Humidity (non-condensing): 0 - 96%

System requirements

Windows XP/Vista/7/8.1/10
Linux
Mac 9.x/10.x or higher

Description

For connecting a DisplayPort PC to a screen or projector HDMI port
Many computers have the DisplayPort output, which is very popular in the desktop PC area, while many monitors often offer only one HDMI port. TV sets and projectors basically do without the DisplayPort interface. This Manhattan cable offers the suitable connection solution and thereby comes without power supply or separate adapter. Also ideal for connecting multiple displays to a PC.

This text is machine translated.

Features

Resolution: Up to 1920x1080p at 60 Hz (Full HD, 1080p)
Only for converting a DisplayPort signal to an HDMI signal, not the other way around
Connections:
1 x 20-pin DisplayPort plug
1 x 19-pin HDMI plug
Gold-plated contacts
Physical data
Length: 1 m
Weight: 70 g
Molded PVC and ABS housing
Ambient conditions
Operating temperature 0 - 40 ° C.
Storage temperature: -20 - 60 ° C.
Humidity (non-condensing): 0 - 96%
