Name: Manhattan HDMI / DVI Adapter cable HDMI-A plug, DVI-D 24+1-pin plug 1.80 m Black 372503-CG screwable HDMI cable
Brand: Manhattan
SKU: 756577
Availability: InStock

Highlights & Details

Manhattan HDMI Cable, HDMI Male to DVI-D 24+1 Male, Dual Link, Black, 1.8 m (6 ft.)

HDMI 19-pin male to DVI-D 24+1 male gold plated connections
Connect between HDMI and DVI-D video source and display
Fully shielded to reduce EMI and other interference sources
Supports existing HD (720p, 1080i and 1080p/60) enhanced (480p) and standard (NTSC or PAL) video formats
Molded PVC boot

Technical specifications

Product type: HDMI cable

Connection type: HDMI
DVI

Version: Adapter cable

Connection type: HDMI-A to DVI 24+1 -pin

Connections: HDMI-A plug
DVI-D 24+1-pin plug

Connector version: straight

Cable version: HDMI High Speed
DVI-D Dual Link

Video resolution: 1920 x 1200 Pixel

Cable length: 1.80 m

Factory colour: Black

Cable features: screwable

Signal flow: Bidirectional (A↔B)

Cable use: TV/monitor

Cable design: Round

: CCS

: 30

Shielding: Braid shielding/shielding film

Halogen-free: No

Weight: 0.109

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 756577 Manhattan HDMI / DVI Adapter cable HDMI-A plug, DVI-D 24+1-pin plug 1.80 m Black 372503-CG screwable HDMI cable

Description

Superior connections for quality digital video performance.
MANHATTAN HDMI to DVI Cables help deliver the brightest, most accurate colors and sharpest detail when connecting high-definition televisions, LCD and plasma displays, digital satellite receivers, DVD players, digital projectors and other DVI- or HDMI-equipped display devices. MANHATTAN HDMI to DVI Cables are engineered and constructed of quality materials to deliver dependable transmissions in digital video applications. Full foil and braided shielding, molded boots with strain relief, protective PVC jackets and gold-plated connections help provide maximum conductivity and clear, crisp signal transmissions with reduced EMI interference and distortion

Features

Standards and Certifications:
Meets or exceeds existing HDMI and DVI-D standards
Compatible with DVI-D dual link devices
UL
ISO
RU
CE
Contacts

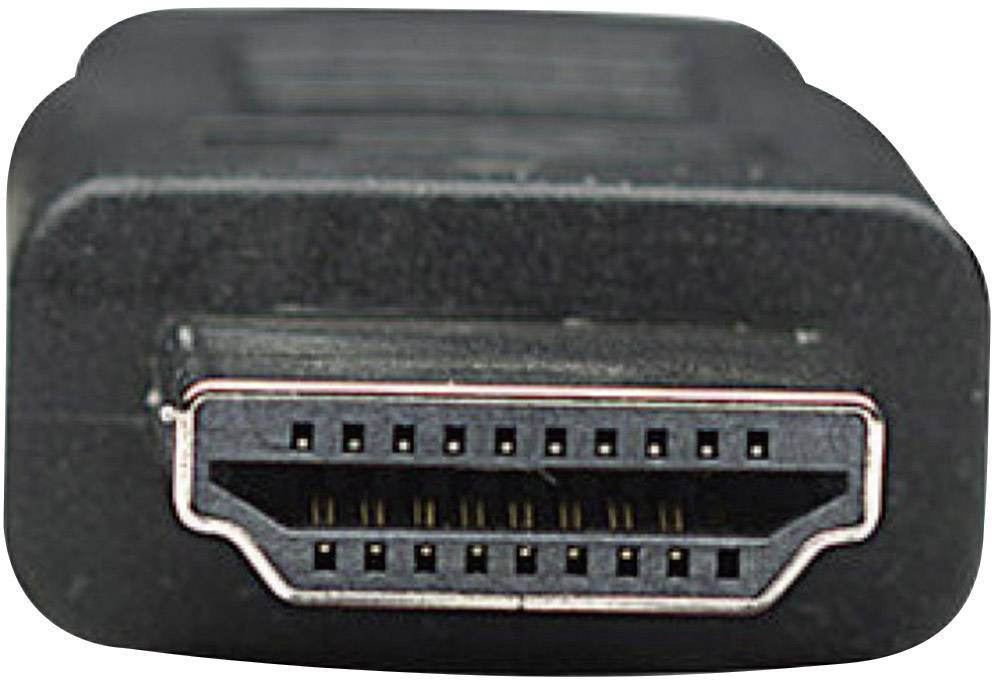

(1) HDMI 19-pin male

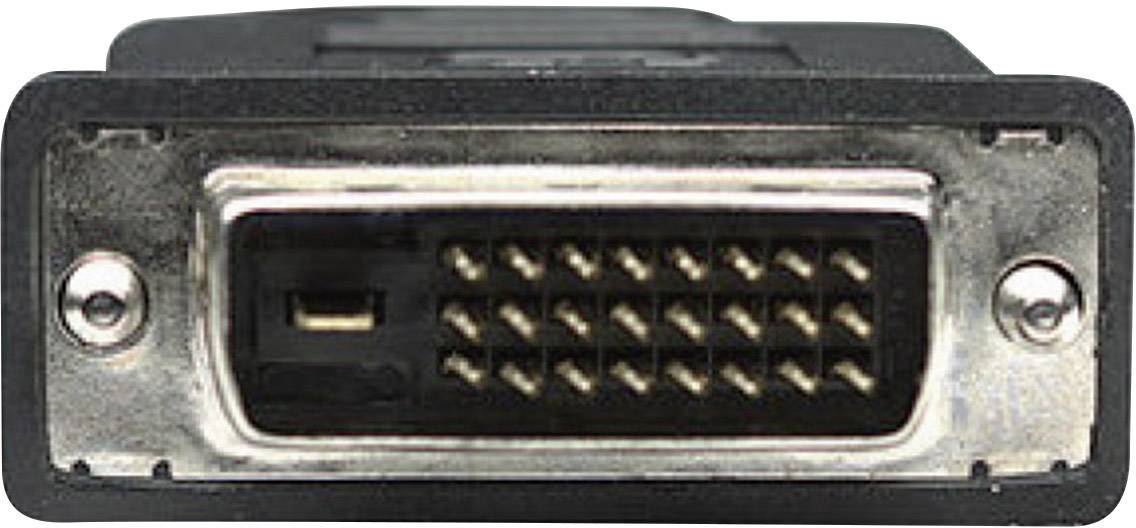

(1) DVI-D 24+1-pin male
Molded PVC boot
Shielded
30 AWG connectors
Cable
Shielded
Length: 1 m (3.3 ft)
Current rating: 0.5 A DC
Withstanding voltage: 300 V DC
Insulation resistance: 10 MOhms
Conductive resistance: 1 Ohm
Thermal plastic casing
Package Contents:
Monitor Cable

Hints

HDMI® is a registered trademark of HDMI Licensing, LLC.
