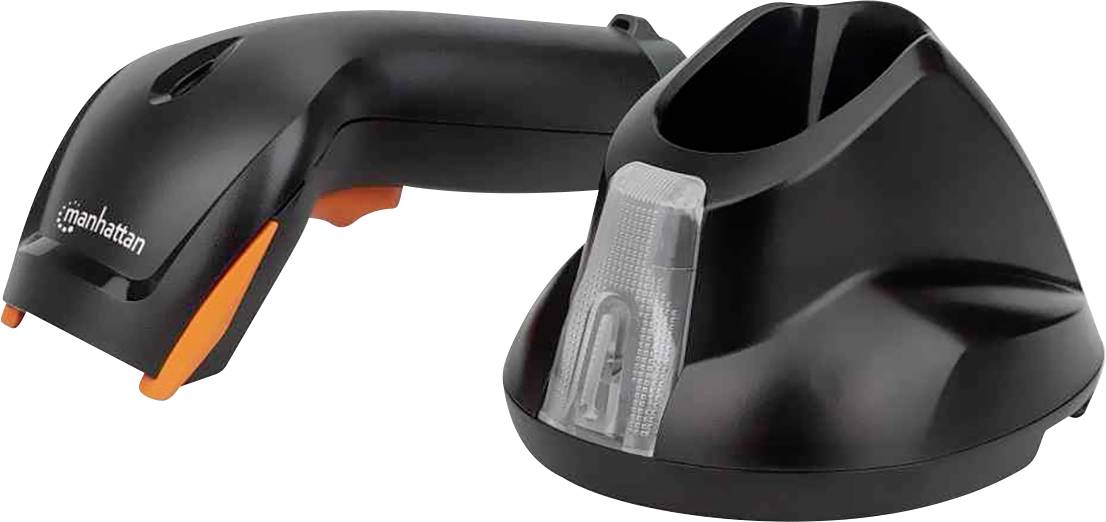

Manhattan Wireless 2D 2D wireless barcode scanner Radio 1D, 2D CCD Black, Orange Handheld incl. base USB type A
EAN:
Part number:
Item no:
Number
Total (€ 298.32 / piece)
€ 298.32
plus VAT.
Only 4 Piece(s) available
Barcode Scanner
Highlights & Details
- Increases data input speed, reduces errors and improves efficiency - ideal for retail stores and automated processes
- Wireless technology offers effective wireless range up to 80 m.
- Keyboard Wedge Decoder displays data as if it had been entered directly via the keyboard
- The wide scanning range enables fast, accurate scanning at a distance of up to 250 mm
- Detects many common 1D and 2D symbologies such as UPC, EAN and more
- Protected against splash water and dust according to protection class IP42
- Easy installation and use without software or special training
Technical specifications
- Light source: White LED
- Resolution : 1280 horizontal x 800 vertical pixels
- Read confirmation: Signal tone and LED
- Light conditions: Up to 100,000 lux (sunlight)
- Interface (base): USB-A on RJ50, 10-pin
- Button: Trigger
- Wireless: HID and SPP profiles; 80 m range (on line of sight)
- SUPPORTED CODES: 1D: UPC/EAN, UPC-A, UPC-E, EAN-8/JAN-8, EAN-13/JAN-13, Code 39, Code 128, Codabar/NW7, Interleaved 25, Industrial 25, Matrix 25, Code 93, China Post, Code 11, MSI/Plessey, Telepen, GS1 Databar Omni-directional, GS1 Databar Limited, GS1 Databar extended; 2D: Aztec, Data Matrix, PDF 417, Micro PDF 417, QR Code, Micro QR Code, GM Code, Han Xin Code
- Dimensions : Scanner 173 x 76 x 74 mm, base 131 x 102 x 90 mm
- Weight : Scanner 160 g, base 172 g
- Cable length (base to PC) : 1.5 m.
- Operating temperature: 0 – 50°C
- Storage temperature : -20 – 70°C.
- Humidity : 20 - 95% (non-condensing)
- Housing: ABS plastic with protection class IP42 (protection against splash water and dust)
- Rechargeable battery: Lithium-ion, 3.7 V / 2600 mAh
- Input voltage : 5 V @ 2 A at the scanner / 110 – 240 V at the base
- Scans per battery charge: Approx. 20,000, continuous
- Charging time : 5 hours
- Power consumption: 445 mA
- Product type
2D wireless barcode scanner
- Type
Wireless 2D
- Type
Handheld incl. base
- Scanning technology
CCD
- Readable code types
1D
2D
- Reading distance (max.)
250 mm
- Scanning confirmation
Acoustic
LED
- Scan rate
60 Scans/s
- Cordless scanning
Radio
80 m
- Range of use
Retail
Manufacturing
- Factory colour
Black
Orange
- Interfaces
USB type A
- Cable length
150.00 cm
- Protection class
IP42
- Width
76 mm
- Height
74 mm
- Depth
173 mm
- Weight
160 g
- Weight, information
without base
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2355022 Manhattan Wireless 2D 2D wireless barcode scanner Radio 1D, 2D CCD Black, Orange Handheld incl. base USB type A
Description
2D barcode scanner for higher speed, accuracy and productivity with wireless freedom
This Manhattan wireless barcode scanner enables high-quality scanning for a wide range of applications and increases productivity in your company. The CCD sensor scans quickly and reliably, with high tolerance, many common 1D and 2D barcodes such as UPC, EAN, ASCII, GS1 DataBar and more. Scanned data appears on the PC as if it had been entered manually using a keyboard. The wireless technology enables the operation with a distance of up to 80 m from the charging station. Without external power supply and with connection options via USB, the scanner enables a comfortable use at your PC, without additional software or special training. With a scanning depth (range) up to 250 mm, this device is ideal for daily use in shops, warehouses or offices. The impact-resistant housing, sealed to IP42, also makes this scanner particularly suitable for industrial environments.
This text is machine translated.
Scope of delivery
- Wireless 2D barcode scanner
- Receiver/charging station
- Power supply unit
- Changeable plug attachments: EU, US, UK, AU
- RJ50 to USB cable
- Programming guide
- Quick guide
