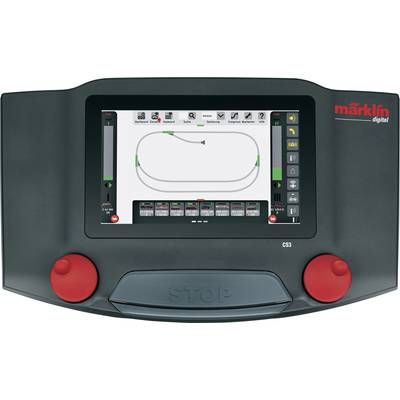

Märklin 60226 Central Station 3 Digital hub MM, DCC, mfx, mfx+

The Central Station 3 offers as a multi-protocol control device with its high resolution, modern color touch screen, the 2 drive controls as well as the integrated central track control the possibility for easy and comfortable control of locomotives and of the entire system. In locomotives can be up to 32 switch, accessories, up to 320 Motorola and 2048 DCC magnet article respectively. Furthermore the Central Station 3 through 2 in-built locomotive card readers (for storing of the locomotive data on a locomotive map or for the quick call of the railroad engine by pocketing the locomotive map), an SD card slot for expansion of memory as well as an integrated loudspeaker for playback model train-typical noise. For supplying the system with driving and switching current is a powerful booster is integrated. Additional throttles, other layouts and keyboards extend the operation of the system, whereby joint and separate configurations for the plant areas to be controlled in the Central Station 3 (plus) can be held. The Central station 3 has 2 built-in USB host (for example, Mouse, Keyboard, USB stick), a USB charging socket, a network port for communicating with a PC, connections for 2 mobile stations, a connection for external speakers as well as further for the Märklin bus system. S88-S88 (60883) External Link connections can be realized. Load on siding: max. 5 A, load on the programming track: max. 1.2 A.
