Name: Märklin 60216 Central Station 3 plus Digital hub MM, DCC, mfx, mfx+
Brand: Märklin
SKU: 1415897
Availability: InStock

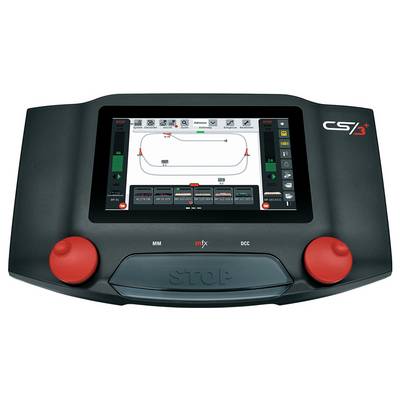

A digital control unit with a screen displays the route of a model railway, buttons for control, and red rotary knobs for operation.

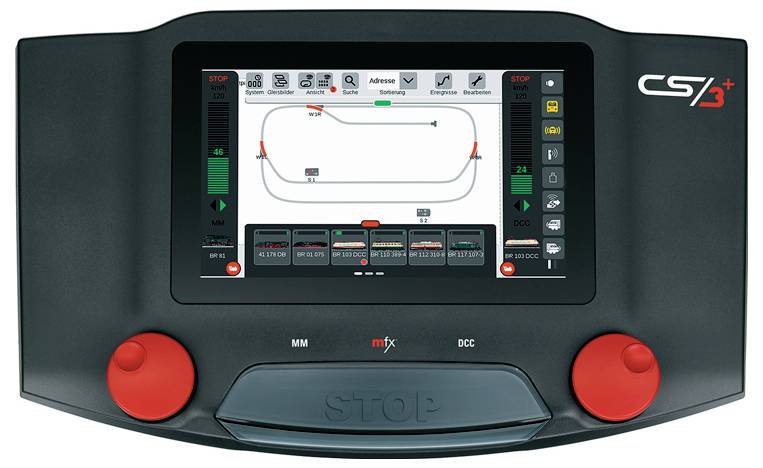

An electronic control panel with a screen displays a diagram of circuits and control buttons. Two red buttons are visible.

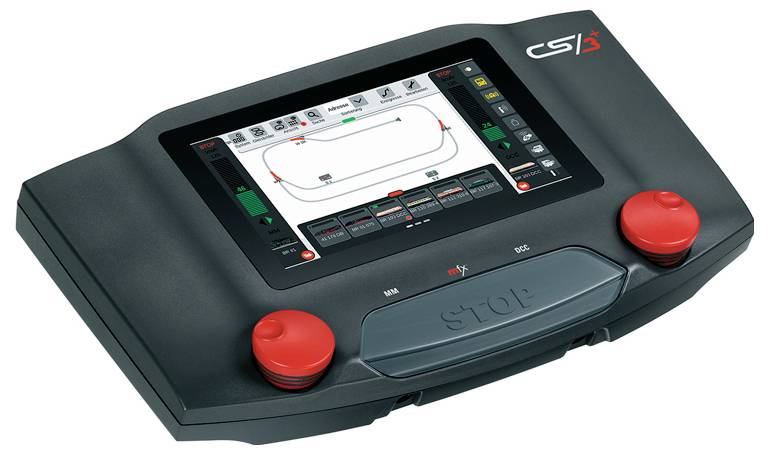

Portable control unit with a touchscreen and two red emergency stop buttons. The display shows a technical user interface.

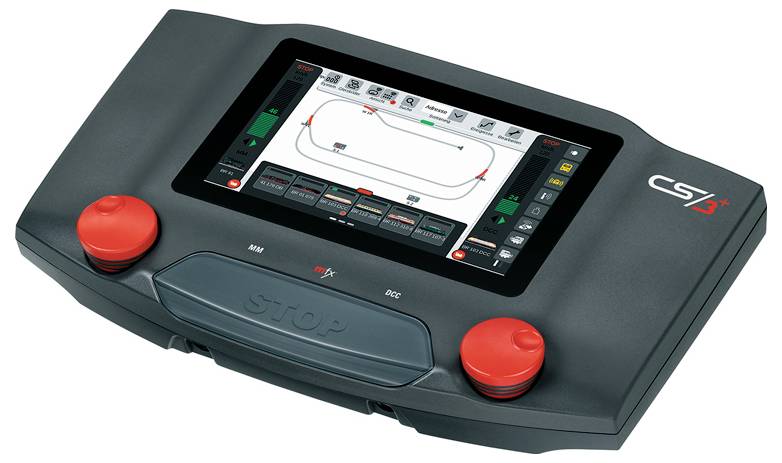

A control unit with a screen displays a circuit diagram. It has red buttons at the corners and the inscription 'STOP' in the centre.

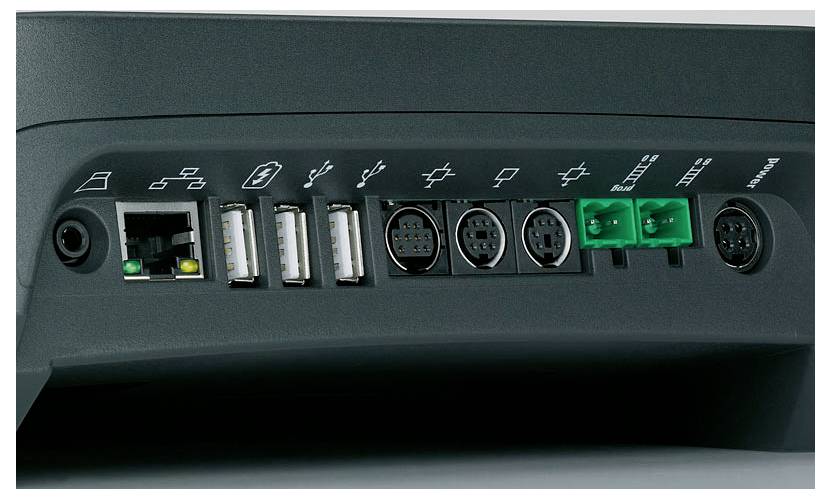

Rear view of a technical device with multiple connection ports, including USB, Ethernet, and plug connections, on a grey background.

1/5

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

33 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 885.00 / piece)

€ 885.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

The Märklin Central Station 3 plus

High resolution, modern color touch screen
Integrated, central track control track
Up to 32 switchable locomotive functions
Integrated speaker
In-built SD-card slot

Technical specifications

Product type: Digital hub

Digital format: MM
DCC
mfx
mfx+

Length: 320 mm

Width: 195 mm

Height: 80 mm

Dim: (L x W x H) 320 x 195 x 80 mm

Age category: 15 years and over

Type: Central Station 3 plus

Manufacturer part #: 60216

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1415897 Märklin 60216 Central Station 3 plus Digital hub MM, DCC, mfx, mfx+

Description

The Central Station 3 plus offers as a multi-protocol control device, with its high-resolution, modern color touch-screen, the 2 speed controllers as well as the integrated central track control, the possibility for an easy and comfortable control of the locomotives and the entire system.

In locomotives up to 32 functions can be switched; in case of accessories up to 320 Motorola or 2048 DCC magnet article are possible

Furthermore the Central Station 3 plus has 2 built-in locomotive card readers (for storing the locomotive data on a locomotive map or for quick call of the locomotive by plugging in the loco-card), an SD card slot for expansion of the memory as well as an integrated speaker for playing the typical sounds of the model.

A powerful booster is integrated for supplying the system with driving and switching current.

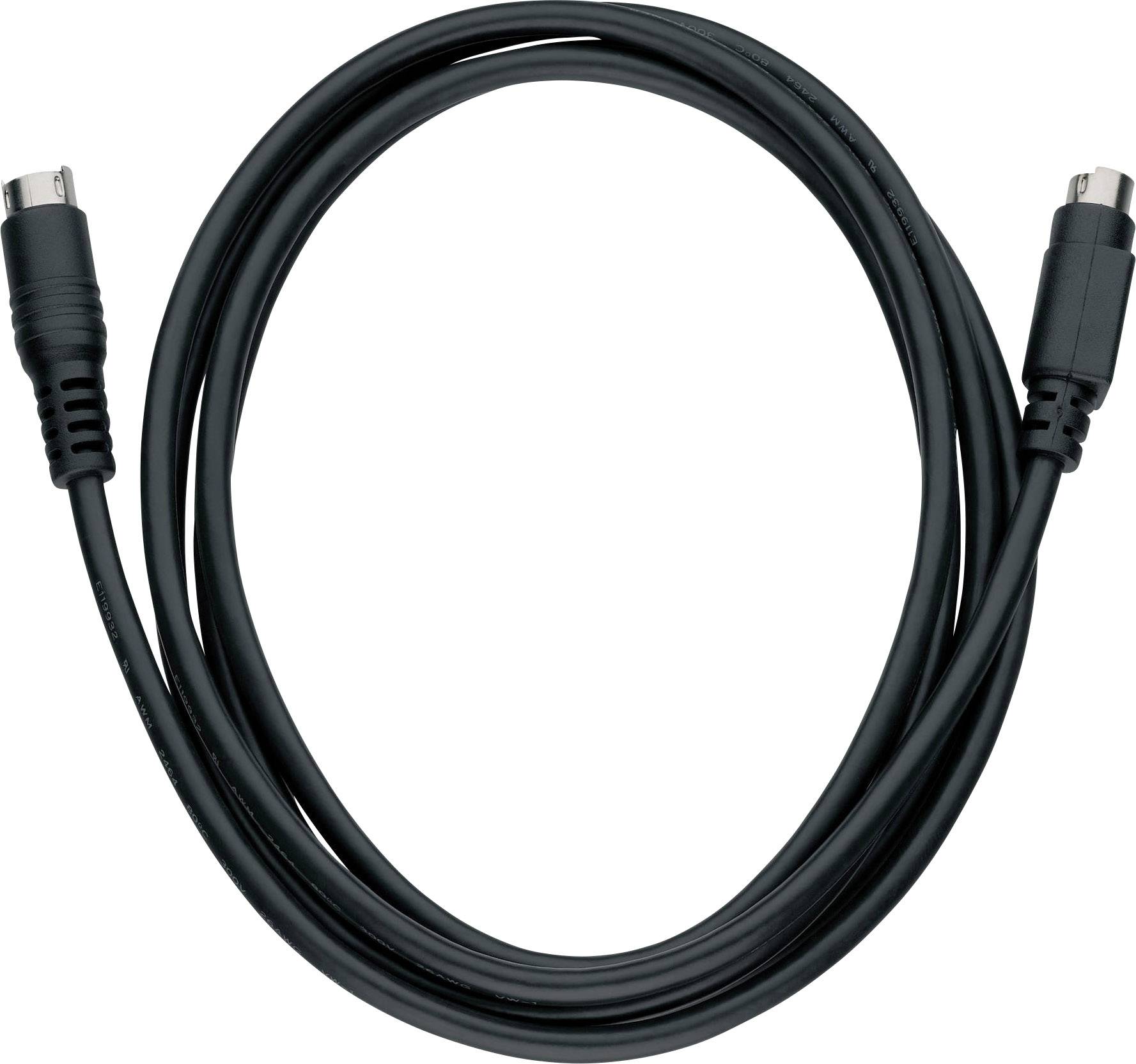

The Central Station 3 plus is more device compatible, i.e. with the optional cable (60123) several Central Station 3 plus (60216) can be operated together in a plant with the respective network connection. Additional control desks, other layouts and keyboards extend the operation of the plant, whereby joint and separate configurations can be maintained for the plant areas to be controlled in the Central Station 3 plus.

The central station 3 plus has a built-in s88-connection, 2 built-in USB-hosts (for instance, mouse, keyboard, USB-stick), a USB charging socket, a network connection for communicating with a PC, connections for 2 mobile stations, a connection for external loudspeakers as well as others for the Märklin-bus system. Load on siding: Max. 5 A, load on the programming track: Max. 1.2 A.
Max. Power output:
- 5.0 A when using a Märklin 100W switching power supply only for track 1 and LGB.
- 3.0 A when using a Märklin 60W/50W switched-mode power supply with H0 and N gauge
The Central Station 3 plus is to be used only in connection with Märklin switching power supplies. It is not compatible to Märklin transformers. Please ensure that the cable cross-section is greater than 0.5 mm².

This text is machine translated.

Features

Digital multi-protocol control unit (mfx, mfx +, DCC, Motorola).
High resolution, modern color touch screen.
Integrated, central track control track
Housing with a central stop button and 2 dial controls in robust industrial quality.
Up to 32 switchable locomotive functions.
2 integrated locomotive card readers.
Built-in loudspeaker
In-built SD-card slot.
Integrated powerful booster.
Output power:3.0 A when using a Märklin switched power supply 60W/50W in H0 and track N.
Output power: 5.0 A when using a Märklin 100W switching power supply only for track 1 and LGB.
Up to 320 Motorola and 2048 DCC-Magnetic item switchable.
Route control (including shuttle train control).
2 USB-hosts for e.g. mouse, keyboard, USB-stick etc. and 1 USB-charging socket.
Direct connection for 2 mobile stations and a bus extension device.
Integrated s88-connection.
Connections for networks, external speakers, Märklin bus.
Extensions can be connected via Märklin-Bus
Multi-device compatible with Central Station 3 plus
