TAMS Elektronik 40-03067-01-C MasterControl.2 V2-9 (mc²) Silver Edition Digital hub DCC, MM
EAN:
Part number:
Item no:
Number
Total (€ 735.00 / piece)
€ 735.00
incl. VAT
Only 2 Piece(s) available
Highlights & Details
MasterControl 2 (mc²) digital central unit, V2-9, Silver Edition
- With integrated 9 A booster
- Inclusive Power supply for supplying the hub and the tracks
- Flexible for the connection of digital control devices Diverser manufacturer
- Universal for DCC, DCC-A, RailCom, MM, MM2, m3, s88-N, X-Net, LocoNet, BiDiB, CAN
Technical specifications
- Digital formats: Motorola-I and -II, DCC (according to NMRA and RCN standard), m3 (for controlling mfx decoders, no feedback signals)
- Vehicle decoder addresses: Motorola: 255 (1 – 255), DCC: 10,239 (1 – 10239), m3: 16,384
- Driving steps: Motorola: 14 or 27 (a or b), DCC: 14, 28 or 128, m3: 128
- Functions: Motorola: Function, f1 to f4, DCC: F0 to F31 or f32,768, m3: F0, f1 to f14
- Accessory decoder addresses: Motorola: 1,020 (1 – 1,020), DCC: 2,040 (1 – 2,040)
- Feedback formats: RailCom: Integrated global RailCom detector, Railcom cut-out can be switched off with integrated boosters. DCC-A: Allows automatic registration of DCC vehicle decoders at the head office. The extension of the DCC format is currently available (as of November 2020) as draft standard by the RailCommunity and is expected to be adopted in 2021.
- Connection of external feedback signal: Märklin CAN bus (mini DIN 10-pin), LocoNet (RJ 12), Easynet (RJ 45), XpressNet (RJ 12), REC / "Sniffer" (2-pin, RM 2.54 mm)
- Power supply: Switching power supply with 24 volt / 6.67 A / 160 W (included in delivery) for supplying the central unit and the tracks in the booster section of the integrated booster
- For connecting external control units: Märklin CAN bus (mini DIN 10-pin), LocoNet (RJ 12), Easynet (RJ 45), XpressNet (RJ 12), REC / Sniffer (2-pin)
- Computer-interface LAN (RJ 45)

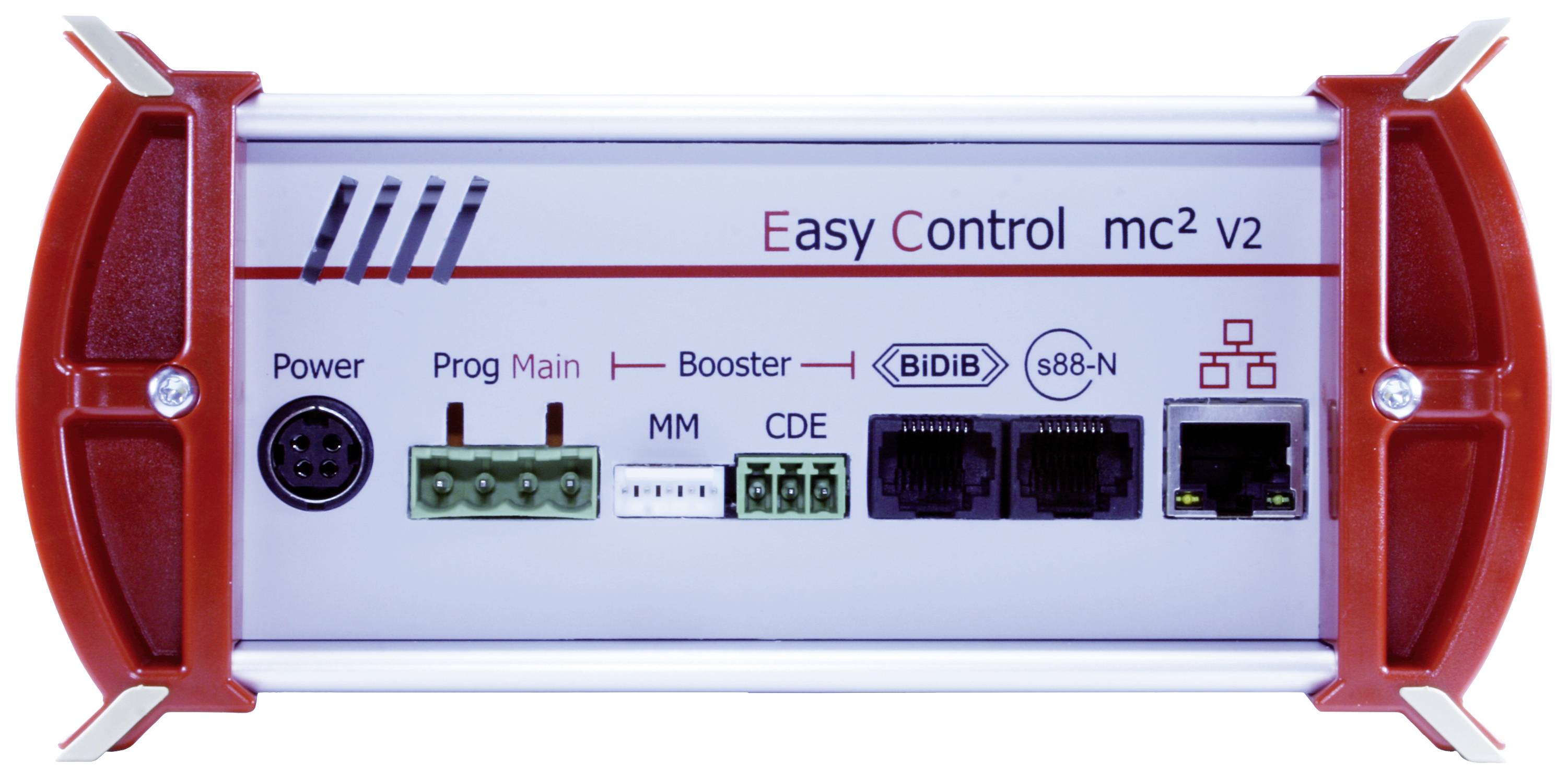

- Power supply, main track and DCC programming track, external booster (either Märklin compatible or DCC conform), BiDiB (RJ 45), s88 feedback module (RJ 45 in accordance with standard s88-N). Maximum number of s88-modules: 64 s88- or s88-compatible modules (1,024 contacts)
- Output current max. 6.5 A
- Short circuit sensitivity: 1 6.5 A, adjustable in 0.5 A steps
- Output voltage: 8 to 22 V digital voltage (regulated), adjustable in 1 V steps
- Output signal: Symmetric
- Product type
Digital hub
- Digital format
DCC
MM
- Length
175 mm
- Width
154 mm
- Height
82 mm
- Dim
(L x W x H) 175 x 154 x 82 mm
- Age category
15 years and over
- Type
Silver Edition V2-9
- Manufacturer part #
40-03067-01-C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3207328 TAMS Elektronik 40-03067-01-C MasterControl.2 V2-9 (mc²) Silver Edition Digital hub DCC, MM
User & Safety Instructions 3207328 TAMS Elektronik 40-03067-01-C MasterControl.2 V2-9 (mc²) Silver Edition Digital hub DCC, MM
Description
Flexible for the connection of digital control devices Diverser manufacturer. Driving fun guaranteed for one or more model railway fans!
Universal for DCC (14, 28, 128 driving positions), DCC-A, RailCom, mm, mm2, m3, s88-N, X-Net, L-Net, BiDiB, can
100% independent of apps or operating systems through an integrated web interface
Ingeniously simple: Familiar media (smartphone, tablet, PC) is used to configure the digital environment and program the decoders. The user interface: 100% "ordinary".
Innovative + future-proof: A 32-bit processor with ARM architecture is built inside. The connection to the PC is made via a LAN-interface.
Open for all operating concepts from digital (handheld) control device via smartphone and tablet to PC

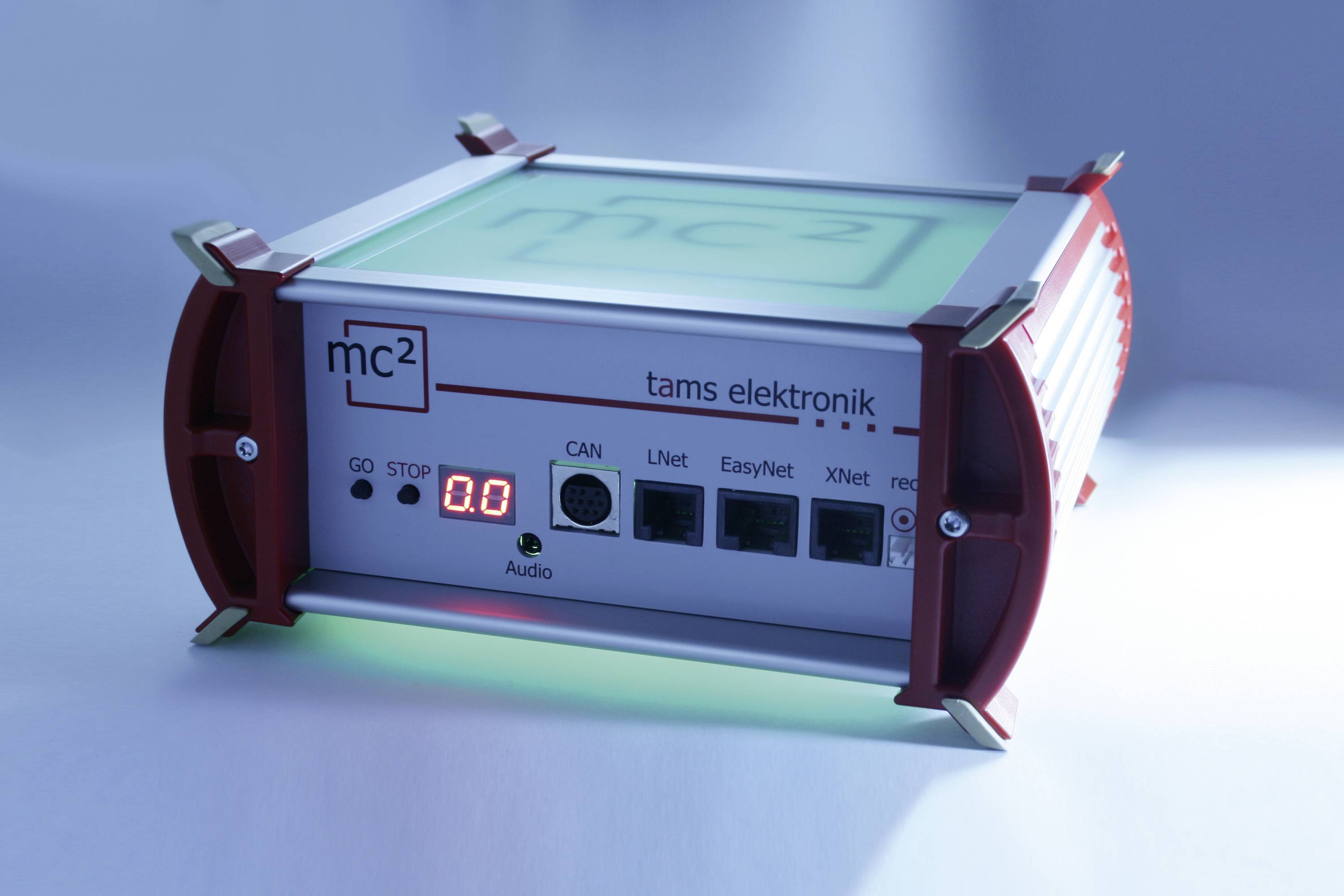

Informative: The operating state is shown on the display. RGB LEDs in the casing light up visible from a distance in the color matching the operating mode.
Strong: The integrated booster supplies up to 6.5 A power. Short-circuit sensitivity and rail voltage are individually adjustable (1 - 6.5 A or 8 - 22 V).
Complete with power supply unit (for supplying the central unit and the tracks in the booster section of the integrated booster), LAN and power cable and a bit of "small stuff" (e.g. brackets for fixing the mc² or stickers for marking the various connection cables)
This text is machine translated.
Universal for DCC (14, 28, 128 driving positions), DCC-A, RailCom, mm, mm2, m3, s88-N, X-Net, L-Net, BiDiB, can
100% independent of apps or operating systems through an integrated web interface
Ingeniously simple: Familiar media (smartphone, tablet, PC) is used to configure the digital environment and program the decoders. The user interface: 100% "ordinary".
Innovative + future-proof: A 32-bit processor with ARM architecture is built inside. The connection to the PC is made via a LAN-interface.
Open for all operating concepts from digital (handheld) control device via smartphone and tablet to PC
Informative: The operating state is shown on the display. RGB LEDs in the casing light up visible from a distance in the color matching the operating mode.
Strong: The integrated booster supplies up to 6.5 A power. Short-circuit sensitivity and rail voltage are individually adjustable (1 - 6.5 A or 8 - 22 V).
Complete with power supply unit (for supplying the central unit and the tracks in the booster section of the integrated booster), LAN and power cable and a bit of "small stuff" (e.g. brackets for fixing the mc² or stickers for marking the various connection cables)
This text is machine translated.
Features
- Free, easy to install updates
- Interfaces for the direct connection of all common digital controls and the most widely used data buses
- LAN interface for connecting to a PC, tablet or smartphone
- Web-based user interface for clear configuration, management of components and system control
- Integrated strong booster, adjustable for systems from Z to G.
- Line out output for connecting active speakers or amplifiers (2.5 mm stereo jack plug)
- Automatic switch off in case of overload
- 100% independent of apps or operating systems through built-in web interface
- Ingeniously simple configuration and decoder programming with a smartphone, tablet and PC
- Open for all operating concepts from digital (handheld) control device with smartphone and tablet to PC
Scope of delivery
- MasterControl 2 (mc²), V2-9
- 9.2 A power supply, mains cable with Euro plug (CEE 7/16)
- Connection cable with RJ 45-Ports
- 3-pin plug for connection to external boosters
- 4-pin plug for connections to main and programming track
- Brackets for mounting the mc²
- Sticker sheet to label the connection cables
- User manual.
System requirements
- PC or tablet with WLAN router
