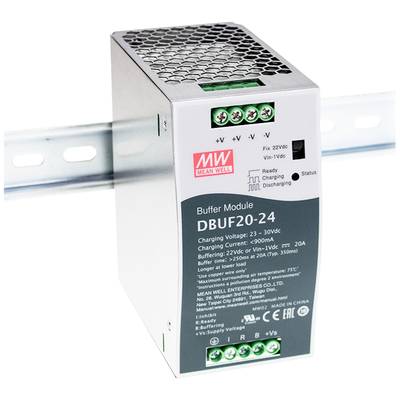

MEAN WELL DBUF20-24 DIN rail mount buffer module 24 V 20 A No. of outputs:1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
51 Piece(s)
Sales and shipping:
Number
Total (€ 100.83 / piece)
€
Technical specifications
- Product type
DIN rail mount buffer module
- Min. input voltage
23 V DC
- Input voltage (max.)
30 V DC
- Max. output current
20 A
- Output current (max.) - rounded
20 A
- Output type (power supply units)
Fixed voltage
- Output voltage (nominal)
24 V
- No. of outputs
1 x
- Connection
Screw terminal
- Dim
(L x W x H) 114.90 x 63 x 125.20 mm
- Weight
1620 g
- Manufacturer part #
DBUF20-24
- Content
1 pc(s)
- Width
63 mm
- Height
125.20 mm
- Length
114.90 mm
- Type
DBUF20-24
