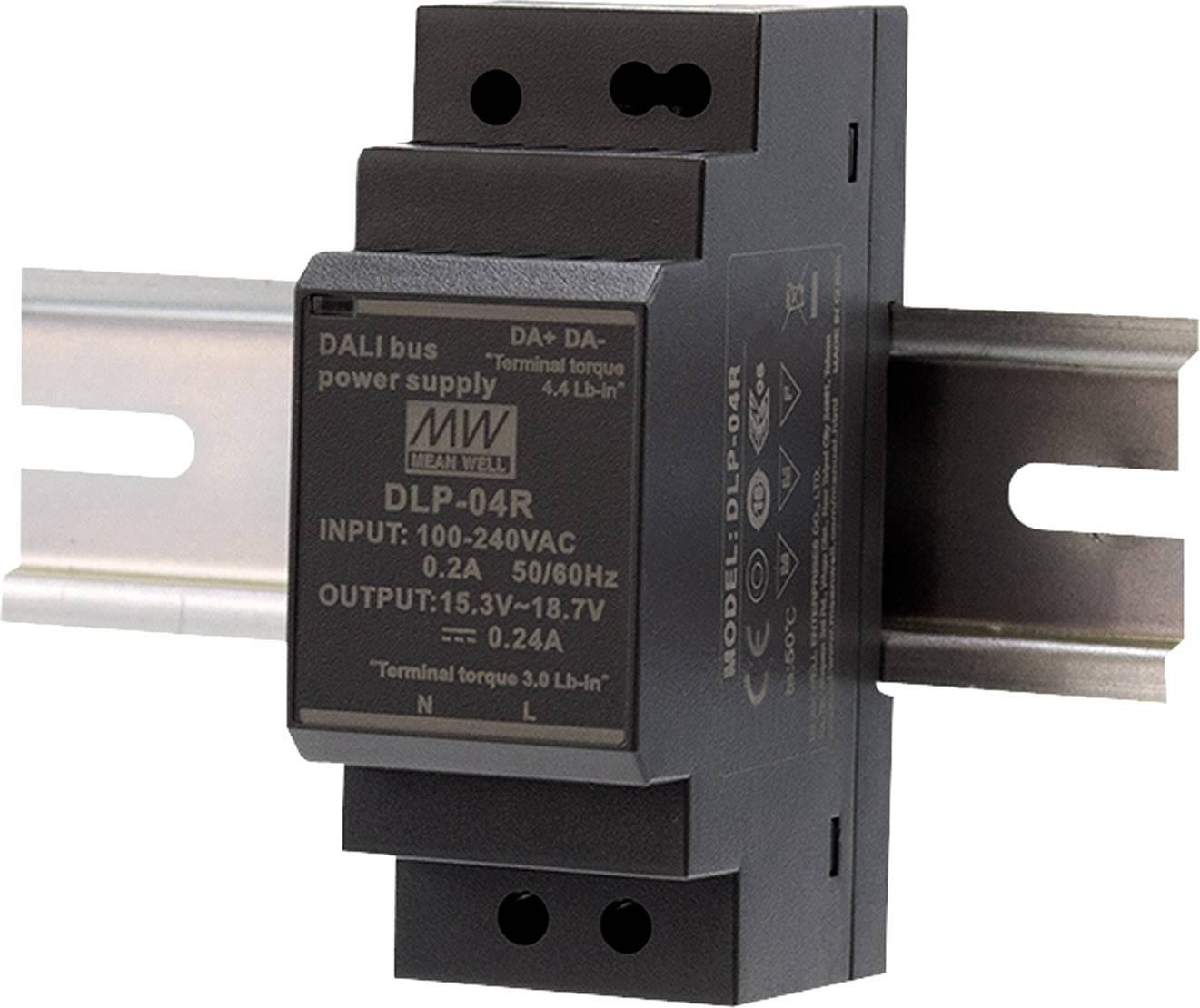

MEAN WELL DLP-04R SMPSU 16 V DC 240 mA 3.84 W No. of outputs:1 x Content 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 22.99 / piece)
€ 22.99
incl. VAT
14-day return policy included
Highlights & Details
MEANWELL power supply for the DALI bus series DLP-04R DIN-rail mounting power: 3,84 W
- Power supply for the DALI bus
- DIN-rail mounting
- Universal input
- Surge protection 300V AC/5s
- Insulation category II
- Overload protection through current limitation, auto recovery
- Protected against short-circuit, over-voltage
- Low profile 2 SU (35 mm)
- This text is machine translated.
Technical specifications
- Nominal input voltage
230 V/AC
- Product type
SMPSU
- Min. input voltage
90 V AC
120 V DC
- Output voltage
16 V DC
- Input voltage (max.)
264 V AC
370 V DC
- Max. output current
240 mA
- Output current (max.) - rounded
240 mA
3.84 W
- Output type (power supply units)
Fixed voltage
- Output voltage (nominal)
16 V DC
- No. of outputs
1 x
- Connection
Screw terminal
- Dim
(L x W x H) 54.5 x 35 x 90 mm
- Weight
87 g
- Output voltage (max.)
18.7 V DC
- Output voltage (min.)
15.3 V DC
- Operating temperature (max.)
+60 °C
- Operating temperature (min.)
-20 °C
- Manufacturer part #
DLP-04R
- Content
1 pc(s)
- MTBF
604700 h
- PSU features
Surge protection
- Width
35 mm
- Height
90 mm
- Length
54.5 mm
- Type
DLP-04R
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2142603 MEAN WELL DLP-04R SMPSU 16 V DC 240 mA 3.84 W No. of outputs:1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2142603 MEAN WELL DLP-04R SMPSU 16 V DC 240 mA 3.84 W No. of outputs:1 x Content 1 pc(s)
Warranty Terms
Warranty Terms 2142603 MEAN WELL DLP-04R SMPSU 16 V DC 240 mA 3.84 W No. of outputs:1 x Content 1 pc(s)
Description
Features
- Power supply for the DALI bus
- DIN-rail mounting
- Universal input
- Surge protection 300V AC/5s
- Insulation category II
- Overload protection through current limitation, auto recovery
- Protected against short-circuit, over-voltage
- Low profile 2 SU (35 mm)
