Buy MEAN WELL ELP-75-24 SMPSU 24 V DC 3.15 A 75 W

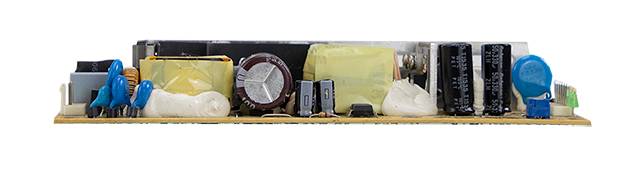

Electronic circuit board with capacitors, inductors, and other components. Serves as a power supply or circuit module in electronic devices.

Image similar

Datasheet (PDF)

Fast track dispatch on Wed, 16 Sep

11 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 27.72 / piece)

€ 27.72

plus VAT.

Report legal concerns

Highlights & Details

Switching power supply open-frame

Output 24 V DC / 3.15 A
Power 75 W
Pin strip for nylon crimp connectors

Technical specifications

Product type: SMPSU

Input voltage (max.): 264 V AC

Max. output current: 3.15 A

Output current (max.) - rounded: 3.15 A

Min. input voltage: 90 V AC

Dim: (L x W x H) 175.00 x 60.00 x 27.00 mm

Output voltage (max.): 24 V DC

Connection: Pin strip for nylon crimp connectors

: 75 W

No. of outputs: 1 x

Type: open

Weight: 250.00 g

Type: Synchronised

Width: 60.00 mm

Height: 27.00 mm

Length: 175.00 mm

Type: ELP-75-24

No. of inputs: 1 x

Output voltage: 24 VDC

Output current (details): 3.15 A

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1294118 MEAN WELL ELP-75-24 SMPSU 24 V DC 3.15 A 75 W

User & Safety Instructions

User & Safety Instructions 1294118 MEAN WELL ELP-75-24 SMPSU 24 V DC 3.15 A 75 W

Information

Information 1294118 MEAN WELL ELP-75-24 SMPSU 24 V DC 3.15 A 75 W

Warranty Terms

Warranty Terms 1294118 MEAN WELL ELP-75-24 SMPSU 24 V DC 3.15 A 75 W

Description

Open frame · Contact pin for nylon-crimp terminals · Universal input · Overload protection, pulsing hiccup shutdown, auto recovery · Protections: short circuit/over load/over voltage · Built-in active PFC function · Low no load power consumption
