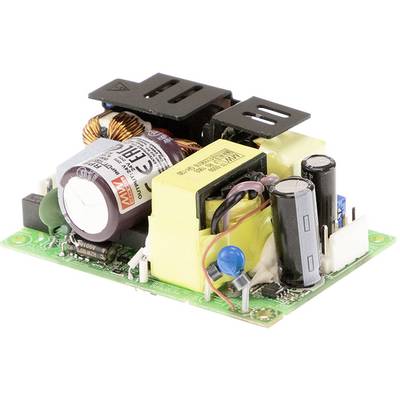

MEAN WELL EPP-120S-24 SMPSU 24 V DC 5 A 120 W
EAN:
Part number:
Item no:
Datasheet (PDF)
5 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 27.72
3
4% = € 1.21
€ 26.51
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 27.72 / piece)
€
Only 5 Piece(s) available
Highlights & Details
MEANWELL power supply series EPP-120S open-frame Single Output Power: 120 W
- Output 24 V DC / 5 A
- Power 120 W
- Pin strip for nylon crimp connectors
Technical specifications
- Product type
SMPSU
- Input voltage (max.)
264 V AC
370 V DC
- Max. output current
5 A
- Output current (max.) - rounded
5 A
- Min. input voltage
80 V AC
113 V DC
- Dim
(L x W x H) 76.2 x 50.8 x 28 mm
- Output voltage (max.)
24 V DC
- Connection
Pin strip for nylon crimp connectors
120 W
- No. of outputs
1 x
- Type
open
- Weight
130 g
- Type
Pulsed
- Width
50.8 mm
- Height
28 mm
- Length
76.2 mm
- Type
EPP-120S-24
- MTBF
470000 h
- Output current (min.)
5 A
- Output voltage (min.)
24 V DC
- No. of inputs
1 x
- PFC
Yes
- Max. temperature
+85 °C
- Min. temperature
-30 °C
Documents & Downloads
Datasheet
Datasheet 2142615 MEAN WELL EPP-120S-24 SMPSU 24 V DC 5 A 120 W
User & Safety Instructions
User & Safety Instructions 2142615 MEAN WELL EPP-120S-24 SMPSU 24 V DC 5 A 120 W
Warranty Terms
Warranty Terms 2142615 MEAN WELL EPP-120S-24 SMPSU 24 V DC 5 A 120 W
Description
Features
- Compact design, 3" x 2"
- Pin strip connections for nylon crimp connectors
- Wide-range input
- Overload protection by switching off, auto recovery
- Protected against short circuit, overload, overvoltage, overheating
- Low idle power
- Operating altitude up to 5000 m
Hints
These power supplies are designed for installation in devices.
