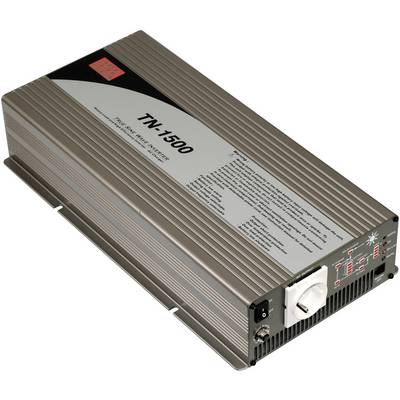

MEAN WELL Inverter TN-1500-212B 1500 W 12 V DC - 200 V, 220 V, 230 V, 240 V UPS function, Remote operation, Sine wave, B
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 508.40 / piece)
€ 508.40
plus VAT.
Only 4 Piece(s) available
Technical specifications
- Input voltage
10.5 - 15 V DC
- Product type
Inverter
- Signal output type
Sine wave
- Output voltage
200 V
220 V
230 V
240 V
1500 W
- Input voltage
12 V DC
- Inputs
Screw terminals
- Output
PG socket
- Nominal load efficiency
88 %
- Weight
7350.00 g
- Cooling method
Fan
- Width
220.00 mm
- Height
88.00 mm
- Length
420.00 mm
- Peak output power
3000 W
- Type
TN-1500-212B
- Features
UPS function
Remote operation
Sine wave
Built-in charge controller
- Connection
CEE 7/4 socket
- Input voltage (max.)
15 V DC
- Min. input voltage
10.5 V DC
- No. of inputs
1 x
- No. of outputs
1 x
- Type
Synchronised
Documents & Downloads
Datasheet
Datasheet 1292356 MEAN WELL Inverter TN-1500-212B 1500 W 12 V DC - 200 V, 220 V, 230 V, 240 V UPS function, Remote operation, Sine wave, B
User & Safety Instructions
User & Safety Instructions 1292356 MEAN WELL Inverter TN-1500-212B 1500 W 12 V DC - 200 V, 220 V, 230 V, 240 V UPS function, Remote operation, Sine wave, B
Information
Information 1292356 MEAN WELL Inverter TN-1500-212B 1500 W 12 V DC - 200 V, 220 V, 230 V, 240 V UPS function, Remote operation, Sine wave, B
Warranty Terms
Warranty Terms 1292356 MEAN WELL Inverter TN-1500-212B 1500 W 12 V DC - 200 V, 220 V, 230 V, 240 V UPS function, Remote operation, Sine wave, B
Description
True sine wave output (THD <3%) · Power On/Off switch · Front panel indicator for operation status · Battery low alarm, Battery low shutdown · Protections: over voltage/over temperature/overload/output short/input reverse polarity · Built-in fan On/Off control function · Built-In solar-/AC-charger · UPS mode and energy saving mode
Features
- Real sine output (THD< 3%)
- On/Off switch
- Status indicator
- Battery alarm, battery shutdown
- Protected against overvoltage, overheating, overload, short-circuit and polarity reversal
- Regulated fan (on/off)
- Built-in solar/mains charger
- Ups function and power-saving mode
