Buy VOLTCRAFT Inverter SW-150 24V 150 W 24 V DC - 230 V AC Fanless

Silver electrical device with power cable and black plug. Features various ports and switches on the front panel.

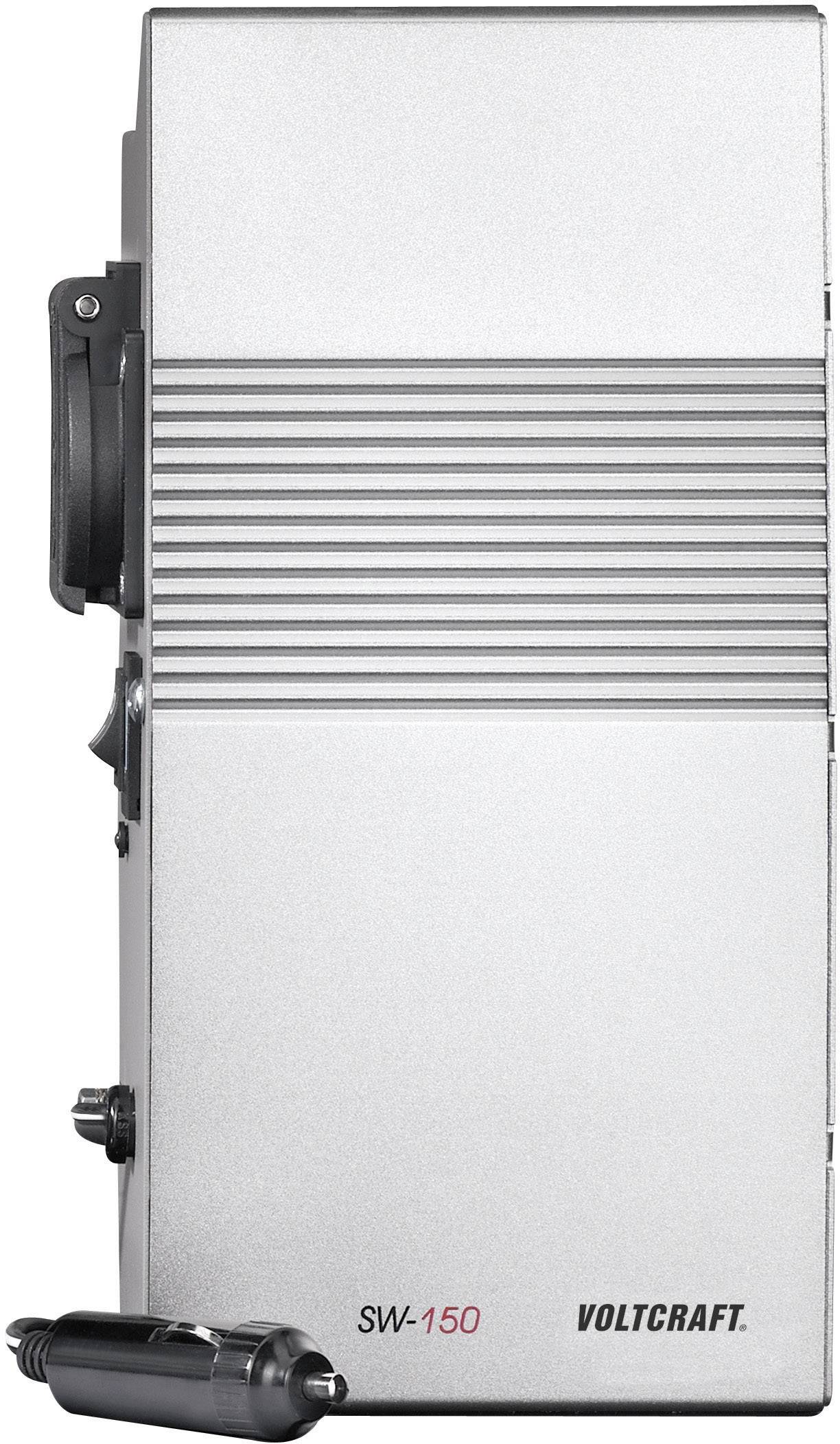

Silver device with the inscription 'VOLTCRAFT' and model number 'SW-150'; a black car adapter is attached to the side.

A grey electrical device with the inscription 'SW-150' and 'Voltcraft'. It has multiple sockets on the left side.

1/3

Our service for you

Fast track dispatch on Tue, 22 Sep

21 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 82.34 / piece)

€ 121.85

-32 %

€ 82.34

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Sine-wave inverter SW-150 24V

Power up to 150 W
Automatic restart at low voltage and overload with warning
Wall mounting possible

Technical specifications

Input voltage: 24 V DC

Product type: Inverter

Signal output type: Sine wave

Output voltage: 230 V AC

: 150 W

Input voltage: 24 V DC

Inputs: Cigarette lighter plug

Output: PG socket

Nominal load efficiency: 87 %

Output frequency: 50 Hz

Input current (max.): 9 A

Remote control: No

Weight: 1.3 kg

Cooling method: Convection

Width: 245 mm

Height: 70 mm

Depth: 120 mm

Peak output power: 300 W

Standby consumption: 3.6 VA

Type: SW-150 24V

Features: Fanless

Type: Sine

: 150 VA

Signal output type: Sine

Output voltage: 230 V AC

Cooling: Convection

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 511744 VOLTCRAFT Inverter SW-150 24V 150 W 24 V DC - 230 V AC Fanless

Conformity certificate

Conformity certificate 511744 VOLTCRAFT Inverter SW-150 24V 150 W 24 V DC - 230 V AC Fanless

eNum certificate

eNum certificate 511744 VOLTCRAFT Inverter SW-150 24V 150 W 24 V DC - 230 V AC Fanless

Warranty Terms

Warranty Terms 511744 VOLTCRAFT Inverter SW-150 24V 150 W 24 V DC - 230 V AC Fanless

Description

230 V out and about Sine wave inverters deliver pure AC voltage with sine wave. Sine wave inverters are used to power sensitive equipment which would be affected by a poor mains power quality. Special features: high reliability and efficiency and excellent sine wave quality. The electronics, with a microcontroller, continuously monitor the major parameters. Hence these units are extremely reliable even under demanding conditions. Even overload or short-circuits will not cause any damage. This unit can be used to power sensitive equipment such as televisions, computers, audio systems, etc. without any interference. Even the high switch-on current of inductive loads is not a problem.

Features

Low voltage shutdown to protect the battery
High-voltage cut-off
Overload-proof and short circuit-proof with automatic restart.

Scope of delivery

Remote cable with cigarette lighter plug.

Hints

Please note: This product is supplied as pictured with an EU socket. A free UK adapter is available on request by calling our customer service line quoting your order number on: 0844 826 2873
