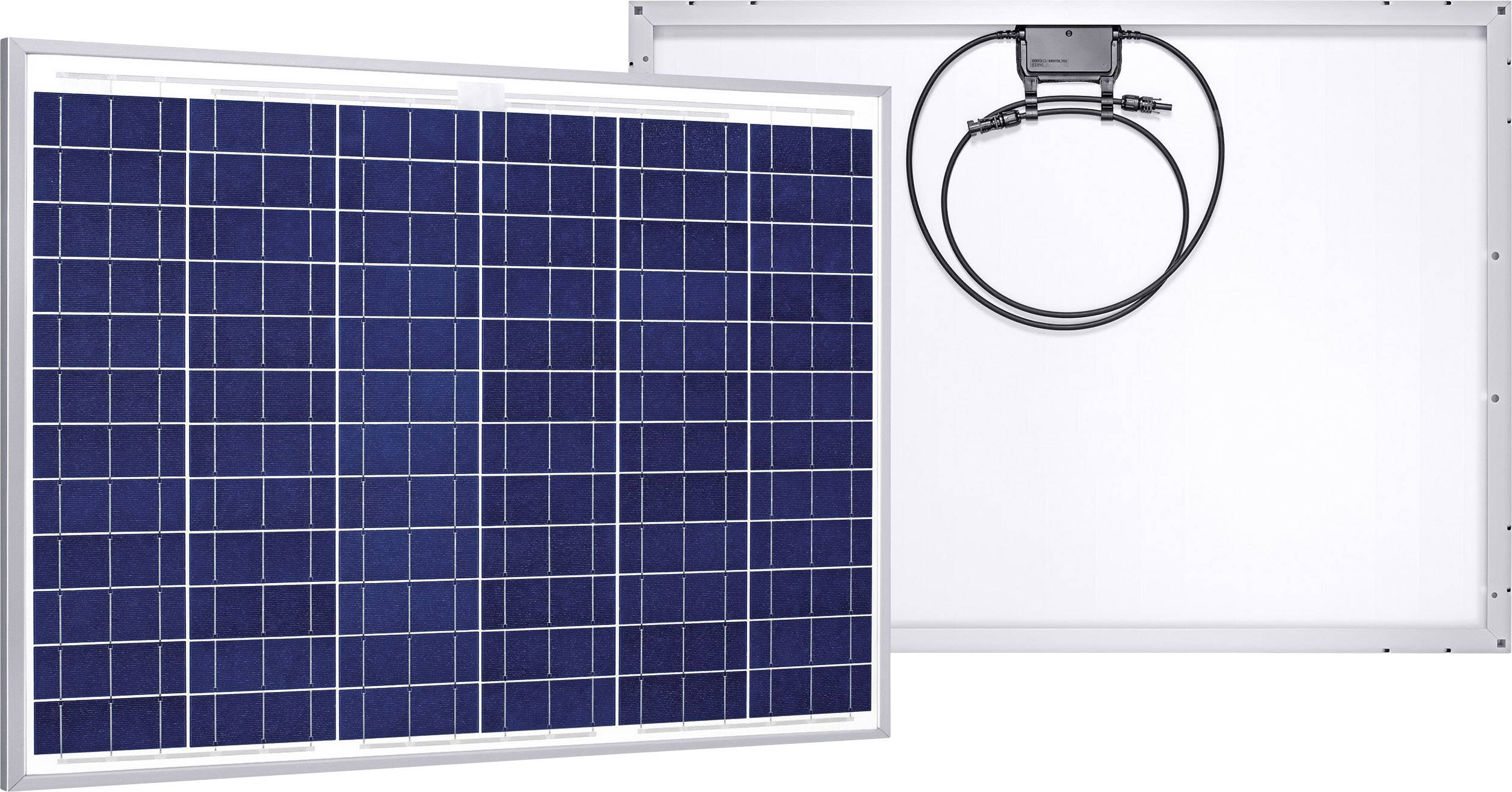

Phaesun Sun Plus 100 Polycrystalline solar panel 100 Wp 24 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 72.26 / piece)
€ 193.28
-63 %
€ 72.26
plus VAT.
Highlights & Details
Solar Module Sun Plus 100
- High quality finish
- High reliability
- Photovoltaic Module with back contact silicon solar cells
Technical specifications
- Standard4 connector
- Cable cross section 4 mm².
- Protection class IP65
- Temperature range -40 to +85 °C
- Product type
Polycrystalline solar panel
100 Wp
- Nominal voltage
24 V
- Dim
(L x W x H) 1001 x 734 x 35 mm
- Efficiency
13.6 %
- Connector
MC-PV-4
- Weight
8.1 kg
- Short-circuit current
3000 mA
- Open circuit voltage (OCV)
43.2 V
- Nominal current
2780 mA
- Width
734 mm
- Height
35 mm
- Length
1001 mm
- Voltage (max.)
36 V
- No. of cells
72
Documents & Downloads
Datasheet
Datasheet 1590111 Phaesun Sun Plus 100 Polycrystalline solar panel 100 Wp 24 V
Description
The Solar Module Sun Plus is suitable for industrial and private use. Due to the double framing with anodised aluminum, it is particularly resistant to scratching. The connection box is the same large modules and allows a user-friendly and safe installation. The crystalline cells are in low-iron oxide 3.2 mm strong crystal glass and double-layered high-resistant film.
This text is machine translated.
This text is machine translated.
Features
- Photovoltaic Module with back contact silicon solar cells
- High reliability thanks to high-quality materials
- Reduced weight
- Sturdy aluminum frame
- Tempered glass
- Wtterungsbestandig
Scope of delivery
- Solar module · Cable · Connector · User manual.
- This text is machine translated.
