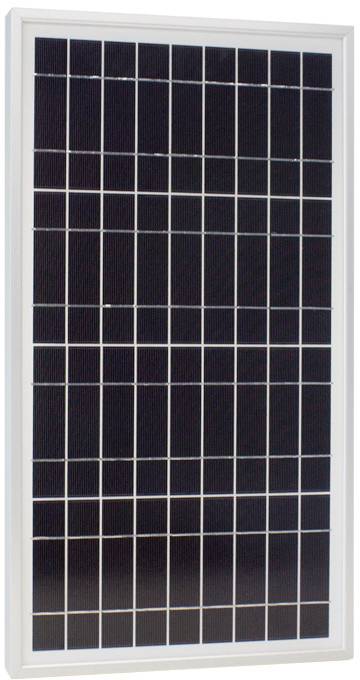

Phaesun Sun-Plus 20 S Monocrystalline solar panel 20 Wp 12 V
Datasheet (PDF)
EAN:
Part number:
Item no:
Total (€ 57.99 / piece)
€ 57.99
incl. VAT
14-day return policy included
Highlights & Details
Solar module Sun-Plus 20 S
- High quality finish
- High reliability
- Photovoltaic Module with back contact silicon solar cells
Technical specifications
- Standard4 connector
- Cable cross section 4 mm².
- Protection class IP65
- Temperature range -40 to +85 °C
- Product type
Monocrystalline solar panel
20 Wp
- Nominal voltage
12 V
- Dim
(L x W x H) 550 x 299 x 35 mm
- Efficiency
15.2 %
- Connector
MC-PV-4
- Weight
2.4 kg
- Short-circuit current
1200 mA
- Open circuit voltage (OCV)
22.6 V
- Nominal current
1100 mA
- Width
299 mm
- Height
35 mm
- Length
550 mm
- Voltage (max.)
18.2 V
- No. of cells
36
Documents & Downloads
Datasheet
Datasheet 2369282 Phaesun Sun-Plus 20 S Monocrystalline solar panel 20 Wp 12 V
Description
The Solar Module Sun Plus is suitable for industrial and private use. Due to the double framing with anodised aluminum, it is particularly resistant to scratching. The connection box is the same large modules and allows a user-friendly and safe installation. The crystalline cells are in low-iron oxide 3.2 mm strong crystal glass and double-layered high-resistant film.
This text is machine translated.
This text is machine translated.
Features
- Photovoltaic Module with back contact silicon solar cells
- High reliability thanks to high-quality materials
- Reduced weight
- Sturdy aluminum frame
- Tempered glass
- Wtterungsbestandig
Scope of delivery
- Solar module · Cable · Plug · Instructions
- This text is machine translated.
