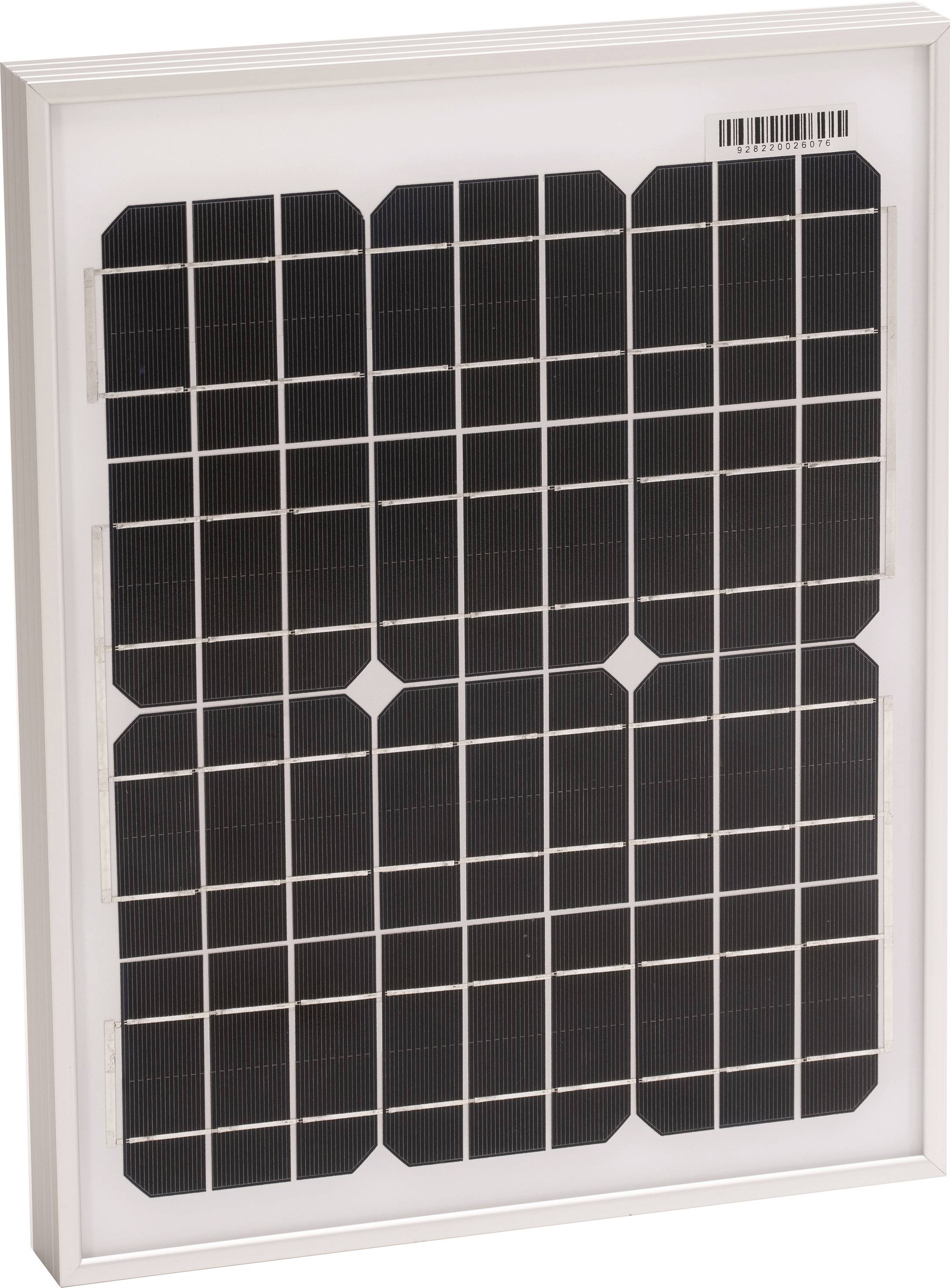

Phaesun Sun Plus Monocrystalline solar panel 10 Wp 12 V
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 42.99 / piece)
€ 42.99
incl. VAT
Only 8 Piece(s) available
Highlights & Details
Solar module Sun-Plus 10 S
- High quality finish
- High reliability
- Photovoltaic Module with back contact silicon solar cells
Technical specifications
- Standard4 connector
- Cable cross section 4 mm².
- Protection class IP65
- Temperature range -40 to +85 °C
- Product type
Monocrystalline solar panel
10 Wp
- Nominal voltage
12 V
- Dim
(L x W x H) 383 x 299 x 35 mm
- Efficiency
20.3 %
- Connector
MC-PV-4
- Weight
1.9 kg
- Short-circuit current
630 mA
- Open circuit voltage (OCV)
22 V
- Nominal current
570 mA
- Width
299 mm
- Height
35 mm
- Length
383 mm
- Voltage (max.)
17.8 V
- No. of cells
36
Documents & Downloads
Datasheet
Datasheet 2372966 Phaesun Sun Plus Monocrystalline solar panel 10 Wp 12 V
User & Safety Instructions
User & Safety Instructions 2372966 Phaesun Sun Plus Monocrystalline solar panel 10 Wp 12 V
Description
The Solar Module Sun Plus is suitable for industrial and private use. Due to the double framing with anodised aluminum, it is particularly resistant to scratching. The connection box is the same large modules and allows a user-friendly and safe installation. The crystalline cells are in low-iron oxide 3.2 mm strong crystal glass and double-layered high-resistant film.
This text is machine translated.
This text is machine translated.
Features
- Photovoltaic Module with back contact silicon solar cells
- High reliability thanks to high-quality materials
- Reduced weight
- Sturdy aluminum frame
- Tempered glass
- Wtterungsbestandig
Scope of delivery
- Solar module · Instructions
- This text is machine translated.
