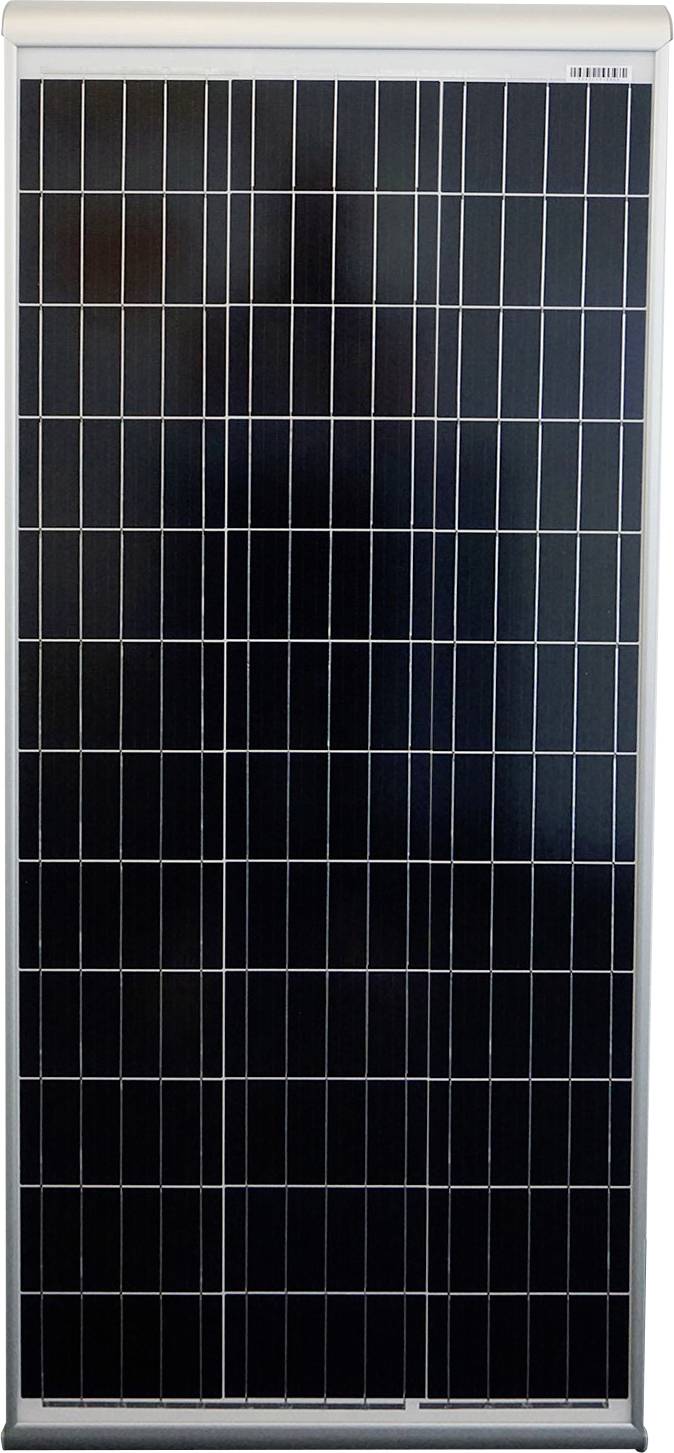

Name: Phaesun Sun-Plus 120 Aero Monocrystalline solar panel 120 Wp 12 V
Brand: Phaesun
SKU: 2369276
Availability: BackOrder

Highlights & Details

Solar module Sun Plus 120 Aero

High quality finish
High reliability
Photovoltaic Module with back contact silicon solar cells

Technical specifications

Standard4 connector
Cable cross section 4 mm².
Protection class IP65
Temperature range -40 to +85 °C

Product type: Monocrystalline solar panel

: 120 Wp

Nominal voltage: 12 V

Dim: (L x W x H) 1320 x 505 x 55 mm

Efficiency: 18 %

Connector: MC-PV-4

Weight: 10 kg

Short-circuit current: 6480 mA

Open circuit voltage (OCV): 24 V

Nominal current: 6000 mA

Width: 505 mm

Height: 55 mm

Length: 1320 mm

Voltage (max.): 20 V

No. of cells: 36

Documents & Downloads

Datasheet

Datasheet 2369276 Phaesun Sun-Plus 120 Aero Monocrystalline solar panel 120 Wp 12 V

User & Safety Instructions

User & Safety Instructions 2369276 Phaesun Sun-Plus 120 Aero Monocrystalline solar panel 120 Wp 12 V

Description

The Solar Module Sun Plus is suitable for industrial and private use. Due to the double framing with anodised aluminum, it is particularly resistant to scratching. The connection box is the same large modules and allows a user-friendly and safe installation. The crystalline cells are in low-iron oxide 3.2 mm strong crystal glass and double-layered high-resistant film.

This text is machine translated.

Features

Photovoltaic Module with back contact silicon solar cells
High reliability thanks to high-quality materials
Reduced weight
Sturdy aluminum frame
Tempered glass
Wtterungsbestandig

Scope of delivery

Solar module · Cable · Plug · Instructions
This text is machine translated.

Description

The Solar Module Sun Plus is suitable for industrial and private use. Due to the double framing with anodised aluminum, it is particularly resistant to scratching. The connection box is the same large modules and allows a user-friendly and safe installation. The crystalline cells are in low-iron oxide 3.2 mm strong crystal glass and double-layered high-resistant film.

This text is machine translated.
