Name: MEAN WELL MPM-20-3.3 AC/DC PSU (print) 3.3 V DC 4.5 A 14.9 W
Brand: MEAN WELL
SKU: 2113469
Availability: InStock

A black electronic component with the inscription 'MPM-20-12'. It indicates input and output voltage specifications.

Black rectangular power supply module with 'MPM-20-12' labelled on top, showing input voltage and output power.

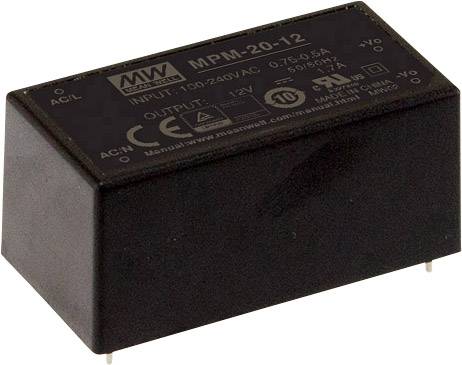

Rectangular power supply module with the label 'MPM-20-12'. Input range: 100-240V/AC, 0.75A. Certification and usage symbols visible.

1/3

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Wed 4 Nov

196 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 15.99 / piece)

€ 15.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

MEANWELL power supply series MPM Encapsulated Single Output power: 20W-20 Medical

Output 3.3 V DC / 4.5 A
Power 14.9 W
Pins

Technical specifications

Product type: AC/DC PSU (print)

Input voltage (max.): 264 V AC

Max. output current: 4.5 A

Output current (max.) - rounded: 4.5 A

Min. input voltage: 80 V AC

Dim: (L x W x H) 52.4 x 27.2 x 24 mm

Output voltage (max.): 3.3 V DC

Connection: Pins

: 14.9 W

Input frequency: 47-440 Hz

Efficiency to: 81 %

Tolerance (output voltage): ±1,5 %

Protection class: II

No. of outputs: 1 x

Output voltage 1: 3,3 V DC

Output current 1: 4.5 A

Operating temperature (max.): +85 °C

Operating temperature (min.): -35 °C

Weight: 56 g

Type: Pulsed

Width: 27.2 mm

Height: 24 mm

Length: 52.4 mm

Residual ripple: 150 mVpp

Type: MPM-20-3.3

Compliance & Certifications

Certified by EU Garan

Variants(All information include VAT, plus shipping costs)

Output current (max.) - rounded

Output voltage (max.)

Power

MEAN WELL MPM-20-3.3 AC/DC PSU (print) 3.3 V DC 4.5 A 14.9 W

Item no:2113469

Dispatches on Wed 4 Nov

196 Piece(s)Conrad Electronic

This article

4.5 A

3.3 V DC

14.9 W

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 15.99^*

MEAN WELL MPM-15-12 AC/DC PSU (print) 12 V DC 1.25 A 15 W

Item no:2113582

Dispatches on Thu 26 Nov

Conrad Electronic

1.25 A

12 V DC

15 W

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 12.99^*

MEAN WELL MPM-15-15 AC/DC PSU (print) 15 V DC 1 A 15 W

Item no:2113492

Dispatches on Wed 4 Nov

27 Piece(s)Conrad Electronic

1 A

15 V DC

15 W

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 12.99^*

MEAN WELL MPM-15-24 AC/DC PSU (print) 24 V DC 0.63 A 15.1 W

Item no:2113628

Fast track dispatch on Mon 2 Nov

2 Piece(s)Conrad Electronic

630 mA

24 V DC

15.1 W

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 12.99^*

MEAN WELL MPM-15-3.3 AC/DC PSU (print) 3.3 V DC 3.5 A 11.6 W

Item no:2113532

Fast track dispatch on Mon 2 Nov

2 Piece(s)Conrad Electronic

3.5 A

3.3 V DC

11.6 W

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 12.99^*

MEAN WELL MPM-15-5 AC/DC PSU (print) 5 V DC 3 A 15 W

Item no:2113533

Dispatches on Tue 24 Nov

Conrad Electronic

3 A

5 V DC

15 W

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 12.99^*

MEAN WELL MPM-20-12 AC/DC PSU (print) 12 V DC 1.8 A 21.6 W

Item no:2113471

Fast track dispatch on Mon 2 Nov

7 Piece(s)Conrad Electronic

1.8 A

12 V DC

21.6 W

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 15.99^*

MEAN WELL MPM-20-15 AC/DC PSU (print) 15 V DC 1.4 A 21 W

Item no:2113625

Dispatches on Wed 4 Nov

2 Piece(s)Conrad Electronic

1.4 A

15 V DC

21 W

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 15.99^*

MEAN WELL MPM-20-24 AC/DC PSU (print) 24 V DC 0.9 A 21.6 W

Item no:2113470

Dispatches on Wed 4 Nov

349 Piece(s)Conrad Electronic

900 mA

24 V DC

21.6 W

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 15.99^*

MEAN WELL MPM-20-5 AC/DC PSU (print) 5 V DC 4 A 20 W

Item no:2113534

Fast track dispatch on Mon 2 Nov

10 Piece(s)Conrad Electronic

4 A

5 V DC

20 W

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 15.99^*

Documents & Downloads

Datasheet

Datasheet 2113469 MEAN WELL MPM-20-3.3 AC/DC PSU (print) 3.3 V DC 4.5 A 14.9 W

User & Safety Instructions

User & Safety Instructions 2113469 MEAN WELL MPM-20-3.3 AC/DC PSU (print) 3.3 V DC 4.5 A 14.9 W

Warranty Terms

Warranty Terms 2113469 MEAN WELL MPM-20-3.3 AC/DC PSU (print) 3.3 V DC 4.5 A 14.9 W

Description

Mean corrugated represents a new power supply series with high power density: in closed design for PCB mounting the series MPM. Compared with the size of the last generation-PM AND NFM-is the size of the new series only one-third, but a wider operating temperature range, a higher efficiency and lower idle power. The design of this series meets the guidelines of the IEC/EN 60601-1 of 3. Version and ANSI/AAMI IT 60601-1, meets the requirements of 2x mop and has a low leakage current (less than 80 μA). It is approved for medical equipment. The level the BF with direct patient contact. Suitable applications include medical test devices, portable medical devices and medical devices, which require an extremely low standby power consumption, etc.

This text is machine translated.
