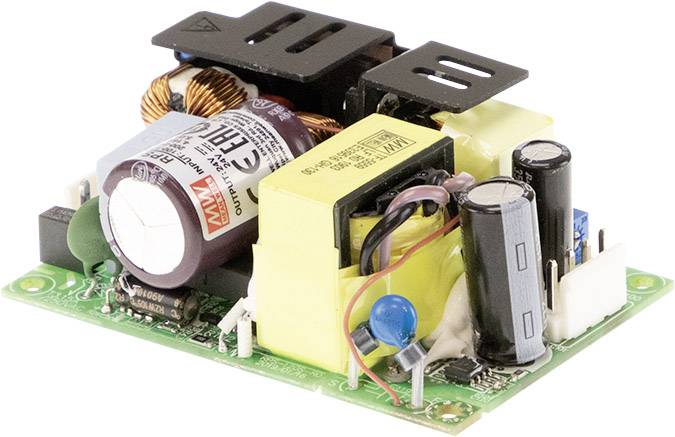

MEAN WELL RPS-120S-48 SMPSU 48 V DC 2.5 A 120 W
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 35.99 / piece)
€ 35.99
incl. VAT
Only 1 Piece(s) available
Highlights & Details
MEANWELL power supply series RPS-120S Medical open-frame Single Output Power: 120 W
- Output 48 V DC / 2.5 A
- Power 120 W
- Pin strip for nylon crimp connectors
Technical specifications
- Product type
SMPSU
- Input voltage (max.)
264 V AC
370 V DC
- Max. output current
2.5 A
- Output current (max.) - rounded
2.5 A
- Min. input voltage
80 V AC
113 V DC
- Dim
(L x W x H) 76.2 x 50.8 x 28 mm
- Output voltage (max.)
48 V DC
- Connection
Pin strip for nylon crimp connectors
120 W
- No. of outputs
1 x
- Type
open
- Weight
130 g
- Type
Pulsed
- Width
50.8 mm
- Height
28 mm
- Length
76.2 mm
- Type
RPS-120S-48
- MTBF
468000 h
- No. of inputs
1 x
- PFC
Yes
- Max. temperature
+85 °C
- Min. temperature
-30 °C
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2142573 MEAN WELL RPS-120S-48 SMPSU 48 V DC 2.5 A 120 W
User & Safety Instructions
User & Safety Instructions 2142573 MEAN WELL RPS-120S-48 SMPSU 48 V DC 2.5 A 120 W
Warranty Terms
Warranty Terms 2142573 MEAN WELL RPS-120S-48 SMPSU 48 V DC 2.5 A 120 W
Description
Features
- Compact design, 3" x 2"
- Pin strip connections for nylon crimp connectors
- Wide-range input
- Overload protection by switching off, auto recovery
- Protected against short circuit, overload, overvoltage, overheating
Hints
These power supplies are designed for installation in devices.
