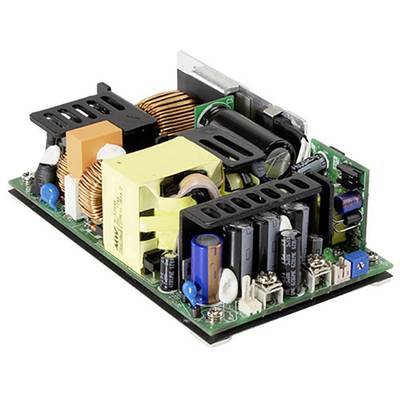

MEAN WELL RPS-500-27 SMPSU 27 V DC 11.9 A 321.3 W
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 104.99 / piece)
€ 104.99
incl. VAT
Only 2 Piece(s) available
Highlights & Details
MEAN CORRUGATED switched-mode power supply series RPS-500 Medical Single Output Power: 500 W
- Output 27 V DC / 11.9 A
- Power 321.3 W
- Pin strip for nylon crimp connectors
Technical specifications
- Product type
SMPSU
- Input voltage (max.)
264 V AC
370 V DC
- Max. output current
11.9 A
- Output current (max.) - rounded
11.9 A
- Min. input voltage
80 V AC
113 V DC
- Dim
(L x W x H) 127 x 76.2 x 40 mm
- Output voltage (max.)
27 V DC
- Connection
Pin strip for nylon crimp connectors
321.3 W
- No. of outputs
1 x
- Type
open
- Weight
460 g
- Type
Pulsed
- Width
76.2 mm
- Height
40 mm
- Length
127 mm
- Type
RPS-500-27
- MTBF
194100 h
- No. of inputs
1 x
- PFC
Yes
- Max. temperature
+70 °C
- Min. temperature
-30 °C
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2142608 MEAN WELL RPS-500-27 SMPSU 27 V DC 11.9 A 321.3 W
User & Safety Instructions
User & Safety Instructions 2142608 MEAN WELL RPS-500-27 SMPSU 27 V DC 11.9 A 321.3 W
Warranty Terms
Warranty Terms 2142608 MEAN WELL RPS-500-27 SMPSU 27 V DC 11.9 A 321.3 W
Description
Features
- Open design (open frame)
- Pin strip connections for nylon crimp connectors
- Universal input
- 320 W with free air convection, 500W with 25 CFM forced ventilation
- Overload protection by switching off, auto recovery
- Protected against short circuit, overload, overvoltage, overheating
- Low idle power (by PS-ON function)
- Stand-by: 5V/0.6A
- Internal auxiliary voltage 12 V/0.5A
- LED display for switching on
Hints
These power supplies are designed for installation in devices.
