MEAN WELL RSP-1500-12 SMPSU 12 V DC 125 A 1500 W
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 495.00 / piece)
€ 495.00
incl. VAT
Only 7 Piece(s) available
Highlights & Details
Switching power supply case
- Output 12 V DC / 125 A
- Power 1500 W
- Screw terminal
Technical specifications
- Product type
SMPSU
- Input voltage (max.)
264 V AC
- Max. output current
125 A
- Output current (max.) - rounded
125 A
- Min. input voltage
90 V AC
- Dim
(L x W x H) 278.00 x 127.00 x 83.50 mm
- Output voltage (max.)
12 V DC
- Connection
Screw terminal
1500 W
- No. of outputs
1 x
- Type
closed
- Weight
2925.00 g
- Type
Synchronised
- Width
127.00 mm
- Height
83.50 mm
- Length
278.00 mm
- Type
RSP-1500-12
- Output current (min.)
0 A
- Output voltage (min.)
12 V DC
- No. of inputs
1 x
- Output voltage
12 V DC
- Output current (details)
125 A
- UKCA
yes
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 1292943 MEAN WELL RSP-1500-12 SMPSU 12 V DC 125 A 1500 W
User & Safety Instructions
User & Safety Instructions 1292943 MEAN WELL RSP-1500-12 SMPSU 12 V DC 125 A 1500 W
Information
Information 1292943 MEAN WELL RSP-1500-12 SMPSU 12 V DC 125 A 1500 W
Warranty Terms
Warranty Terms 1292943 MEAN WELL RSP-1500-12 SMPSU 12 V DC 125 A 1500 W
Description
Enclosed case, built-in fan, screw terminals · Universal input · Overload protection, current limiting, hiccup after 5s · Protections: short circuit/over load/over voltage · Built-in active PFC function · Low profile · Parallel function · Active current sharing up to 6000W (3+1 units) · Built-in remote On/Off control · Power fail signal · Built-in remote sense function · Built-in auxiliary power 12V/0,1A
Features
- Closed design (case) with fan, screw terminals
- Universal input
- Overload protection through current limitation, switching off after 5 s
- Protected against short circuit, overload, over voltage
- Built-in PFC circuit
- low-height;
- Parallel function
- Active power distribution of up to 6000 W (3+1 power supplies)
- Switching on and off of the output voltage via remote signal
- Power-fail signal
- Sensor connection for correct voltage at the load
- Internal auxiliary voltage 12 V/0.1A
Frequently Bought Together
(*All information is plus legal VAT)Total price:
€ 495.44*

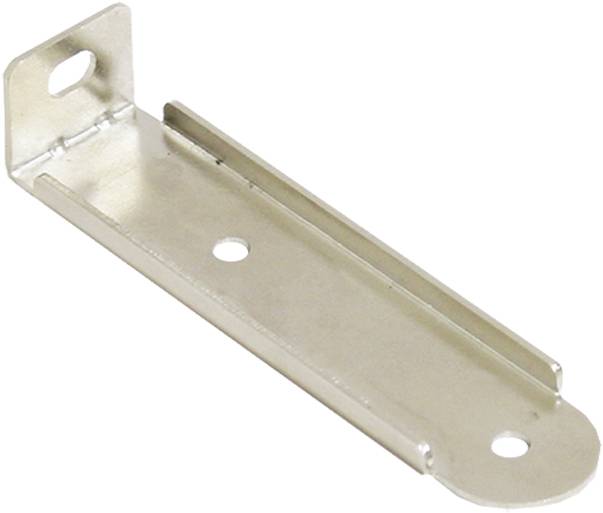

Accessories
