Name: Megger PAT250SX-EU PAT Equipment tester set VDE standard 0701-0702
Brand: Megger
SKU: 3404963
Availability: BackOrder

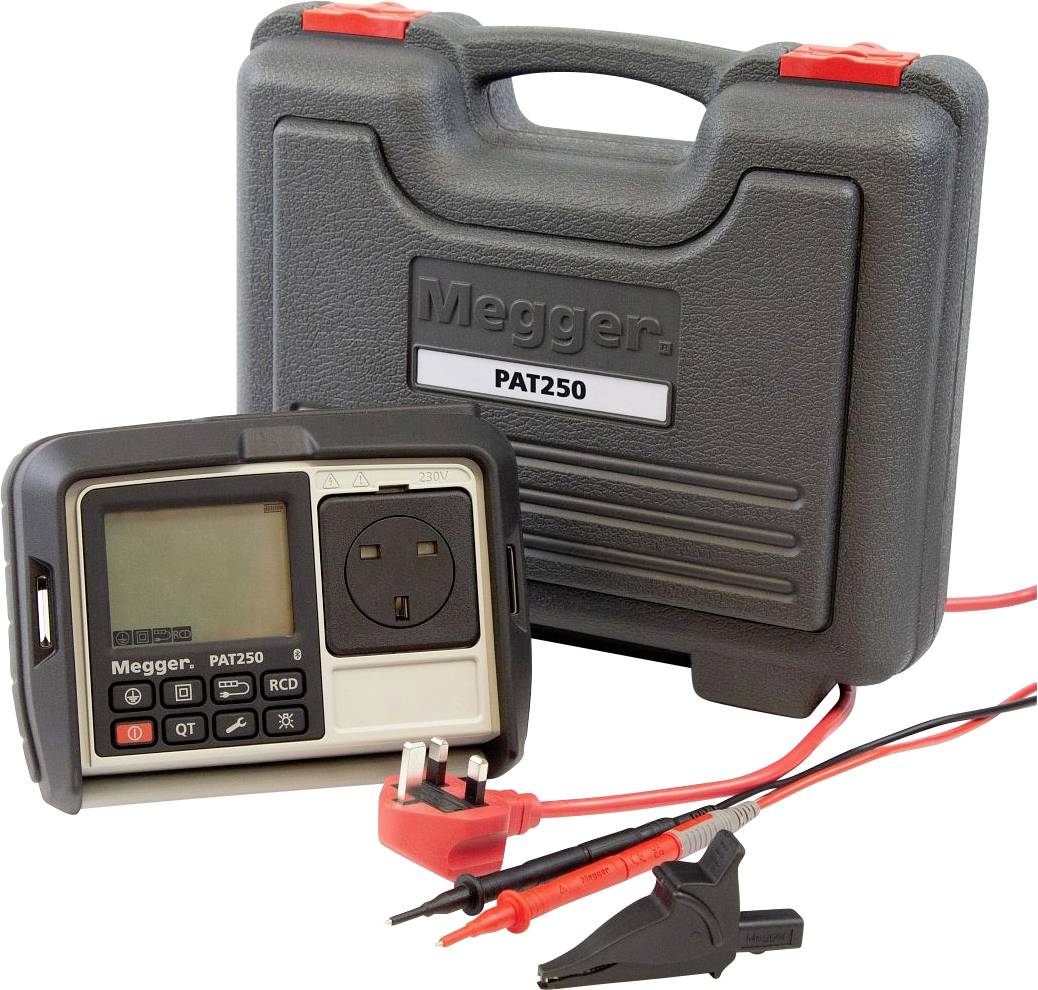

A portable testing device with cables and clips used for electrical safety checks. In the background, a grey case.

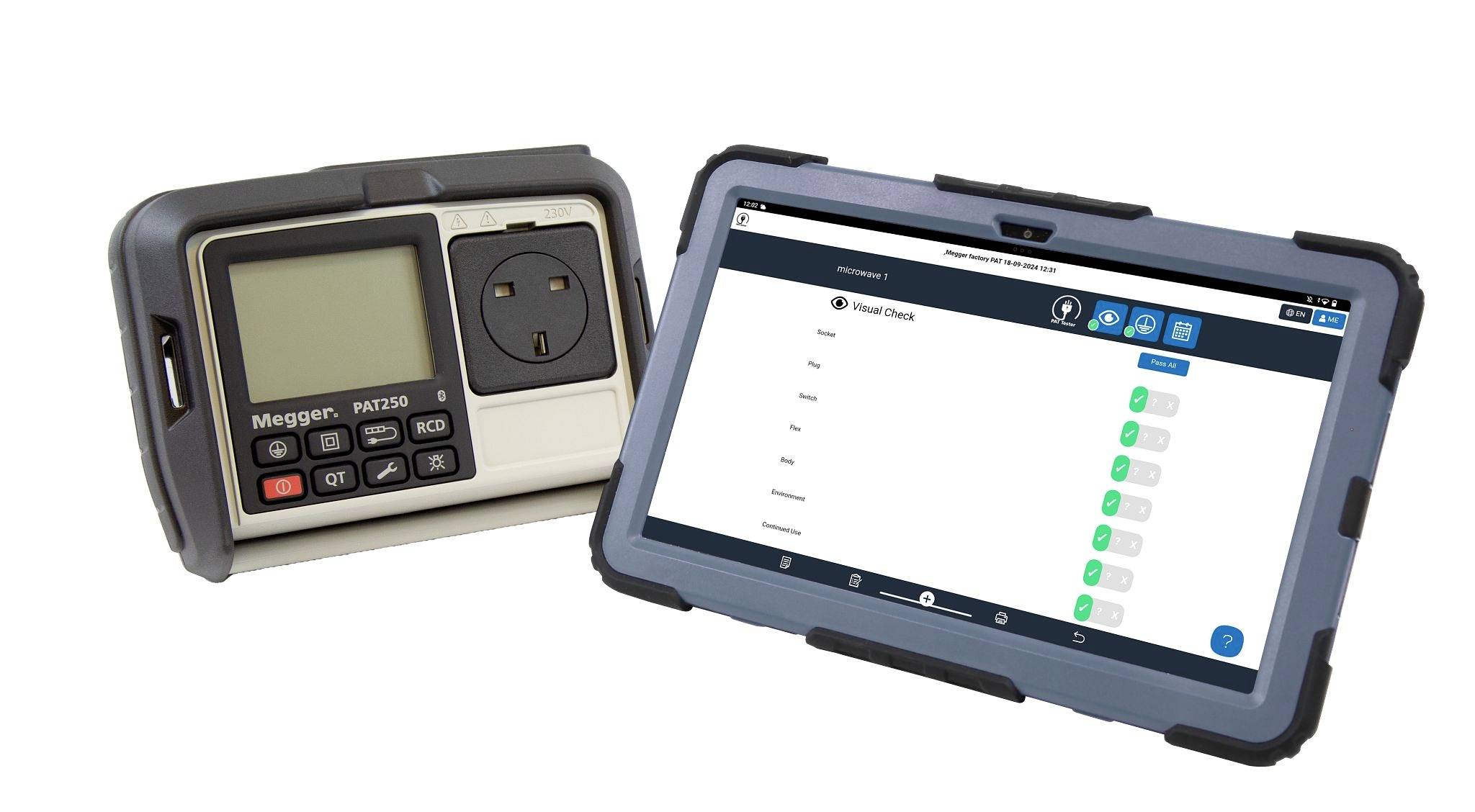

'Electrical testing device and tablet. The testing device has a screen and power sockets. The tablet displays the results of a safety inspection.'

1/2

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Wed 4 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 1,475.00 / piece)

€ 1,475.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Tester for portable devices with Bluetooth® cable-bound EU version

Substitute leakage current testing
Continuity check 200 mA
Test check by CertSuite PAT
Battery/rechargeable battery with charging option
Fast testing and reporting
Store results in the cloud and quickly create reports
Simple "tick or cross" display for passed or failed
Testing of mobile RCDs with mains supply or 10 mA or 30 mA
250 V insulation and leakage current testing for secure IT-testing and devices with surge protection
Robust rubber housing with integrated front cover and low weight for mobility

Technical specifications

Product type: Equipment tester set

: Manufacturer's standards (no certificate)

Reading category: CAT II 300 V

Interfaces: none

Dim: (L x W x H) 203 x 148 x 78 mm

Weight: 1300 g

: IP40

Reading range (VDE): Earth resistance
Earth leakage resistance
Insulation resistance
Touch voltage
Earth leakage current
Leakage current

DIN standard: DIN VDE 0701-0702

Display type: Digital (LCD)

Width: 148 mm

Height: 78 mm

Length: 203 mm

Test procedure: automated

Voltage supply: Battery

Memory: No

Type: PAT250SX-EU PAT

VDE standard: 0701-0702

Features: RCD/FI testing
incl. software

Documents & Downloads

Datasheet

Datasheet 3404963 Megger PAT250SX-EU PAT Equipment tester set VDE standard 0701-0702

User & Safety Instructions

User & Safety Instructions 3404963 Megger PAT250SX-EU PAT Equipment tester set VDE standard 0701-0702

Description

The PAT250 Series Portable Testers enable easy and fast security testing in all environments, including offices, shops and business units. Its robust, reliable functionality is Ideal for training companies with Hohem throughput and intensive courses.

With rubberized casing and hardened, scratch-proof glass the PAT250 is an exceptionally robust device.
Battery operation makes the PAT250 perfect for places that do not have a difficult or unreliable power supply, especially building sites
And warehouses. The PAT250 Series meets all UK and European electrical safety testing requirements.
