Mercusys Powerline Wi-Fi expansion module MP500 KIT 1000 MBit/s
EAN:
Part number:
Item no:
Number
Total (€ 31.92 / piece)
€ 31.92
plus VAT.
Only 2 Piece(s) available

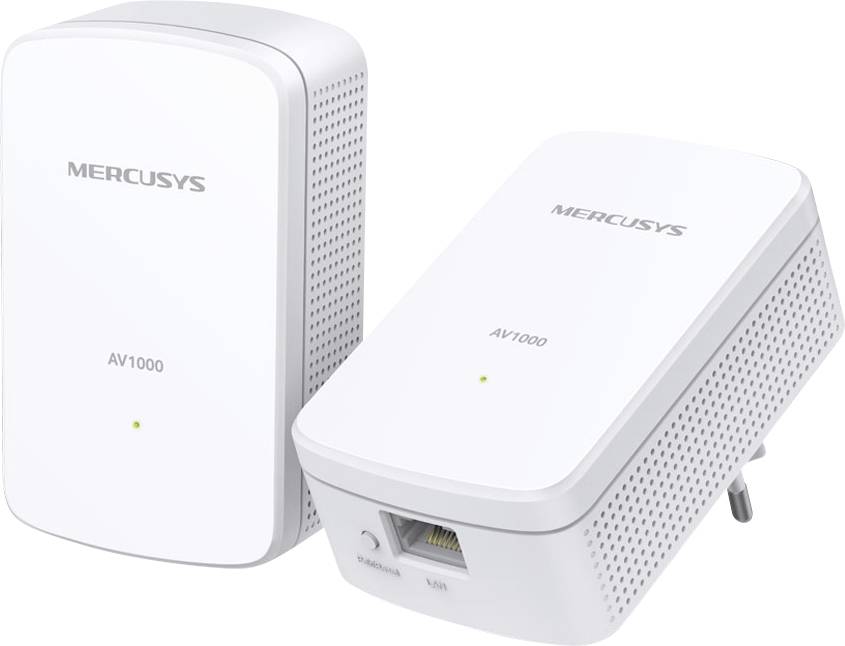

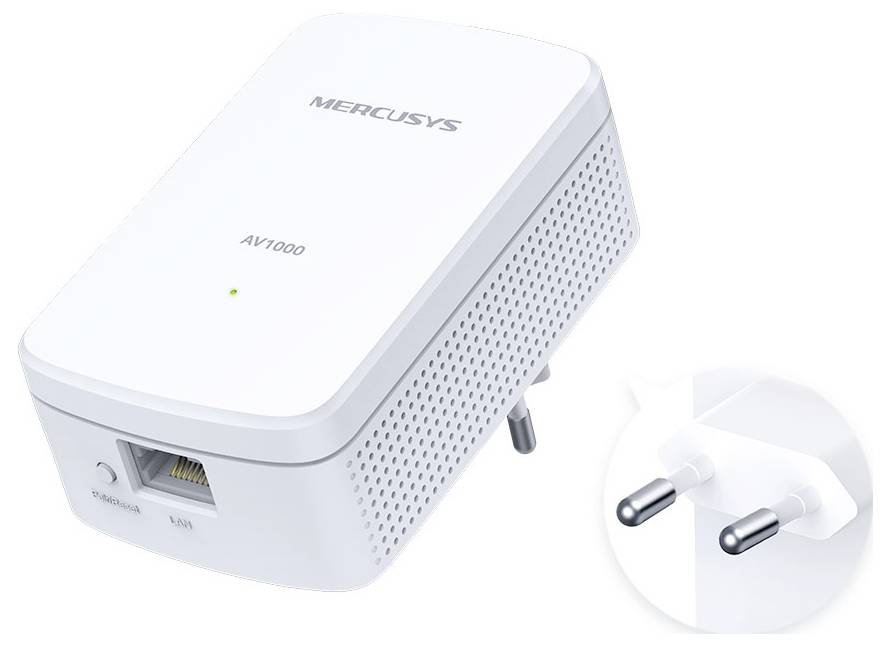

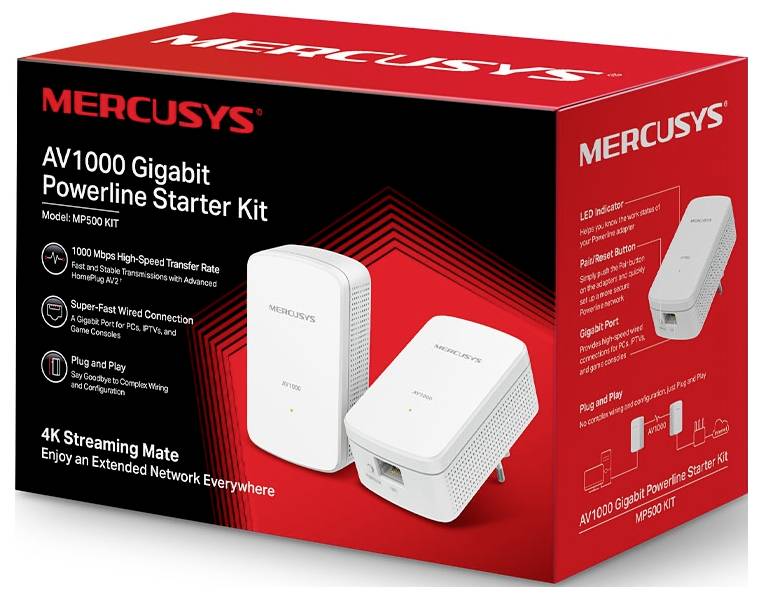

Mercusys AV1000 Gigabit Powerline Starter Kit
Highlights & Details
- 1000 Mbit/s 300 m
- Gigabit Ethernet
- Wi-Fi 4 (802.11n)
- White
Technical specifications
- Maximum data transfer rate of 1000 Mbit/s.
- WLAN standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)
- Product type
Powerline Wi-Fi expansion module
- Powerline data transfer rate
1000 MBit/s
- Width
101 mm
- Height
36 mm
- Depth
60 mm
- Operating current
2.35 W
- Standby current consumption
0.64 W
- Factory colour
White
- 10/100/1000 Mbps ports
1 x
- Power supply (details)
220 V
- Safety
128-bit AES
- Wi-Fi
No
- Operating temperature (T-T)
0 - 40 °C
- Built-in power socket
no
- Encryption button
yes
- Ethernet LAN
yes
- Storage relative humidity (H-H)
5 - 90 %
- Maximum operating distance
300 m
- Quantity per pack
2 Stück(e)
- Manual
yes
- Quick installation guide
yes
- Operating relative humidity (H-H)
10 - 90 %
- Storage temperature (T-T)
5 - 90 °C
- Plug and Play
yes
- Mac compatibility
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3533224 Mercusys Powerline Wi-Fi expansion module MP500 KIT 1000 MBit/s
Description
4K streaming partner
Enjoy an extended network everywhere
Where there is a socket, there is a network.
The MP500 kit transmits network data over existing electrical circuits to avoid the negative effects of obstacles on the network. Enjoy a stable, extended network with a transmission range of up to 300 meters (on the same circuit). Perfect for 4K streaming, online gaming and graphics-intensive applications.
Dual gigabit transmission: Fast. Without limits. Can be eaten.
With the advanced HomePlug AV2 technology the maximum Powerline transfer rate reaches an impressive 1000 Mbit/s. The Gigabit port provides a high-quality network via each socket.
Plug-and-Play

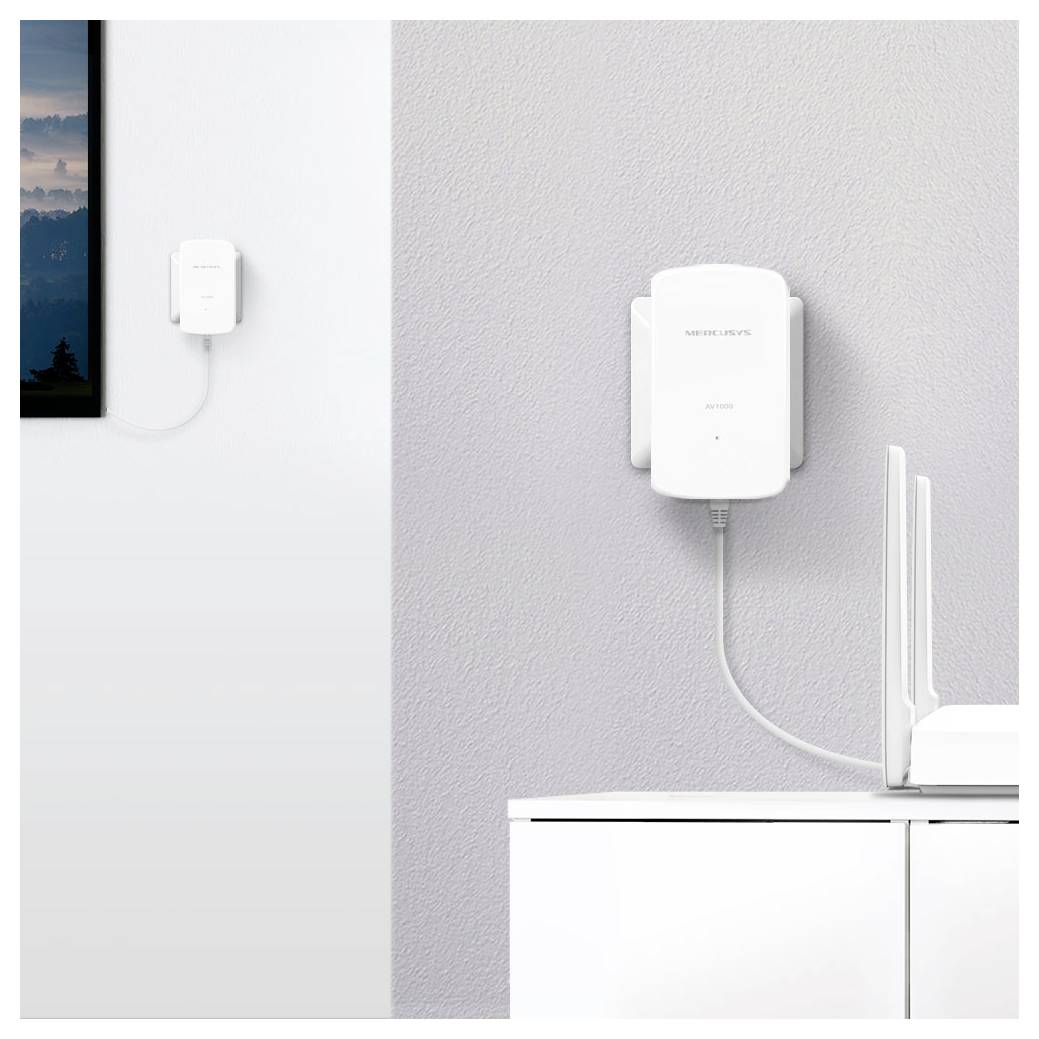

As soon as you connect a device, you can expand your network immediately without complicated cabling and configuration. Simply connect one MP500 adapter to your router and plug another into a socket, where you need wired Internet.
Easy toexpand
In case a typical 2-kit is not enough, simply add further Powerline adapters to expand your network in every room.
This text is machine translated.
Features
- 1000 Mbps high-speed transfer rate – fast and stable transmissions with advanced HomePlug AV2
- Super fast wired connection - One Gigabit port offers high-speed Internet for PCs, IPTVs and games consoles
- Plug & Play - no cabling and configuration required - simply plug in
- Easy expansion - Expand the coverage by simply adding more Powerline adapters
Scope of delivery
- 2x Powerline Ethernet Adapter (set), 2m Ethernet cable (RJ45), quick start guide for installation
Hints
CE, RoHS
System requirements
- Existing modem router and an Internet connection
