Buy Metabo 610216000 Chopsaw 216 mm 30 mm 1100 W

Metabo miter saw with blade guard, angle adjustment base, and dust bag on a white background.

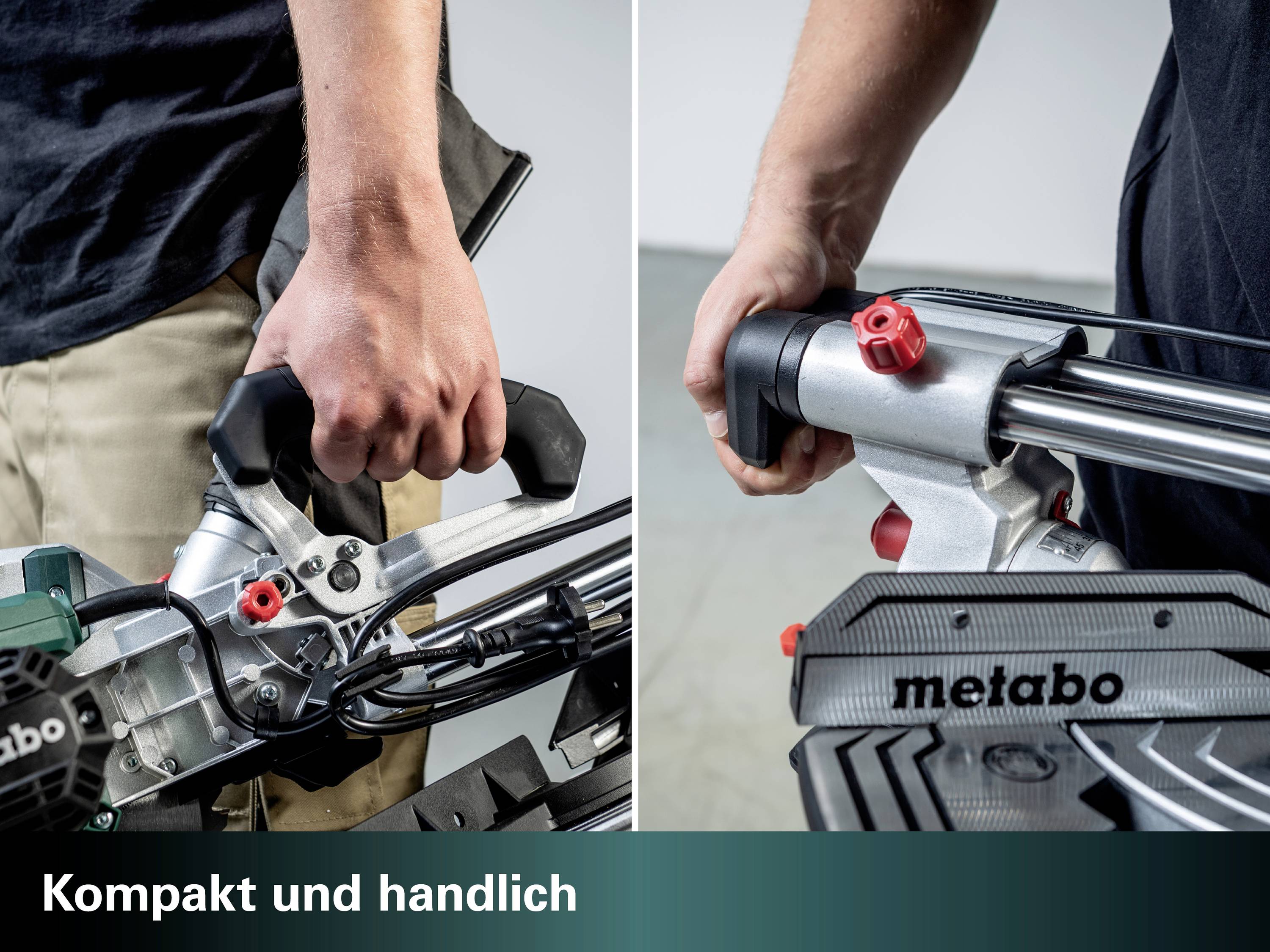

Two images of a hand-held circular saw that is compact and can be operated with one hand. The text reads 'Compact and handy'.

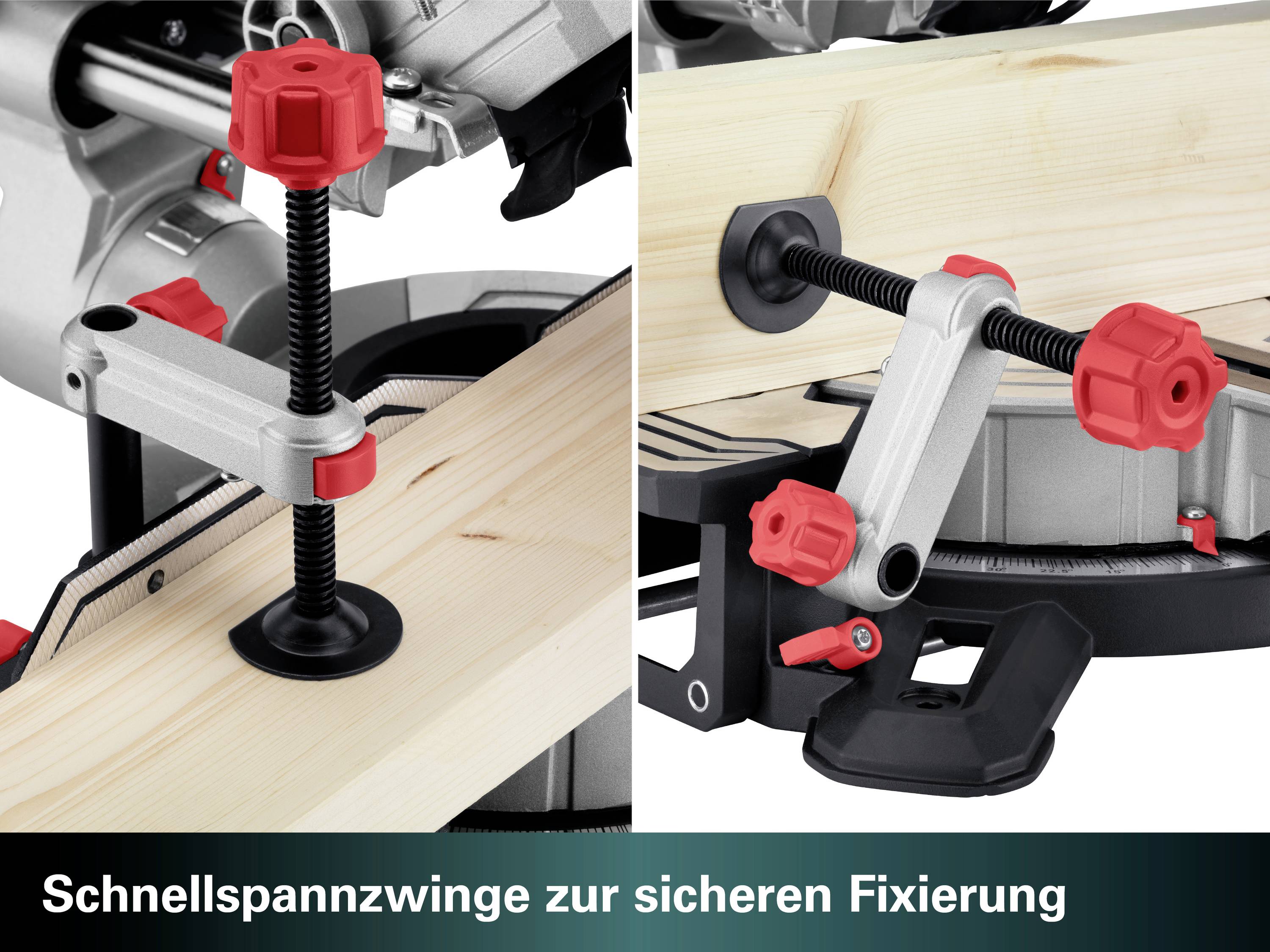

Quick-release clamp securely fixing wood on a saw. Left: detailed view of clamp, right: application on mitre saw.

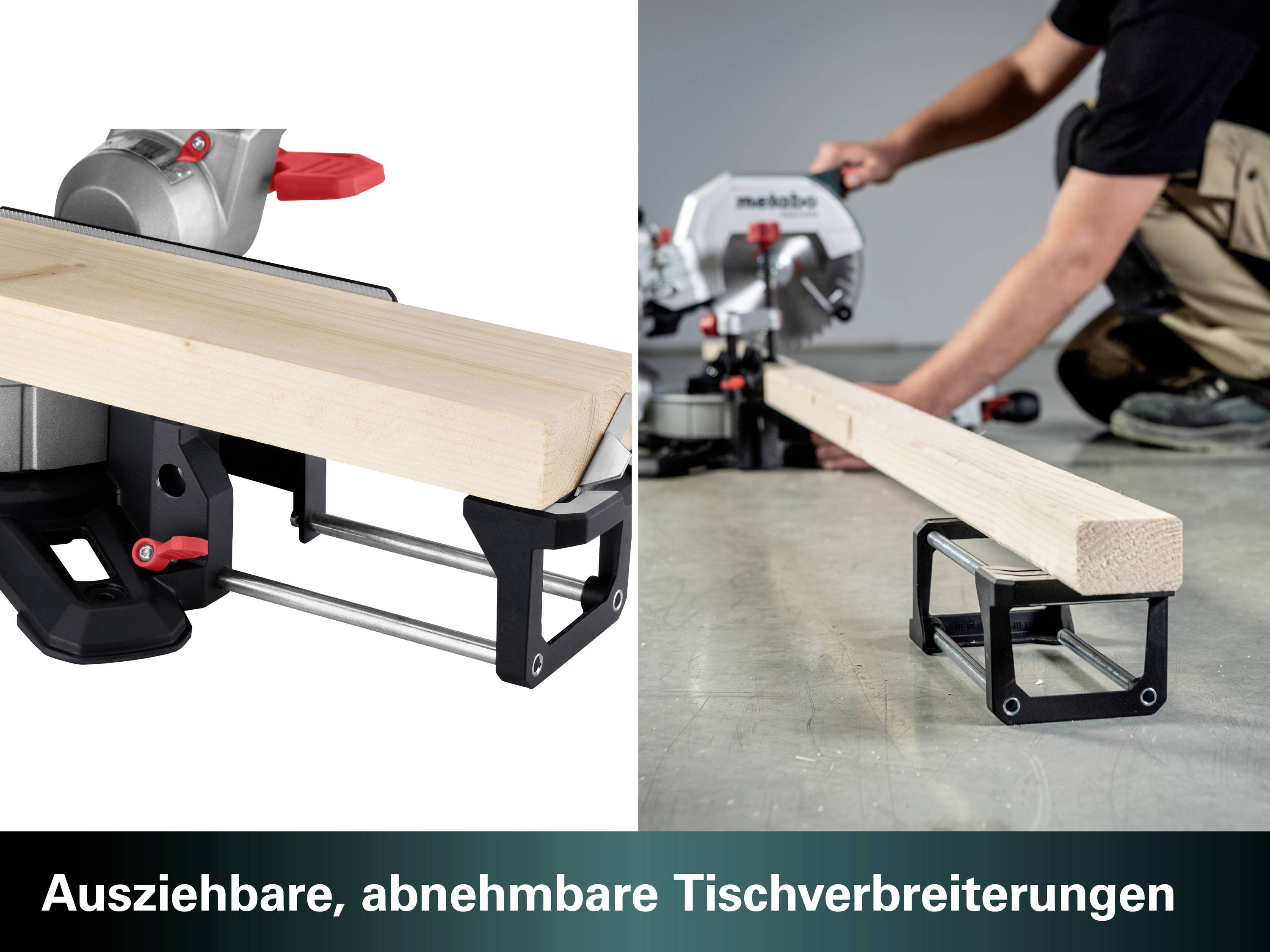

'Metabo' mitre saw with long wooden piece, adjustable table extensions. Text: 'Extendable, removable table wideners'.

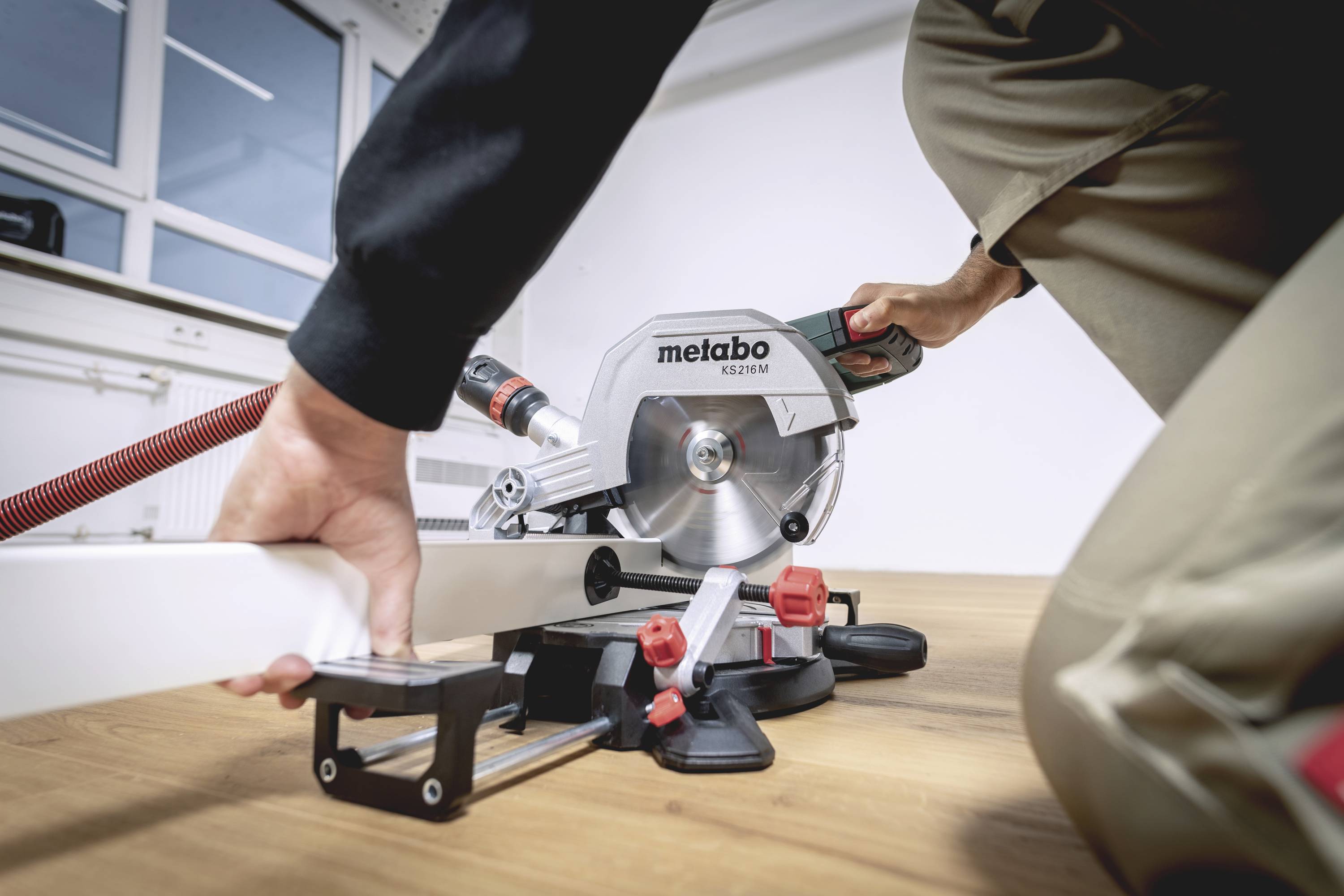

A person is cutting a piece of wood with a Metabo mitre saw inside a room. The saw is connected to a dust extraction system.

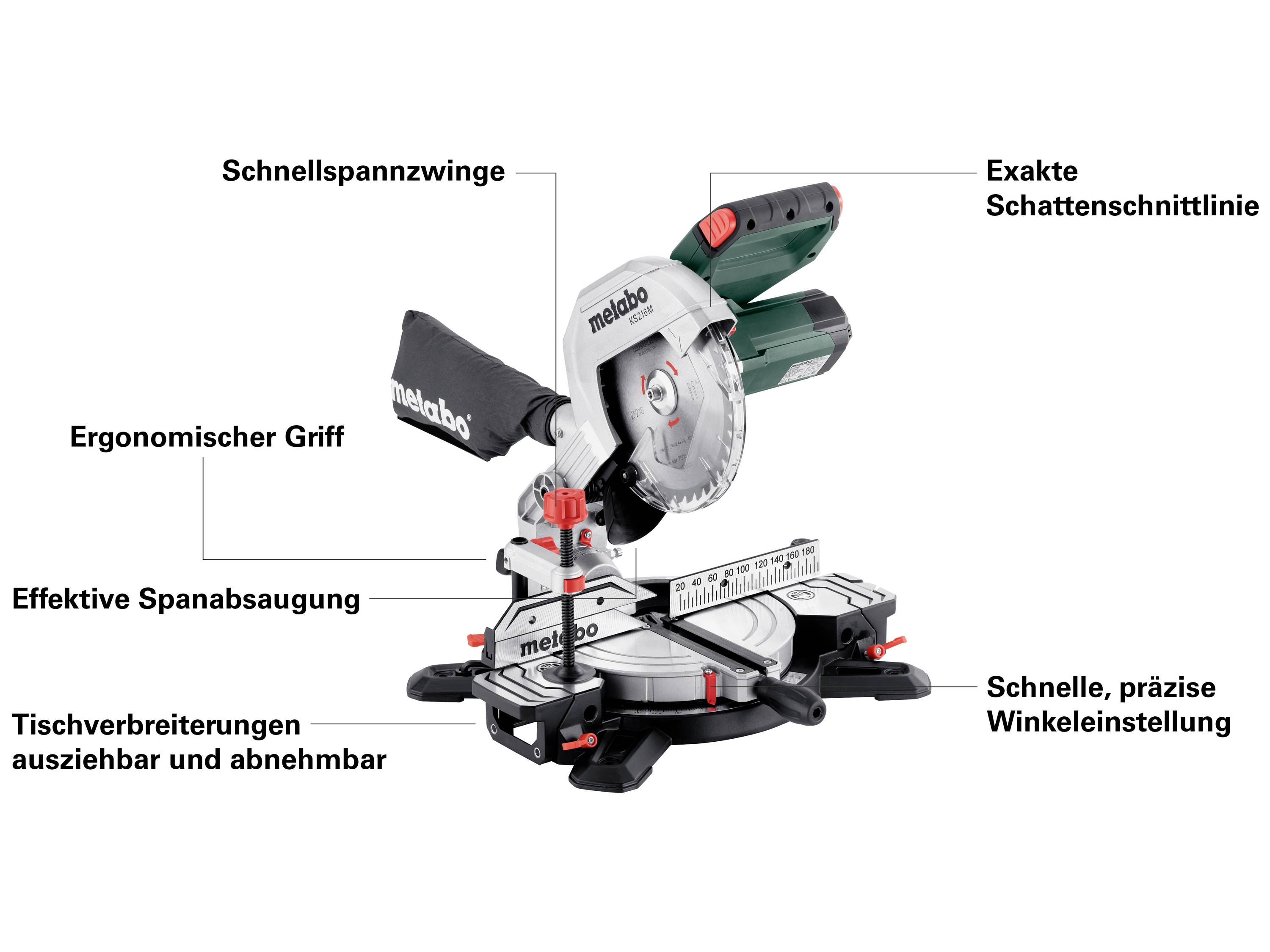

Mitre saw with ergonomic handle, effective dust extraction, quick-release clamp, precise shadow cutting line and table extensions.

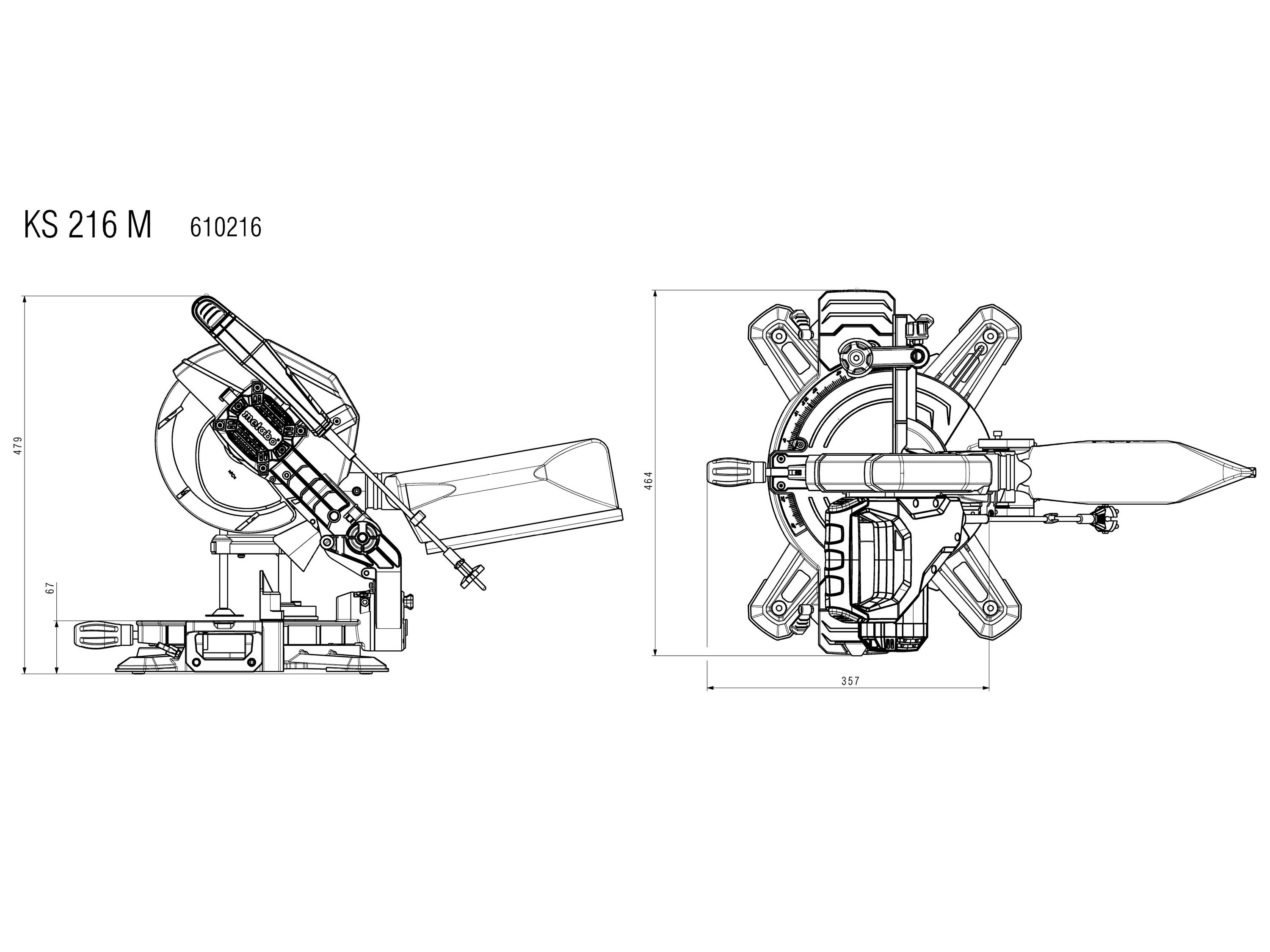

Technical drawing of a machine with side and top views, dimensions, and model number 'KS 216 M'.

1/7

Datasheet (PDF)

Fast track dispatch on Tue, 15 Sep

40 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 126.04 / piece)

€ 126.04

plus VAT.

Report legal concerns

Highlights & Details

KS 216 M chopsaw

1100 W
Cutting depth (max.) (45°/ 90° ): 40 mm/60 mm

Technical specifications

Supporting surface 155 x 725 mm
Max. Cutting width 90°/45° 120/80 mm
Cutting capacity 90°/90° 120 x 60 mm
Cutting capacity 45°/45° 80 x 45 mm
Turntable setting left/right: 47 / 47 °
Saw-blade inclination left/right: 47 / 2 °
Rated power S1 100% 1100 W
Rated power S6 20% 1350 W
Speed at rated load 3800 rpm
Cuting speed 57 m/s
Cable length: 2 m

Saw blade diameter: 216 mm

Bore Ø: 30 mm

: 1100 W

Cutting depth (max.) (45°): 40 mm

Cutting depth (max.) (90°): 60 mm

Dim: (L x W x H) 477 x 463 x 490 mm

Length: 477 mm

Width: 463 mm

Height: 490 mm

Weight: 8.7 kg

Content: 1 pc(s)

Idle speed: 5000 U/min

UKCA: yes

Product type: Chopsaw

Documents & Downloads

Datasheet

Datasheet 2943867 Metabo 610216000 Chopsaw 216 mm 30 mm 1100 W

User & Safety Instructions

User & Safety Instructions 2943867 Metabo 610216000 Chopsaw 216 mm 30 mm 1100 W

Description

Compact lopping and miter saw from the mobile M-Class - light, precise, user-friendly. Precision Cut Line (PCL): Exact shadow cutting line without adjusting by cleverly placed LED.

This text is machine translated.

Features

Turntable with fast, precise setting of common angles via locking points
Saw-blade inclination of -2 to 47°, as such suitable for rear-cuts
Robust design made of die-cast aluminum for the toughest requirements
Effective chip-suction via the integrated chip-collection funnel
Detachable table extensions, also detachable for placing extremely long work pieces
Quick clamp to securely fix the work piece from above or from the front
All scales and control elements can be viewed and used intuitively from the working position
Ergonomic grip for one or both-handed carrying
